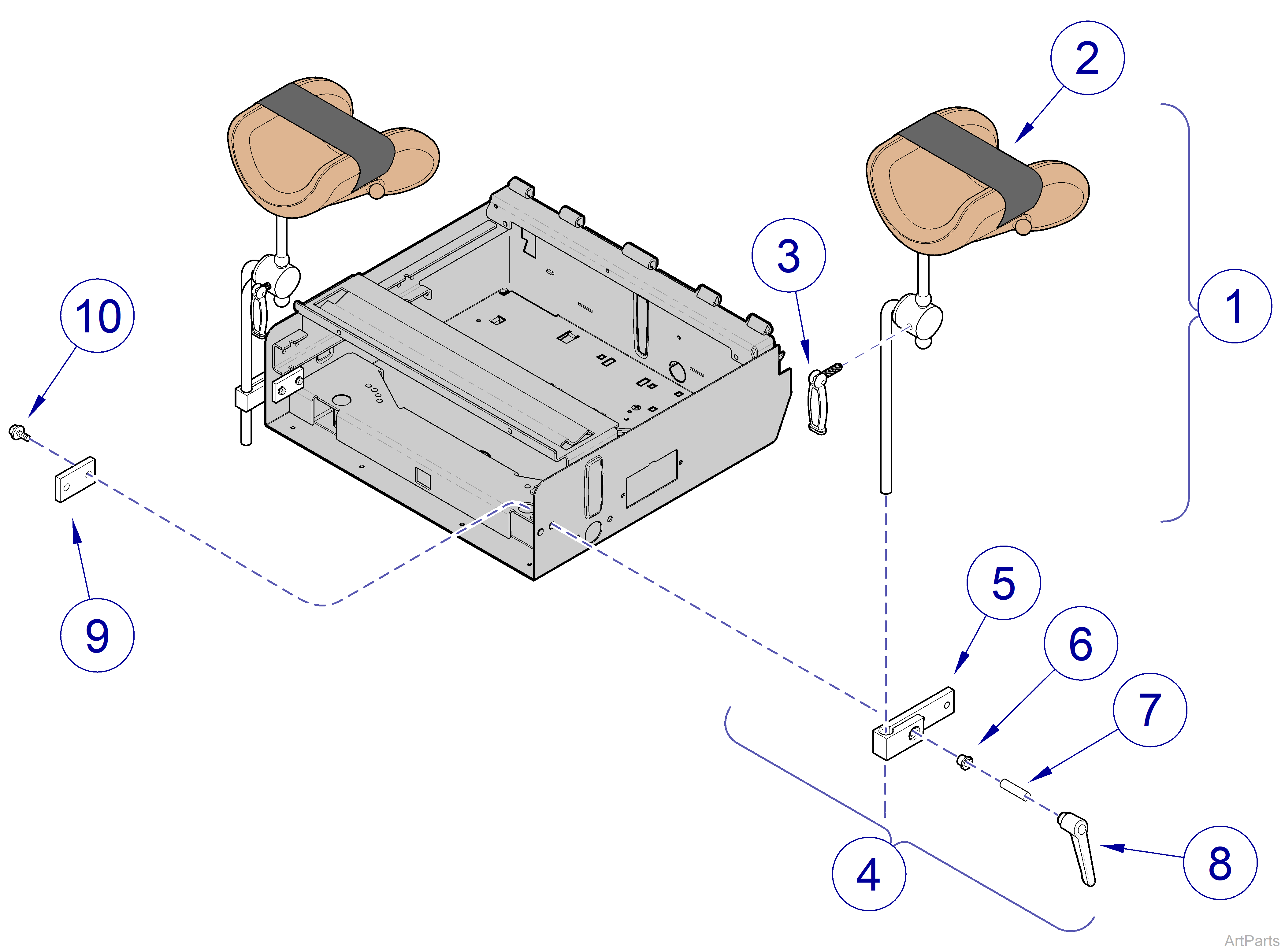

9A353001 Articulating Knee Crutches w/Brackets
Accessory Number | 9A353001 |
| Serial Number | All |
| Used with Models | 204/604/222-015 thru -017/223-015 thru -016/623-009 thru -011 |
| 9A353001 Articulating Knee Crutches w/Brackets | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
1 | 029-1842-00 | Articulating Knee Crutches - pair - includes items 2 and 3 | 1 |
2 | 053-0105-34 | Strap | 2 |
3 | 016-0605-00 | Handle | 2 |
4 | 9A352003 | Clamp and Bracket Kit - pair - includes items 5 thru 10 | NLA |
5 | 051-1097-00 | Knee Crutch External Clamp | 2 |
6 | 053-0114-00 | Flange Bearing | 2 |
7 | 042-0189-00 | Milled Stud | 2 |
8 | 016-0826-00 | Adjustable Handle | 2 |
9 | 051-1092-00-216 | Clamp Block | 2 |
10 | 040-0375-00 | Bolt | 4 |
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number | |||
