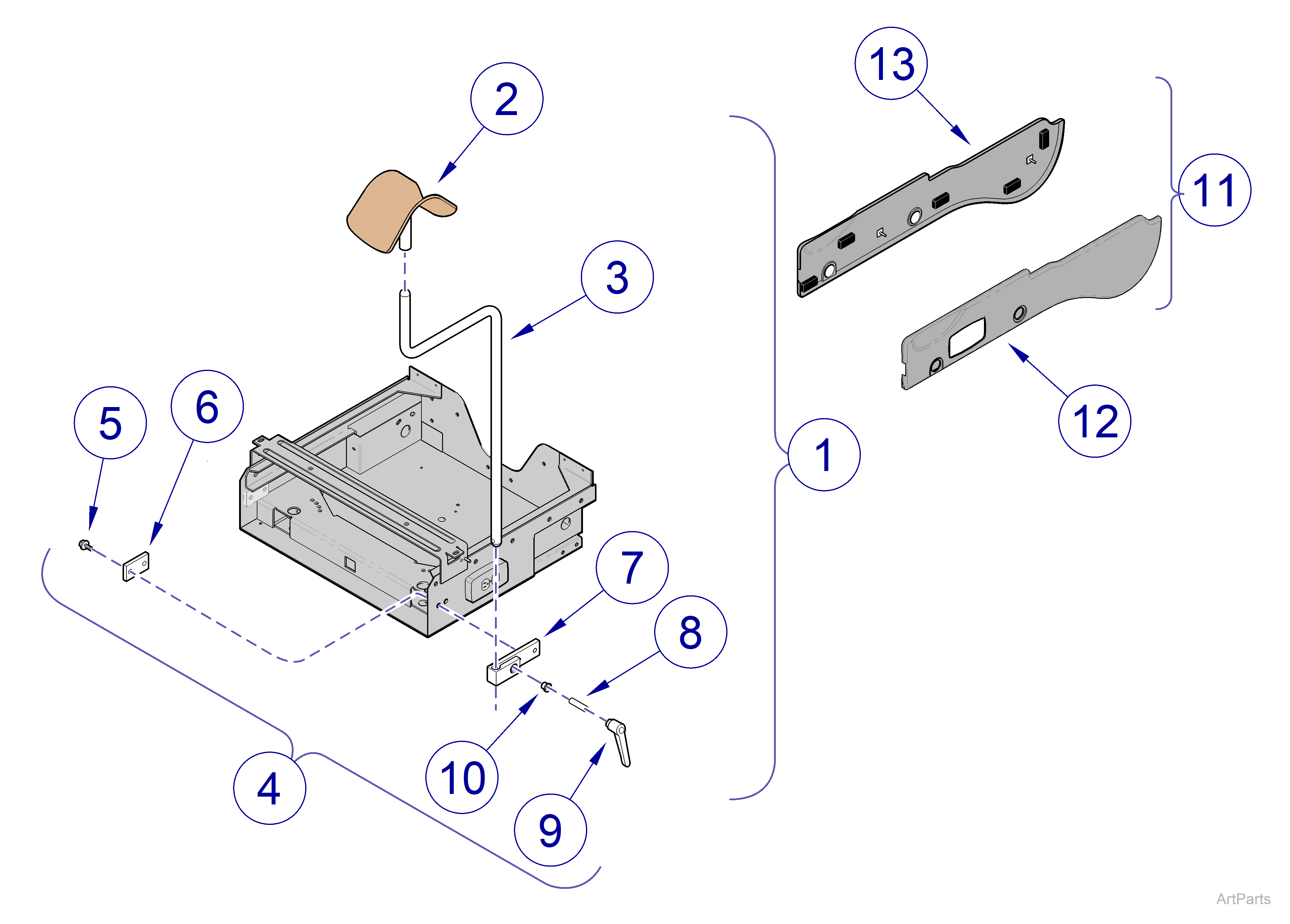

9A36100x Knee Crutches / Brackets / Cladding
|
Accessory Number |
9A36100x |
| Serial Number | All |
| Used with Models | 204/604/222-015 thru -017/223-015 thru -016/623-009 thru -011 |
| 9A36100x Knee Crutches / Brackets / Cladding | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A361002 |
Knee Crutches w/Brackets - pair - includes items 2 thru 4 |
NLA |
|
2 |
029-0053-01 | Knee Pad | 2 |
|
3 |
057-0332-00 | Support Bar | 2 |
|
4 |
9A361003 |
Clamp and Bracket Kit - pair -includes items 5 thru 10 |
NLA |
|
5 |
040-0375-00 | Bolt | 2 |
|
6 |
051-1105-00-216 | Clamp Block | 2 |
|
7 |
051-1097-00 | External Clamp | 4 |
|
8 |
042-0189-00 | Milled Stud | 2 |
|
9 |
016-0826-00 | Adjustable Handle | 2 |
|
10 |
053-0114-00 | Flange Bearing | 2 |
|
11 |
622 / 623 Knee Crutch Cladding Kit - pair - includes items 12 and 13 | ||
|
9A361005 |
Knee Crutch Cladding Kit w/ receptacle cutout on LH cover |
NLA |
|
| Knee Crutch Cladding Kit w/no receptacle cutout |
NLA |
||
|
12 |
LH Cladding Options | ||
|
029-6164-04-271 |
LH Cladding w/ receptacle cutout - shown |
NLA |
|
|
029-6164-05-271 |
LH Cladding w/no receptacle cutout |
NLA |
|
|
13 |
029-6164-03-271 |
RH Cladding w/cutout |
NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
