9A362001 Articulating Knee Crutches w/Brackets
|
Accessory Number |
9A362001 |
| Serial Number | All |
| Used with Models | 204/604/222-015 thru -017/223-015 thru -016/623-009 thru -011 |

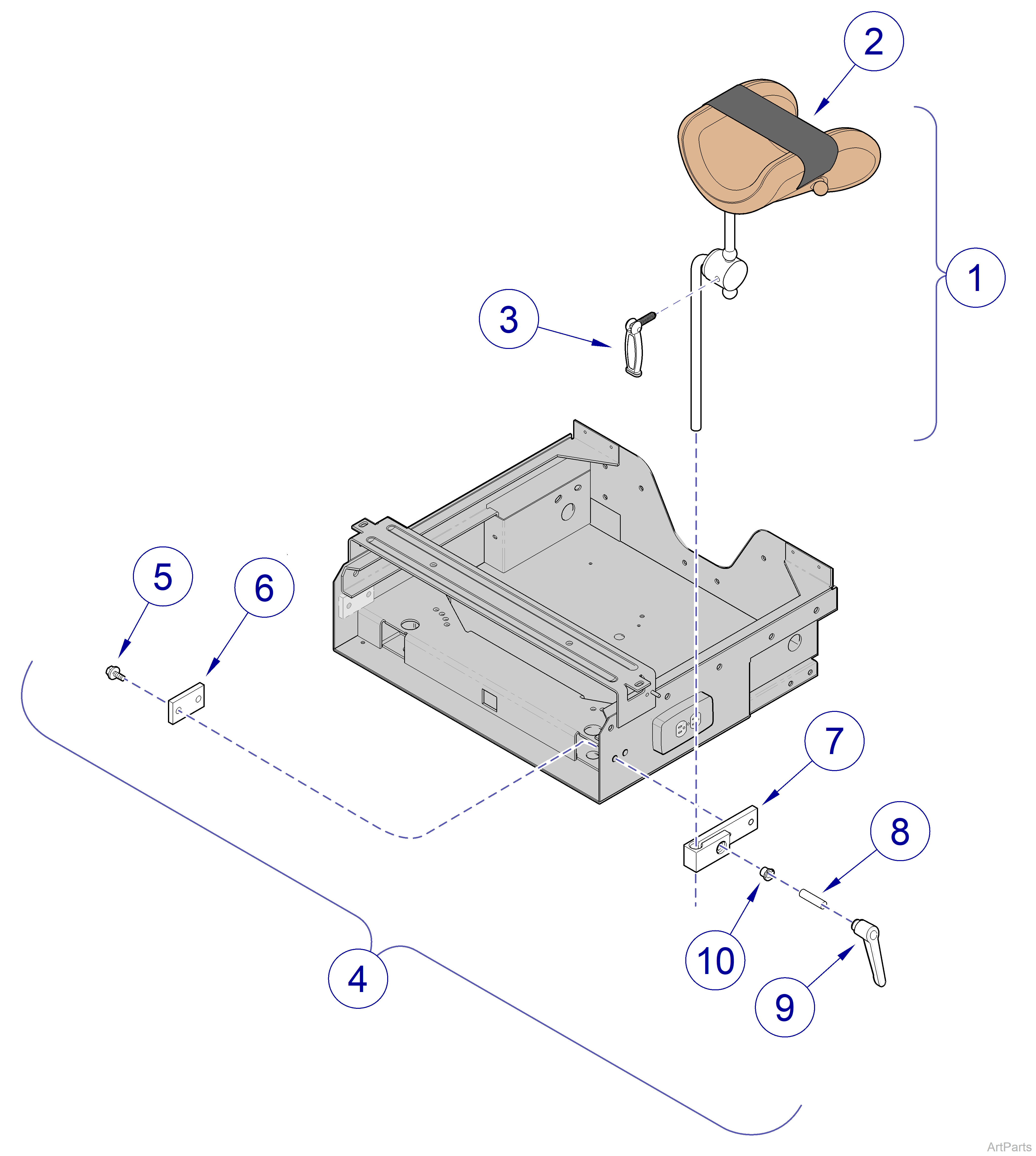

| 9A362001 Articulating Knee Crutches w/Brackets | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-1842-00 | Articulating Knee Crutches - pair - includes items 2 and 3 | 1 |
|
2 |
053-0105-34 | Hook and Loop Fastener Strap | 2 |
|
3 |
016-0605-00 | Handle | 2 |
|
4 |
9A361003 |
Clamp and Bracket Kit - pair -includes items 5 thru 10 |
NLA |
|
5 |
040-0375-00 | Bolt | 4 |
|
6 |
051-1105-00-216 | Clamp Block | 2 |
|
7 |
051-1097-00 | External Clamp | 2 |
|
8 |
042-0189-00 | Milled Stud | 2 |
|
9 |
016-0826-00 | Adjustable Handle | 2 |
|
10 |
053-0114-00 | Flange Bearing | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
