Midmark® Monitor Mount Upper Mount Assembly
Serial Number Range: V1068237 to V1366386
|
Accessory Number |
8008-004, -006 |
| Serial Number | V1068237 to V1366386 |
| Used with Models |
8013, 8014, 8015, 8019 and 8020 |
| Midmark® Monitor Mount Upper Mount Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0250-17 | 1/4-20 x 1 1/4 Hex Socket Flat Head | 2 |
|
2 |
029-5390-01 | Receiver Plate | 1 |
|
3 |
050-8312-00 | Plate Spacer | 1 |
|
4 |
002-1797-00 | Tilt Block Assembly Kit - includes item #5 Pivot Pin, Threaded, Tilt Block Pivot Pin, Tilt Block | 1 |
|
5 |
002-1798-00 | Tilt Block Screw Kit 1/4-20 x 2 1/2 - includes Lock Adhesive - not shown | 1 |
|
6 |
052-0754-00-312 | Swivel / Tilt Coupler | 1 |
|
7 |
016-0076-07 | DU Bearing .500 ID x .594 OD x .875 Long | 1 |
|
8 |
045-0001-159 | Nylon 6/6 Washer 1/2 .530 ID x 1.25 OD x .09 | 1 |
|
9 |
62400318 | Hex Nut 5/8-18 | 1 |
|
10 |
057-1226-00 | Mounting Stud 15” Long | 1 |
|
11 |
65952700 | 1/4” Flat Washer | 1 |
|
12 |
040-0250-79 | Screw 1/4-20 x 5/8 Hex Socket | 1 |
|
13 |
041-0250-01 | Nut NyLock Hex 1/4-20 CD, ZN | 1 |
|
14 |
040-0250-97 | Flat Head Hex Socket 1/4-20 | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1366387 to Present
|
Accessory Number |
8008-004, -006 |
| Serial Number | V1366387 to Present |
| Used with Models |
8013, 8014, 8015, 8019 and 8020 |

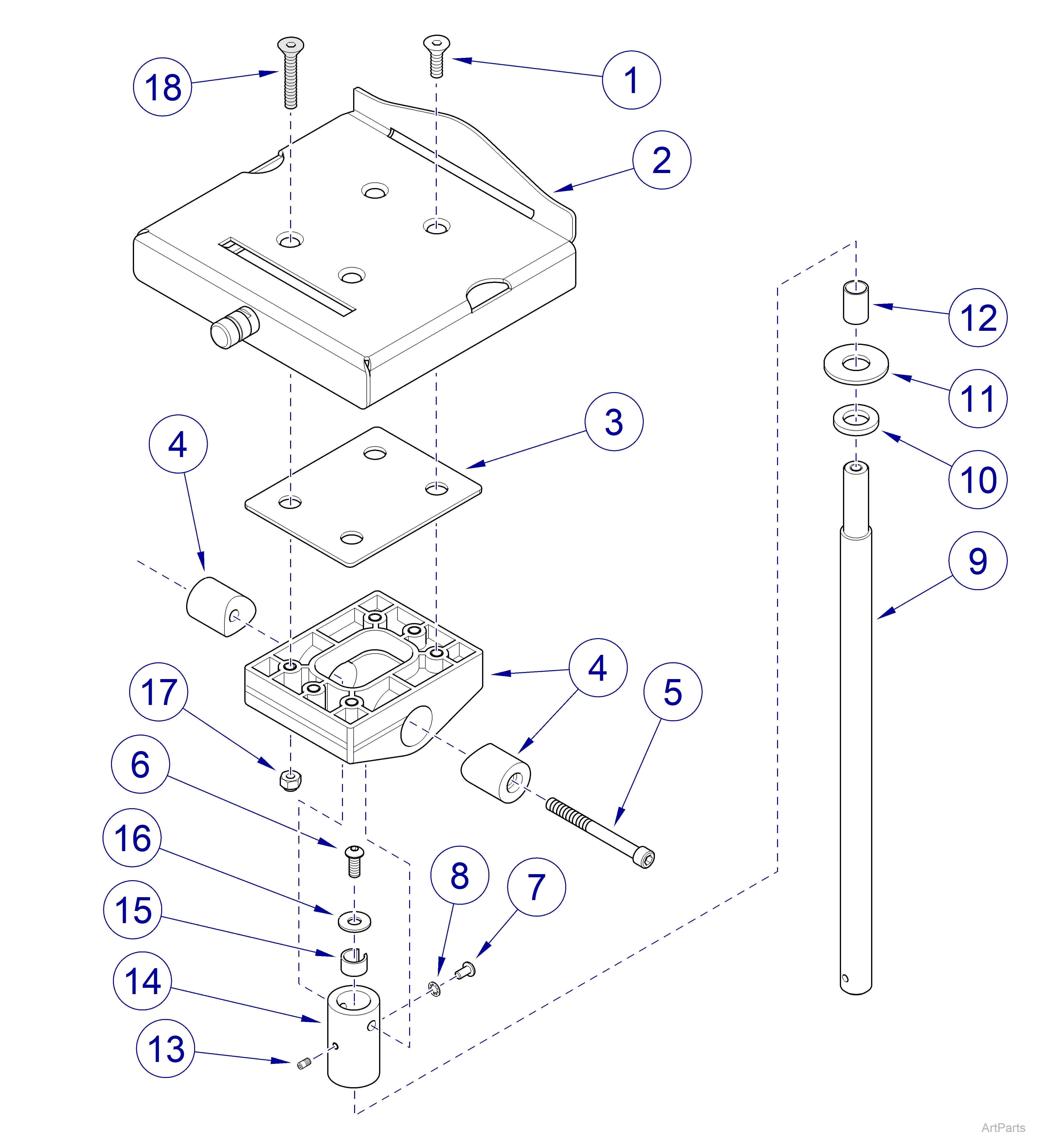

| Midmark® Monitor Mount Upper Mount Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0250-17 | 1/4-20 x 1 1/4 Hex Socket Flat Head | 2 |
|
2 |
029-5390-01 | Receiver Plate | 1 |
|
3 |
050-8312-00 | Plate Spacer | 1 |
|
4 |
002-1797-00 | Tilt Block Assembly Kit - includes item #5, Pivot Pin, Threaded, Tilt Block Pivot Pin, Tilt Block | 1 |
|
5 |
002-1798-00 | Tilt Block Screw Kit 1/4-20 x 2 1/2 - includes Lock Adhesive not shown | 1 |
|
6 |
040-0250-79 | Screw 1/4-20 x 5/8 Hex Socket | 1 |
|
7 |
040-0010-47 | Screw .190-24 THD x 3/8” | 1 |
|
8 |
045-0001-35 | Lock Washer .190 INT BO | 1 |
|
9 |
057-1357-00 | Mounting Stud | 1 |
|
10 |
045-0001-95 | Washer .500 | 1 |
|
11 |
045-0001-159 | Nylon 6/6 Washer 1/2 .530 ID x 1.25 OD x .09 | 1 |
|
12 |
016-0076-07 | DU Bearing .500 ID x .594 OD x .875 Long | 1 |
|
13 |
040-0008-47 | Set Screw 0.164-32 X 0.312 HEX | 1 |
|
14 |
052-0808-00-312 | Swivel / Tilt Coupler | 1 |
| 15 | 016-1583-00 | Slotted Bearing | 1 |
| 16 | 65952700 | Flat Washer 1/4” | 1 |
| 17 | 041-0250-01 | Nut NyLock Hex 1/4-20 CD, ZN | 4 |
| 18 | 040-0250-97 | Flat Head Hex Socket 1/4-20 | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
