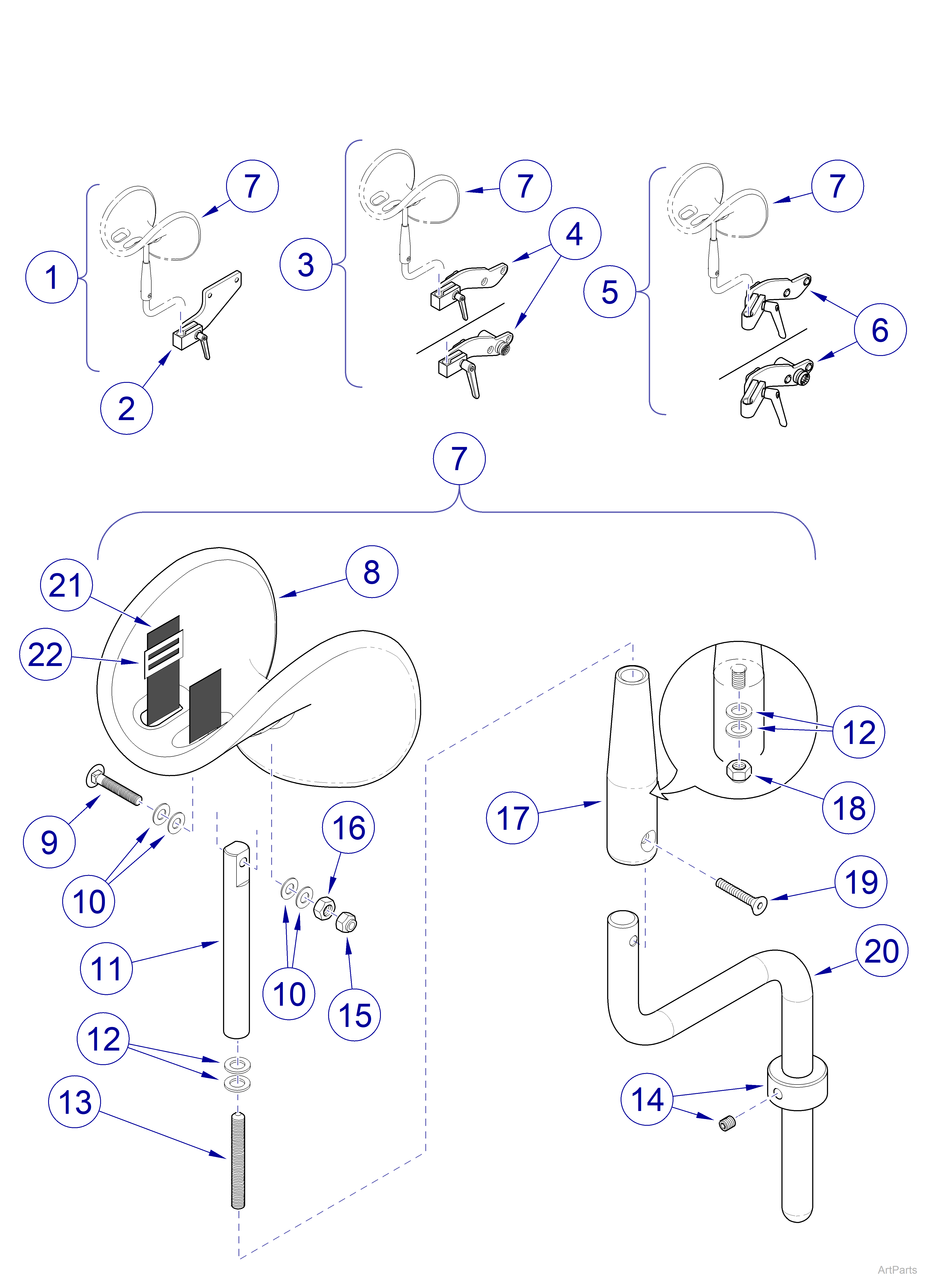

9A41x Knee Crutch Sets
9A410
|
Accessory Number |
9A410 |
| Serial Number | All |
| Used with Models | 204, 222-015 thru -017, 223-015 thru -016, 230, 604, 623-009 thru -011, 625, and 630 |
| 9A410 Knee Crutch Sets | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A410002 |
230 / 630 Knee Crutch / Bracket Set - includes 2 and 7 |
NLA |
|
2 |
9A412001 | Bracket Set | 1 |
|
3 |
204 / 604 / 222 / 223/ 623 Knee Crutch / Bracket Set Options - includes 4 and 7 | ||
|
9A410003 |
Bracket w/o Spline | NLA | |
|
9A410004 |
Bracket w/ Spline | NLA | |
|
4 |
Bracket Set Options | ||
|
9A412002 |
w/o Spline | NLA | |
| 9A412003 | w/ Spline | 1 | |
|
5 |
625 Knee Crutch / Bracket Set - includes 6 and 7 | ||
|
9A410005 |
Bracket w/o Spline | NLA | |
|
9A410006 |
Bracket w/ Spline |
NLA |
|
|
6 |
Bracket Set Options | ||
|
9A412004 |
w/o Spline | NLA | |
| 9A412005 | w/ Spline | 1 | |
|
7 |
Knee Crutch Assembly Options - includes 8 thru 20 | ||
|
9A410001 |
Set |
NLA |
|
|
029-4093-00 |
Single | NSS | |
|
8 |
053-1646-00-312 | Knee Holder | 4 |
|
9 |
040-0250-126 | Screw | 1 |
|
10 |
045-0001-134 | Washer | 4 |
|
11 |
057-0878-00 | Shaft | 1 |
|
12 |
045-0001-136 | Washer | 1 |
|
13 |
040-0312-83 | Threaded Stud | 1 |
|
14 |
057-0891-00 | Collar - includes set screw | 1 |
|
15 |
041-0250-01 | Nut | 1 |
|
16 |
051-1099-00 | Nut | 1 |
|
17 |
057-0968-00 | Swivel | 1 |
|
18 |
041-0312-01 | Nut | 1 |
|
19 |
040-0250-73 | Screw | 1 |
|
20 |
057-0870-00 |
Knee Crutch Bar |
NSS |
|
21 |
029-4157-00-312 | Security Strap | 1 |
|
22 |
016-1138-00-312 | Strap Buckle | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

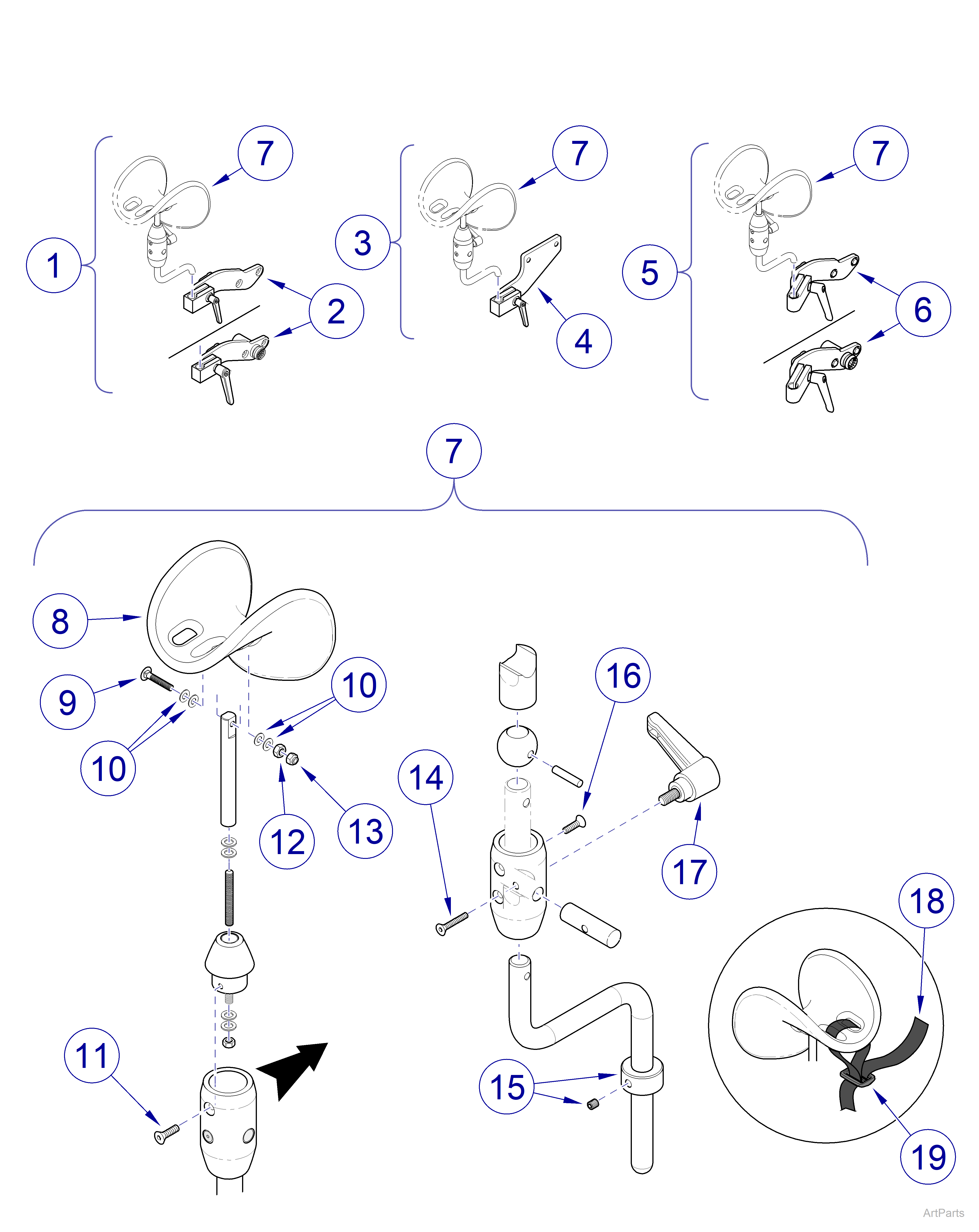

9A411
|
Accessory Number |
9A411 |
| Serial Number | All |
| Used with Models | 204, 222-015 thru -017, 223-015 thru -016, 230, 604, 623-009 thru -011, 625, 630 and 631 |
Parts not called out in the illustration, are non-serviceable items.
Midmark® does not recommend disassembling the clamp housing.
| 9A411 Articulating Knee Crutch Sets | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
204, 604, 222, 223 and 623 Bracket Set Options | ||
|
9A411003 |
Bracket w/o Spline - includes 2 thru 6, and 19 | NLA | |
| 9A411004 | Bracket w/ Spline - includes 2 thru 5, 7 and 19 | 1 | |
|
2 |
Bracket Set Options | ||
|
9A412002 |
Bracket w/o Spline | NLA | |
| 9A412003 | Bracket w/ Spline | 1 | |
|
3 |
9A411002 | 230, 630 and 631 Knee Crutch / Bracket Set - includes 4 and 7 | 1 |
|
4 |
9A412001 | Bracket Set | 1 |
|
5 |
625 Knee Crutch / Bracket Set Options - includes 6 and 7 | ||
|
9A411005 |
Bracket w/o Spline | NLA | |
| 9A411006 | Bracket w/ Spline | 1 | |
|
6 |
625 Bracket Set Options | ||
|
9A412004 |
Bracket w/o Spline | NLA | |
| 9A412005 | Bracket w/ Spline | 1 | |
|
7 |
Knee Crutch Assembly Options - includes 8 thru 20 | ||
| 9A411001 | Set | 2 | |
|
029-3816-00 |
Single | NSS | |
|
8 |
053-1646-00-312 | Knee Holder | 1 |
|
9 |
040-0250-126 | Screw | 1 |
|
10 |
045-0001-134 | Washer | 4 |
|
11 |
Screw | 1 | |
|
12 |
051-1099-00 | Nut | 1 |
|
13 |
041-0250-01 | Nut | 1 |
|
14 |
040-0250-77 | Screw | 1 |
|
15 |
Collar - includes set screw | 1 | |
|
16 |
040-0250-174 | Screw | 1 |
|
17 |
002-1673-00 |
Handle and Threaded Stud - apply thread locker included |
1 |
|
18 |
029-4157-00-312 | Security Strap | 1 |
|
19 |
016-1138-00-312 | Strap Buckle | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
