604 Knee Crutch Cladding 9A413
|
Accessory Number |
9A413 |
| Serial Number | All |
| Used with Models | 604 |

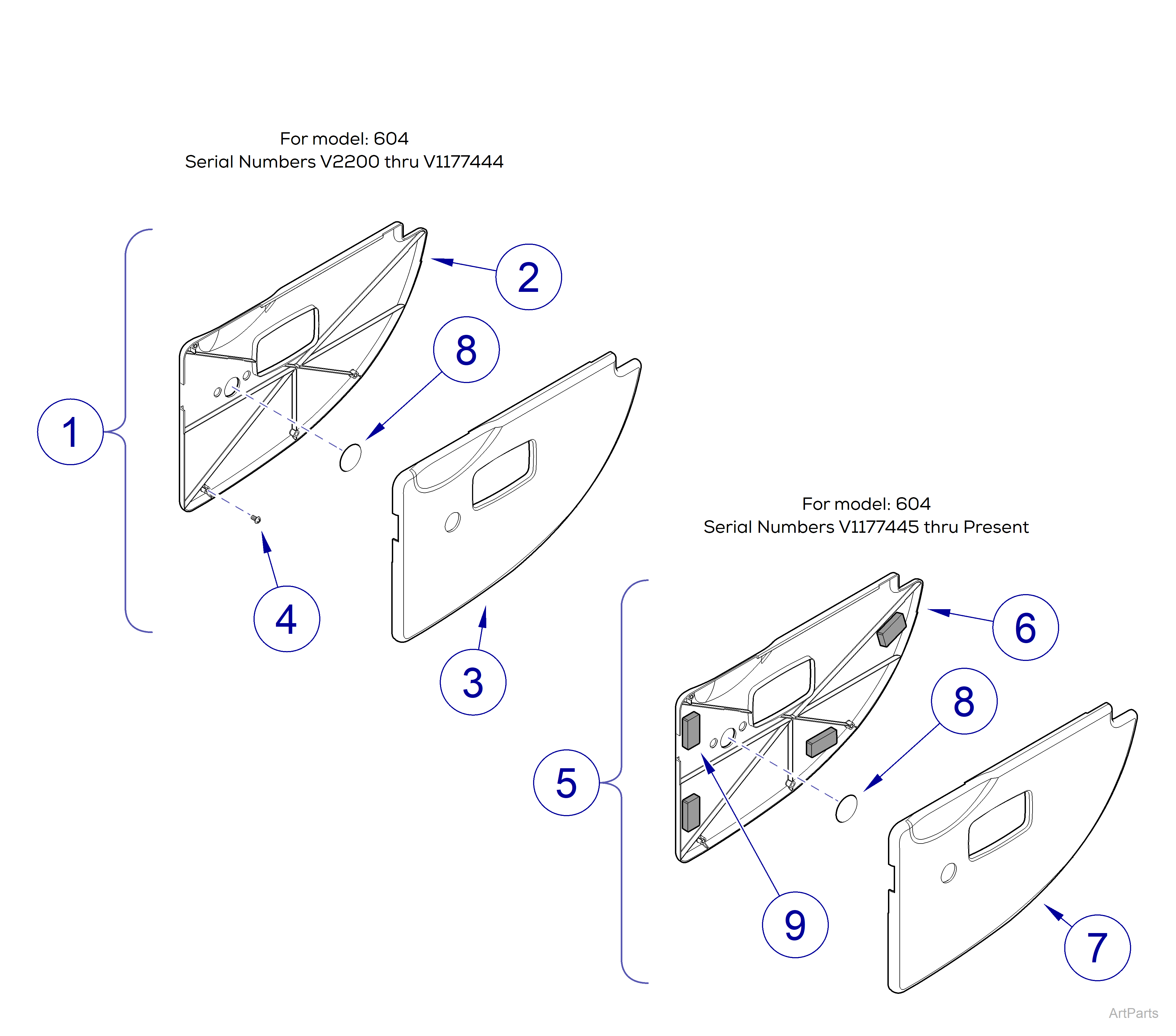

| 9A413 Knee Crutch Cladding | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Cladding Set - replaced by item # 5 | NLA | |
|
2 |
RH Side Cladding - replaced by item # 6 | NLA | |
|
3 |
LH Side Cladding - replaced by item # 7 | NLA | |
|
4 |
040-0010-166 | Screw #10-24 x 3/8” | 6 |
|
5 |
9A413003-271 |
Magnetic Cladding Set - includes items 6 thru 9 |
NLA |
|
6 |
029-4145-00-271 | RH Side Cladding | 1 |
|
7 |
029-4146-00-271 | LH Side Cladding | 1 |
|
8 |
061-0981-00-271 | Hole Cover | 2 |
|
9 |
016-1508-00 |
Magnet | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
