Midmark® Digital Vital Signs Device Device Chair Mount / Lower Section
Model Range 9A551002
|
Accessory Number |
9A551002 |
| Serial Number | All |
| Used with Models | 204, 222, 223, 224, 225, 604, 623, 625-001, 625-003 and 626 |

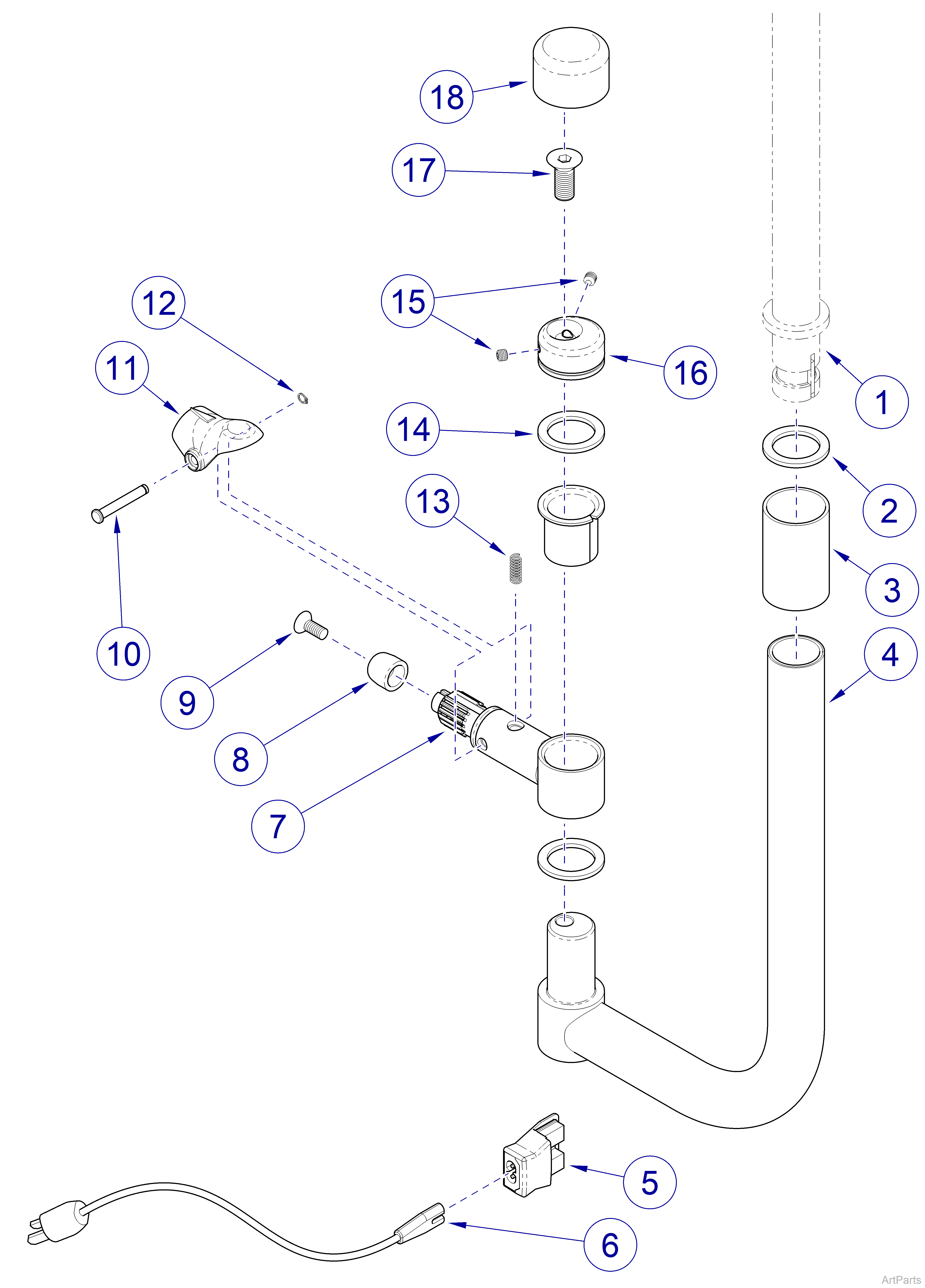

| Midmark® Digital Vital Signs Device Device Chair Mount Lower Section | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: | 9A551002 / Upper Section | - |
|
2 |
045-0038-00 | Bearing Washer | 3 |
|
3 |
052-0841-00-216 | Sleeve | 1 |
|
4 |
030-2152-00-216 | Lower Arm Tube | 1 |
|
5 |
015-3336-00 | Adapter Plug | 1 |
|
6 |
015-3335-00 | Power Cord | 1 |
|
7 |
030-2151-00-216 | Stub Weldment | 1 |
|
8 |
057-1412-00 | Alignment Stud | 1 |
|
9 |
040-0312-08 | Screw 5/16”-18 x 7/8” | 1 |
|
10 |
042-0606-00 | Clevis Pin | 1 |
|
11 |
053-1339-00 | Armrest Retainer Clip | 1 |
|
12 |
042-0056-05 | Retaining Ring | 1 |
|
13 |
025-0042-11 | Compression Spring | 1 |
|
14 |
016-0392-18 | DU Flange Bearing | 1 |
|
15 |
040-0250-75 | Set Screw 1/4”-20 x 1/4” | 2 |
|
16 |
057-1402-00-216 | Top Rotation Cap | 1 |
|
17 |
040-0500-37 | Screw 1/2” x 1-1/4” | 1 |
|
18 |
053-2542-00 | Dust Cover Cap | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 9A629003
|
Accessory Number |
9A629003 |
| Serial Number | All |
| Used with Models | 204, 222, 223, 224, 225, 604, 623, 625-001, 625-003 and 626 |
| Midmark® Digital Vital Signs Device Device Chair Mount Lower Section | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: | 9A629003 / Upper Section | - |
|
2 |
045-0038-00 | Bearing Washer | 3 |
|
3 |
052-0841-00-813 |
Sleeve | NSS |
|
4 |
030-2152-00-813 |
Lower Arm Tube | NSS |
|
5 |
015-3336-00 | Adapter Plug | 1 |
|
6 |
015-3335-00 | Power Cord | 1 |
|
7 |
030-2151-00-813 |
Stub Weldment | NSS |
|
8 |
057-1412-00 | Alignment Stud | 1 |
|
9 |
040-0312-08 | Screw 5/16”-18 x 7/8” | 1 |
|
10 |
042-0606-00 | Clevis Pin | 1 |
|
11 |
053-1339-00-813 | Armrest Retainer Clip | 1 |
|
12 |
042-0056-05 | Retaining Ring | 1 |
|
13 |
025-0042-11 | Compression Spring | 1 |
|
14 |
016-0392-18 | DU Flange Bearing | 1 |
|
15 |
040-0250-75 | Set Screw 1/4”-20 x 1/4” | 2 |
|
16 |
057-1402-00-813 |
Top Rotation Cap | NSS |
|
17 |
040-0500-37 | Screw 1/2” x 1-1/4” | 1 |
|
18 |
053-2542-00-813 | Dust Cover Cap | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
