9A641001 Knee Crutch Brackets
|
Accessory Number |
9A641001 |
| Serial Number | All |
| Used with Models | 224/225/626/627 |

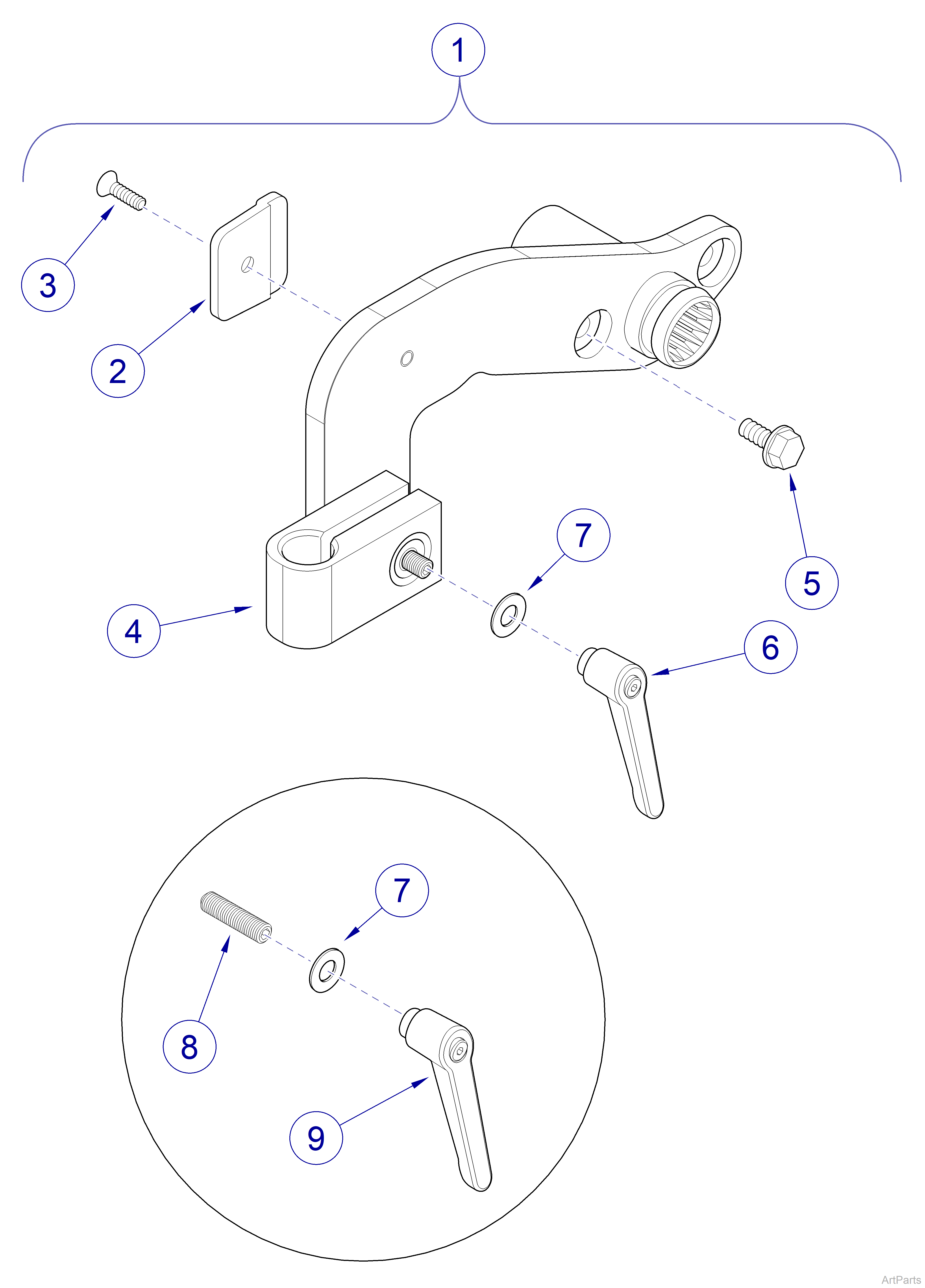

| 9A641001 Knee Crutch Brackets | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A641001 | Bracket Set - includes 2 thru 6 | 1 |
|
2 |
051-1163-00 | Clamp Plate | 2 |
|
3 |
040-0250-118 | Screw | 2 |
|
4 |
Bracket w/ Spline Options | ||
|
|
030-10032-01 | LH | 1 |
|
|
030-10032-00 | RH | 1 |
|
5 |
040-0312-79 | Hex Screw 5/16-18 x 3/4” | 4 |
|
6 |
Adjustment Handle Components - includes items 7 thru 9 | ||
|
7 |
045-0001-138 | Washer | 1 |
|
8 |
040-0375-82 | Threaded Stud | 1 |
|
9 |
016-0826-00 |
Handle apply thread locker to threads |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
