9A42700x Fixed and Sliding Swing Arm Instrument Tray
Model Range 9A427001
|
Accessory Number |
9A427001 |
| Serial Number | All |
| Used with Models | 230, 641, 646, 647 |

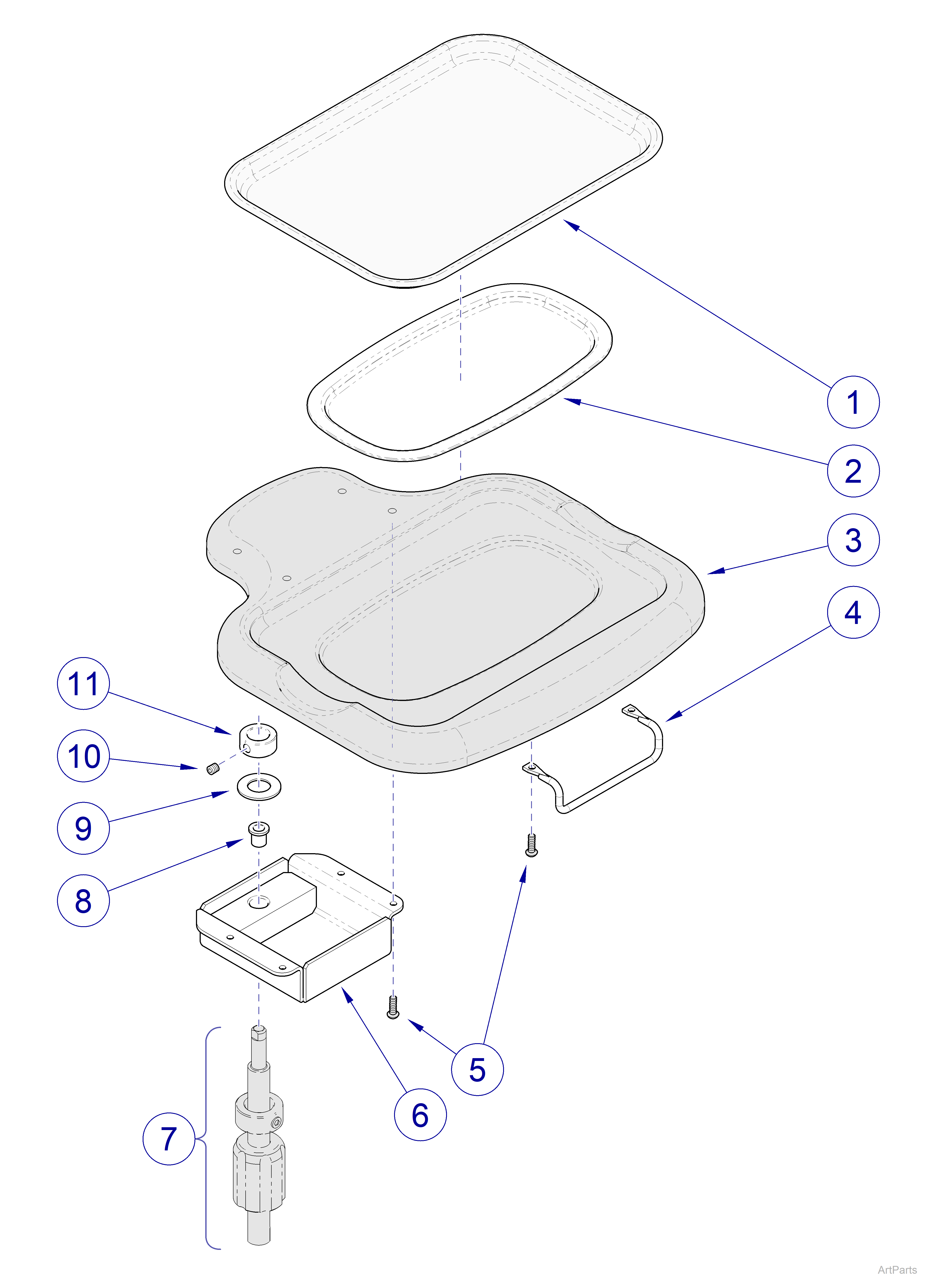

| 9A427001 Fixed Swing Arm Instrument Tray | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A432001 | Stainless Steel Instrument Tray | 1 |
|
2 |
053-1120-00 | Tray Pad | 1 |
|
3 |
Tray Mount Surface | 1 | |
|
4 |
057-1139-00 | Handle | 1 |
|
5 |
040-0010-70 | Screw #10-24 x 5/8” | 6 |
|
6 |
030-1868-00-xxx | Fixed Head Weldment | 1 |
|
7 |
Refer to: | Swing Arm Assembly | - |
|
8 |
016-0131-08 | Bushing | 2 |
|
9 |
120712 | Washer | 2 |
|
10 |
040-0008-47 | Set Screw | 1 |
|
11 |
057-1132-00 | Cap Nut | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 9A427002
|
Accessory Number |
9A427002 |
| Serial Number | All |
| Used with Models | 230, 641, 646, 647 |

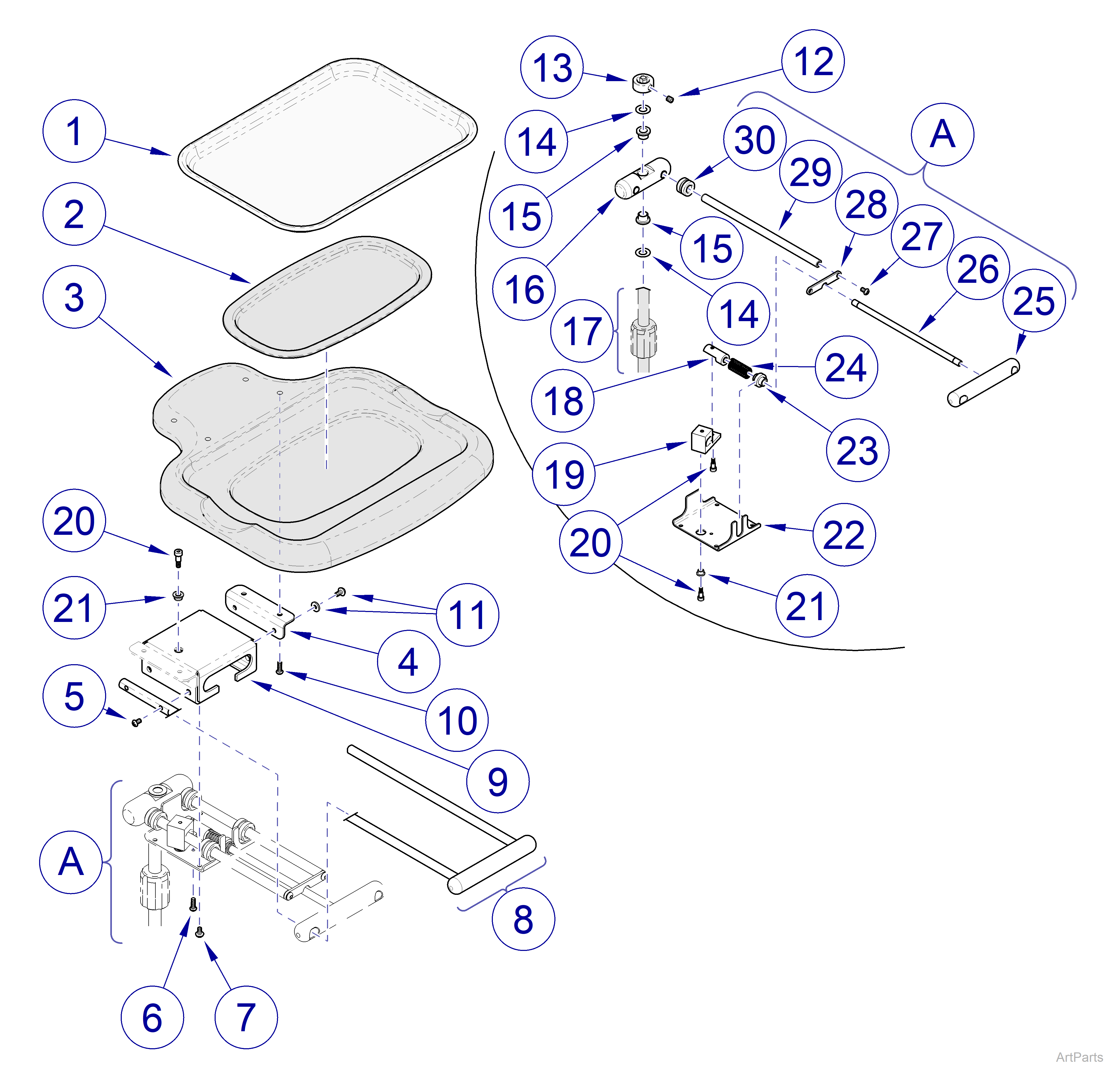

| 9A427002 Swing Arm Instruments Tray Sliding | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A432001 | Stainless Steel Instrument Tray | 1 |
|
2 |
053-1120-00 | Tray Pad | 1 |
|
3 |
Tray Mount Surface | 1 | |
|
4 |
050-7772-00-xxx | L-Bracket | 2 |
|
5 |
040-0010-108 | Screw | 4 |
|
6 |
040-0010-113 | Screw #10-24 x 5/8” | 1 |
|
7 |
040-0010-47 | Screw #10-24 x 3/8” | 4 |
|
8 |
030-1863-00 | Pull Handle Weldment | 1 |
|
9 |
050-7773-00-xxx | Glide Housing | 1 |
|
10 |
040-0010-70 | Allen Screw #10-24 x 5/8” | 4 |
|
11 |
120233 | Screw #10-32 x 3/8” | 4 |
|
12 |
040-0008-47 | Set Screw | 1 |
|
13 |
057-1132-00 | Cap Nut | 1 |
|
14 |
120712 | Washer | 2 |
|
15 |
016-0131-08 | Bushing | 2 |
|
16 |
057-1123-00 | Tray Rail Bracket | 1 |
|
17 |
Refer to: | Swing Arm Assembly | - |
|
18 |
057-1135-00 | Pull Rod End | 1 |
|
19 |
051-1223-00 | Toggle Locking Block | 1 |
|
20 |
042-0014-21 | Shoulder Screw 1/4 x 3/8” | 3 |
|
21 |
016-0131-10 | Flange Bearing | 2 |
|
22 |
050-7774-00-xxx | Clamp Plate | 1 |
|
23 |
053-2084-00 | Glide Bushing | 1 |
|
24 |
025-0042-12 | Compression Spring | 1 |
|
25 |
053-2086-00-xxx | Pull Handle | 1 |
|
26 |
057-1136-00 | Pull Rod | 1 |
|
27 |
040-0250-150 | Screw 1/4-20 x 3/8” | 2 |
|
28 |
050-7771-00 | Slide Stop | 1 |
|
29 |
057-1125-00 | Tray Rail Shaft | 2 |
|
30 |
053-2085-00-xxx | Glide Bushing | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
