9A428001 Swing Arm PC Work Shelf
|
Accessory Number |
9A428001 |
| Serial Number | All |
| Used with Models | 230, 641, 646, 647 |

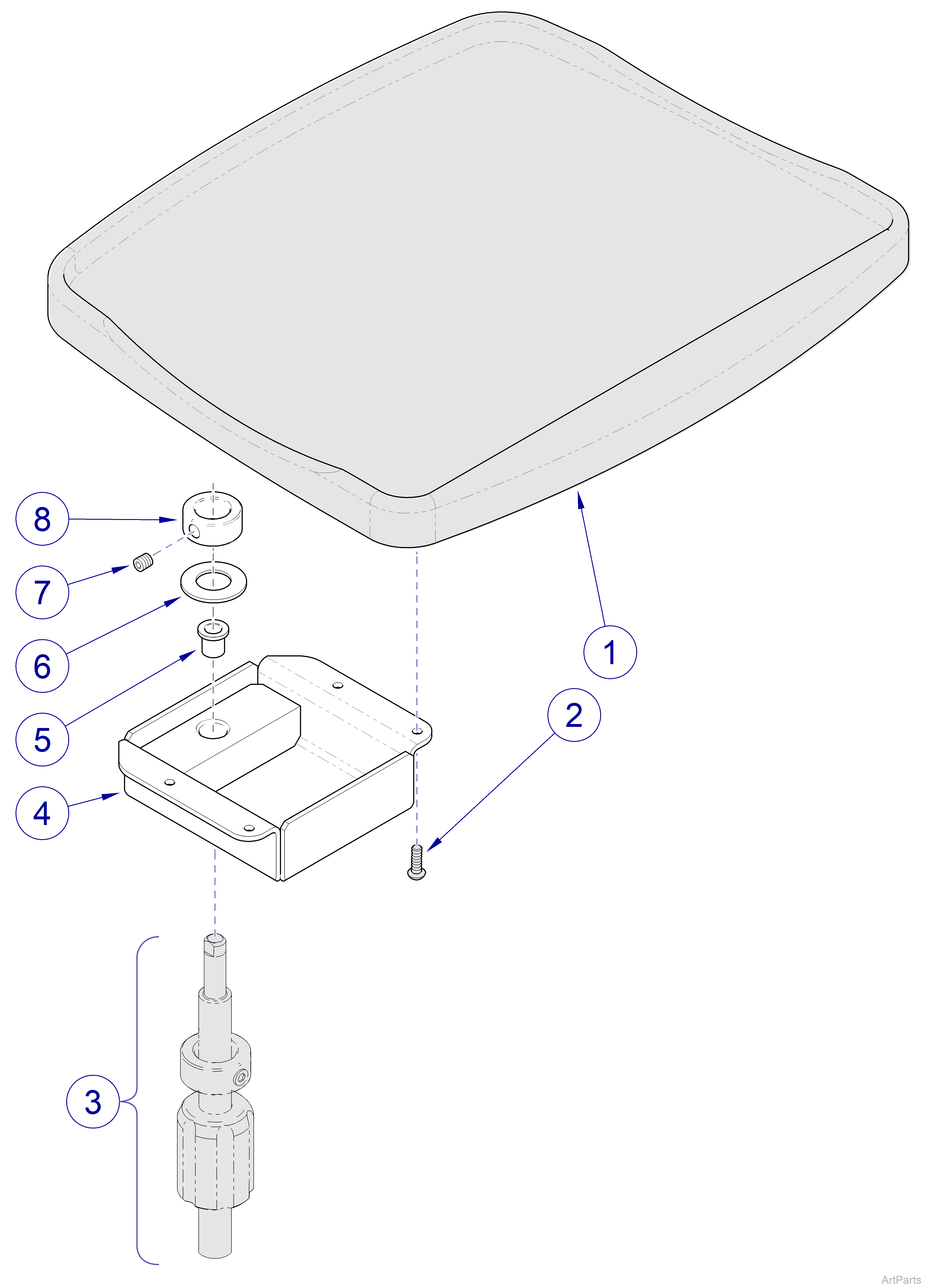

| 9A428001 Swing Arm PC Work Shelf | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4838-00-xxx | PC Work Shelf | 1 |
|
2 |
040-0010-70 | Screw #10-24 x 5/8” | 4 |
|
3 |
Refer to: | Swing Arm Assembly | - |
|
4 |
030-1868-00-xxx | Fixed Head Weldment | 1 |
|
5 |
016-0131-08 | Bushing | 2 |
|
6 |
120712 | Washer | 2 |
|
7 |
040-0008-47 | Set Screw | 1 |
|
8 |
057-1132-00 | Cap Nut | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
