9A81001 Articulating Armboard
Serial Number Range: ATO1000 thru ATO11805
|
Accessory Number |
9A81001 |
| Serial Number | ATO1000 thru ATO11805 |
| Used with Models | 230, 630, 641 |

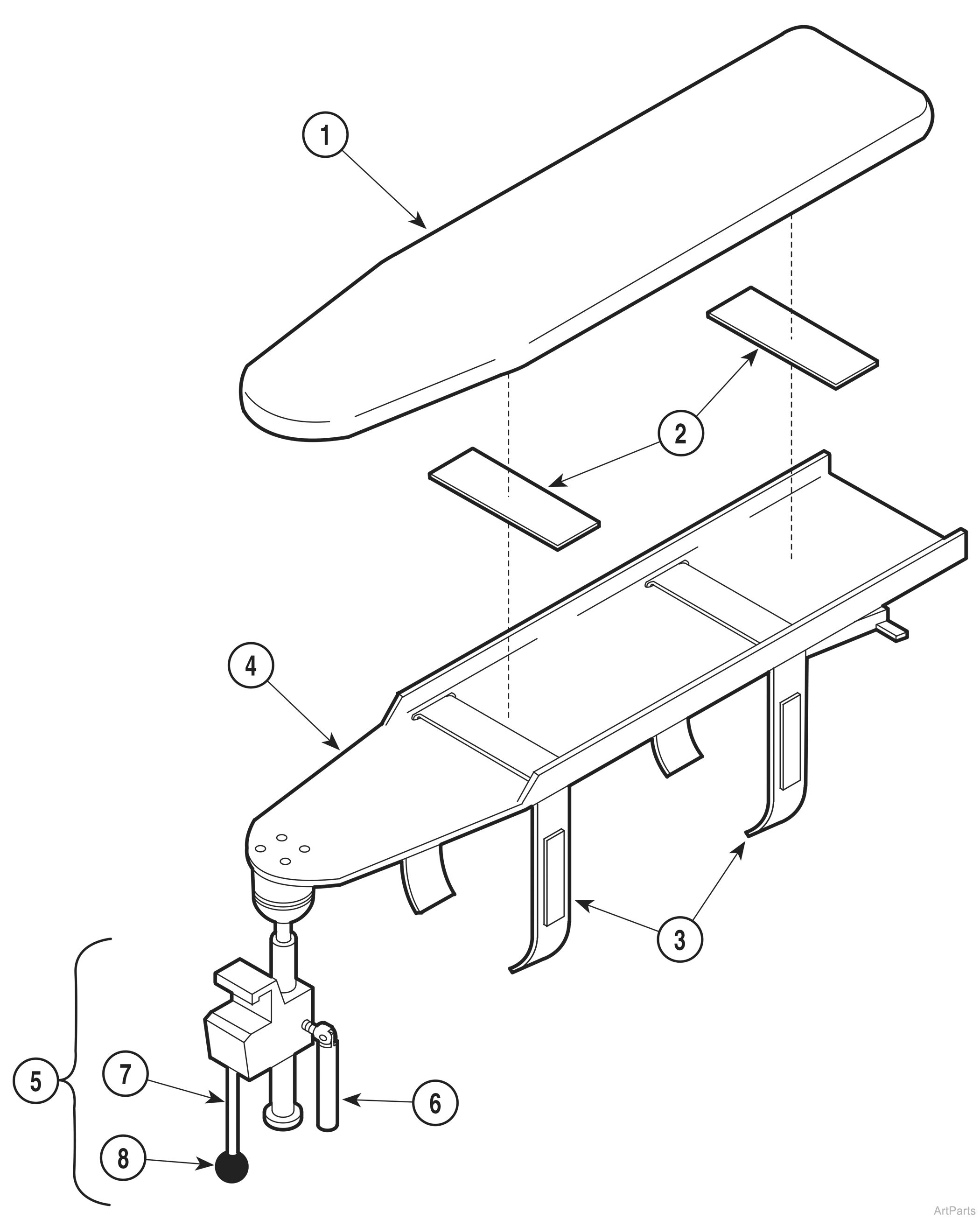

| 9A81001 Articulating Armboard Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
028-0170-00 | Upholstered Armboard - Used on 9A81001 Only | 1 |
|
2 |
Hook and Loop Fastener Tape Options | ||
| 053-0131-31 | Hook Fastener Tape | 2 | |
| 053-0105-33 | Loop Fastener Tape | 2 | |
|
3 |
029-0526-00 | Arm Restraint Strap | 2 |
|
4 |
029-0522-00 |
Armboard w/Clamp Assembly - Includes items 5 and 6 | NSS |
|
5 |
029-1527-00 |
Armboard Mechanism | NSS |
|
6 |
029-1265-00 | Clamp Assembly - Includes items 7 and 8 | 1 |
|
7 |
016-0575-00 | Clamp Handle | 1 |
|
8 |
002-0483-00 | Handle - Includes knob | 1 |
|
9 |
9A81001 | Articulating Armboard Assembly - Includes Items 1 thru 4 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: ATO11806 thru Present
|
Accessory Number |
9A81001 |
| Serial Number | ATO11806 thru Present |
| Used with Models | 230, 630, 631 and 641 |

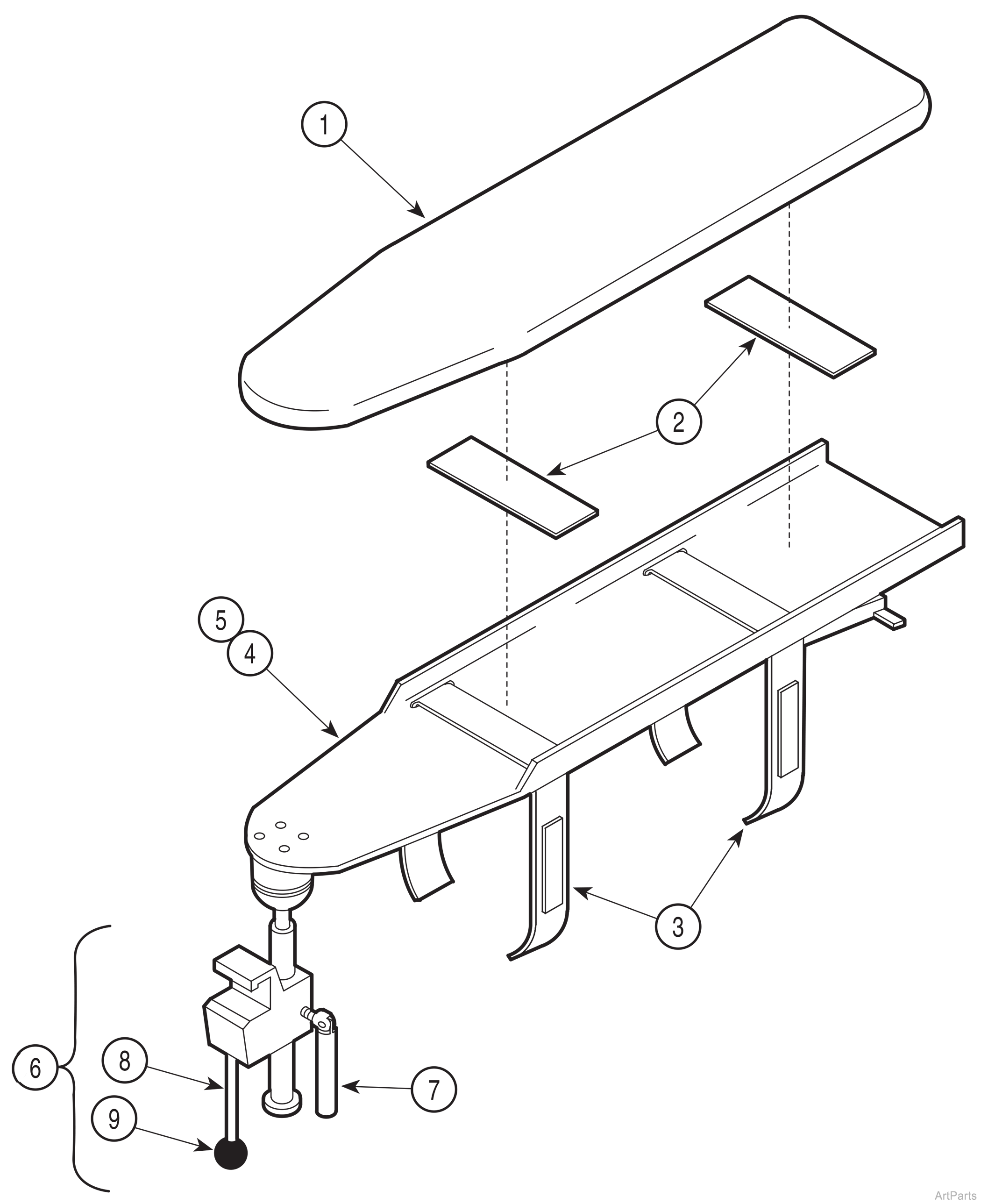

| 9A81001 Articulating Armboard Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
028-0170-xxx | Upholstered Armboard - Used on 9A81001 Only | 1 |
|
2 |
Hook and Loop Fastener Tape Options | ||
| 053-0131-31 | Hook Fastener Tape | 2 | |
| 053-0105-33 | Loop Fastener Tape | 2 | |
|
3 |
029-0526-00 | Arm Restraint Strap | 2 |
|
4 |
029-0522-00 |
Armboard w/Clamp Assembly - Includes items 5 and 6 | NSS |
|
5 |
029-1527-00 |
Armboard Mechanism | NSS |
|
6 |
029-1265-00 | Clamp Assembly - Includes items 7 and 8 | 1 |
|
7 |
002-0482-00 | Clamp Handle | 1 |
|
8 |
016-0576-00 | Shaft Handle | 1 |
|
9 |
016-0577-00 | Ball Knob | 1 |
|
10 |
9A81001 | Articulating Armboard Assembly - Includes Items 1 thru 4 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 9A17600x
|
Accessory Number |
9A17600x |
| Serial Number | All |
| Used with Models | 230, 630, 641 |
Refer to: Upholstery Color Options for the order number extension of your desired color.

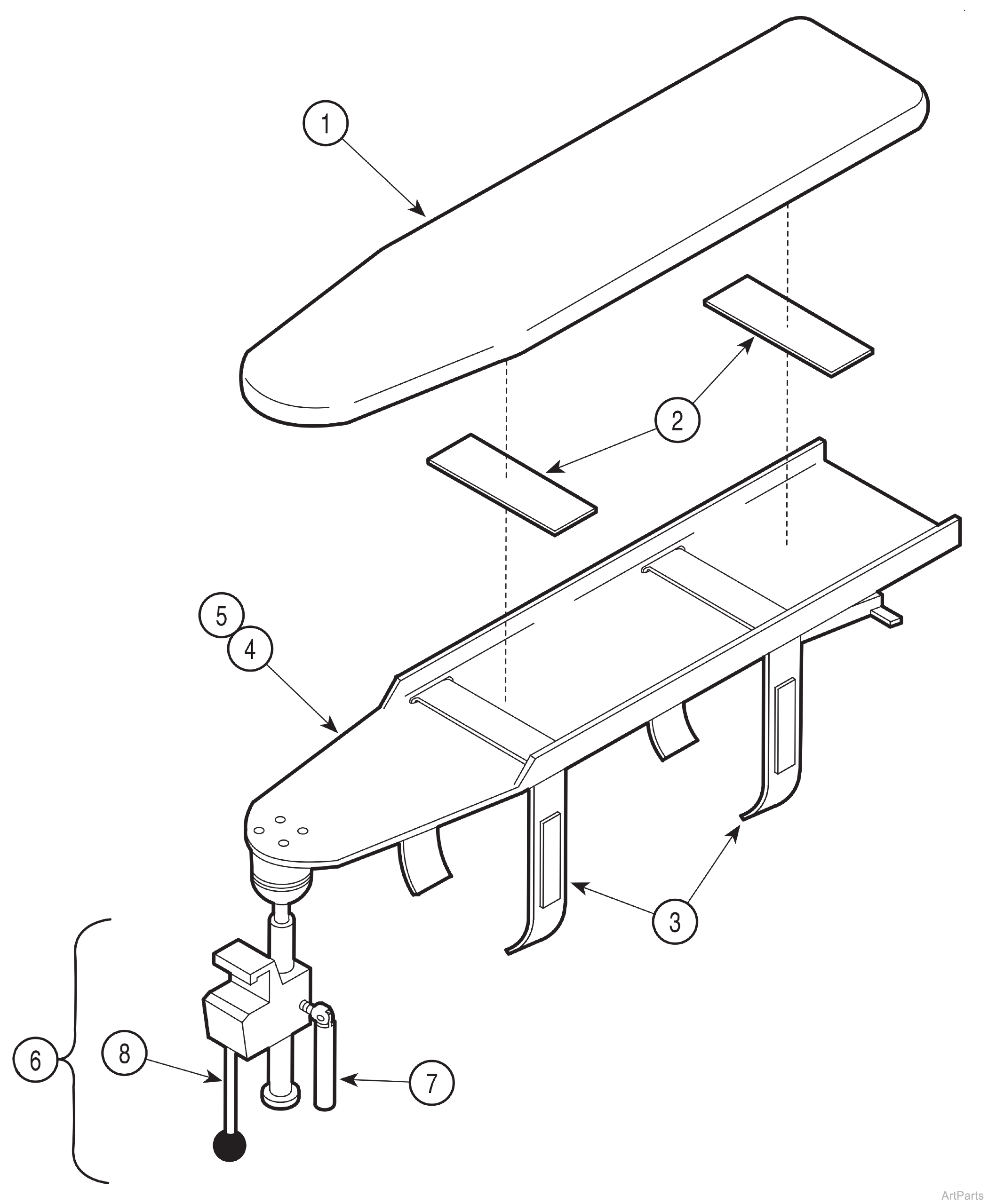

| 9A17600x Articulating Armboard Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Articulating Armboard Assembly Components - includes items 1 thru 4 | ||
|
028-0316-01 |
Closed Cell Construction Armboard Cushion - Black | NLA | |
|
028-0316-02 |
Closed Cell Construction Armboard - Pearl Grey | NLA | |
|
028-0316-03 |
Closed Cell Construction Armboard - Blue | NLA | |
|
|
028-0170-00 | Upholstered Construction Armboard -Specify Color | 1 |
|
2 |
Hook and Loop Fastener Tape Options | ||
| 053-0131-31 | Hook Fastener Tape | 2 | |
| 053-0105-33 | Loop Fastener Tape | 2 | |
|
3 |
029-0526-00 | Arm Restraint Belt/Strap | 2 |
|
4 |
029-1533-00 | Armboard Assembly - Includes Item 5 | 1 |
|
5 |
029-1701-00 | Clamp Assembly - Includes Items 6 thru 8 | 1 |
|
6 |
016-0575-00 | Clamp Handle | 1 |
|
7 |
016-0576-00 | Handle Shaft | 1 |
|
8 |
016-0577-00 | Knob | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
