9A20500x Base Rail Assembly

Accessory Number

 9A205002 9A205004
Used with Models 9A457001, 9A622001 230, 641, 646, 647 and 630 (-001 thru -009)

9A205002 Base Rail Assembly

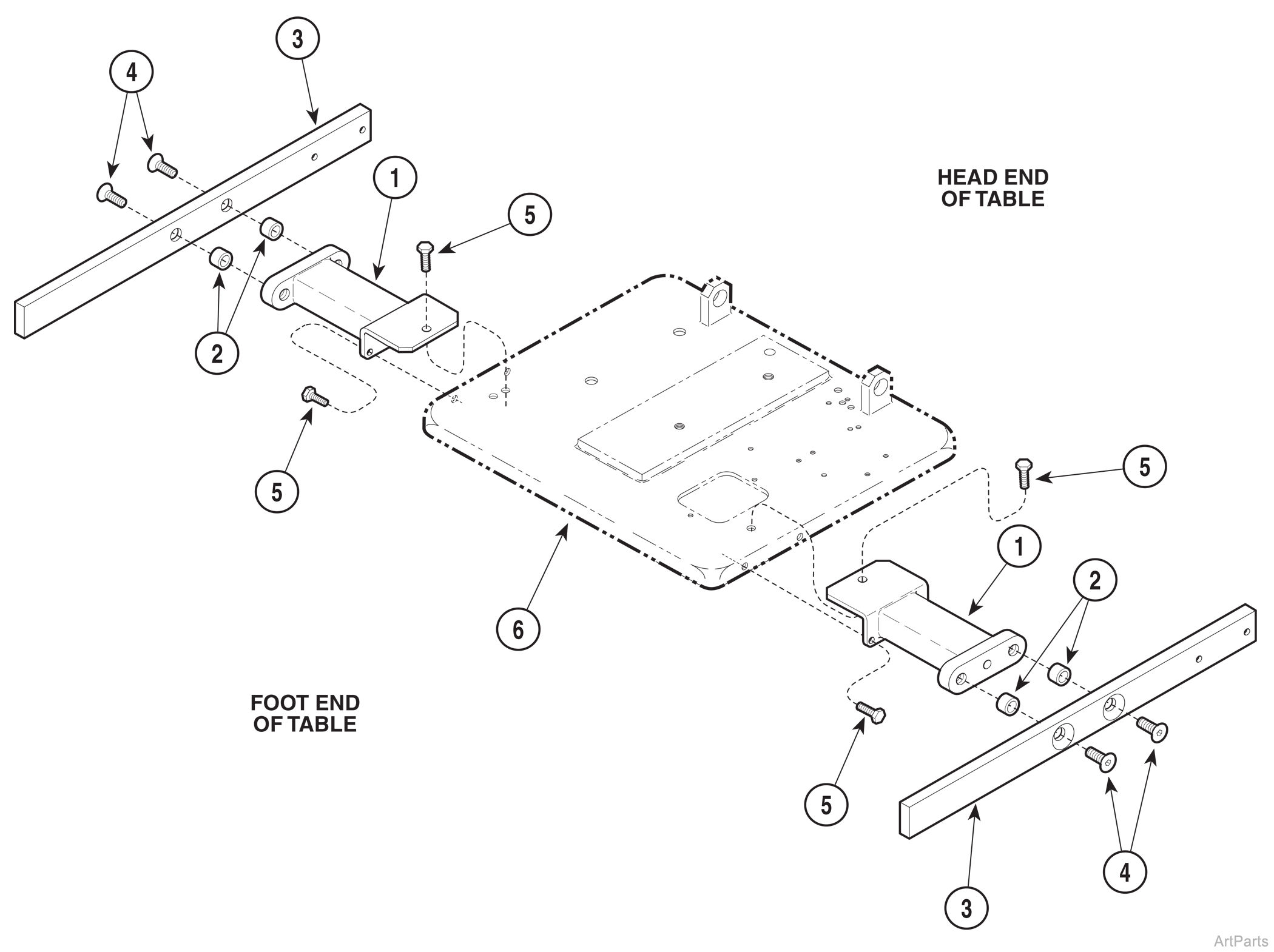

9A20500x Base Rail Assembly
Item Part Number Description Qty

1

 Base Rail Weldment Options
  030-1041-00 Used with 9A457001, 9A622001 2
  030-1041-01 For Models 230, 641, 646, 647 and 630 (-001 thru -009) 2

2

 052-0115-02 Spacer 4

3

 051-0834-00 Base Rail 2

4

 040-0375-45 Screw -Apply item 7 4

5

 040-0250-133 Screw 4

6

 Reference Only Column Adapter Weldment -

7

 042-0025-02 Threadlock Adhesive 1

8

 Base Rail Assembly Options - Includes Items 1 thru 5
  9A205002 Used with 9A457001, 9A622001 1
  9A205004 For Models 230, 641, 646, 647 and 630 (-001 thru -009) 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
