Chair Arms 9A396 Thru 9A3999
Date Range: Units built before
01-10-2010
|
Accessory Number |
9A396 Thru 9A3999 |
| Date Range: | Units built before 01-10-2010 |
| Used with Models | 641, 646, and 647 |
When ordering item 11, check item 17. If item 17 is the older style, you must order items 11 and 17.
Older style notches all the way around is no longer available. To replace, you must order items 11 and 17.

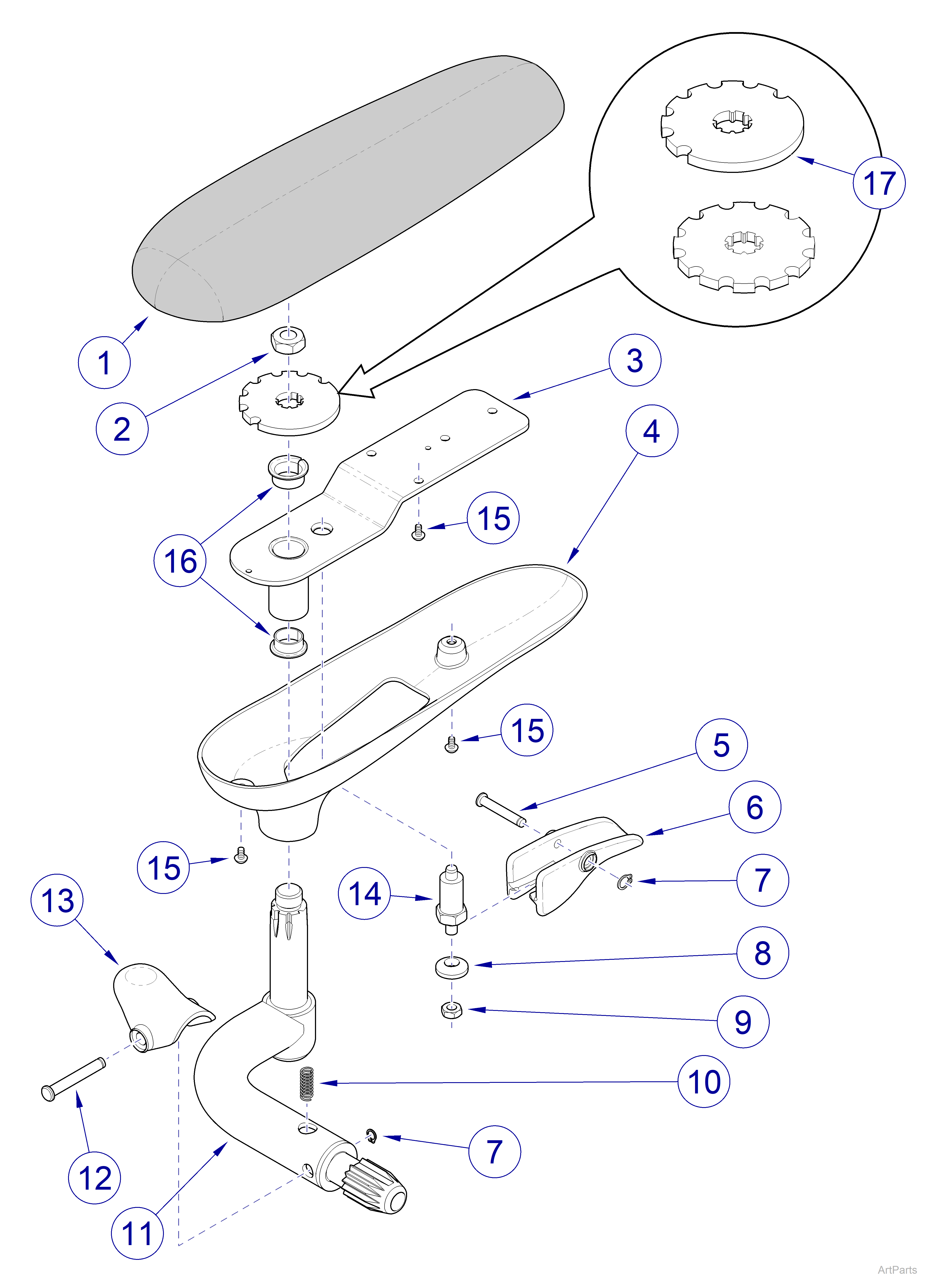

| Chair Arms 9A396 Thru 9A3999 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Upholstered Arm Pad Options | ||
| 028-0667-00-xxx | Premium Upholstery | 1 | |
|
028-0690-00-xxx |
Premium Uph - Cal 133 |
NLA |
|
| 028-0691-00-xxx | Ultra-Premium Upholstery | 1 | |
|
028-0692-00-xxx |
Ultra- Premium Uph-Cal 133 |
NLA |
|
|
2 |
041-0625-00 | Nut - apply Loctite 242 | 1 |
|
3 |
030-1660-00-312 | Arm Weldment | 1 |
|
4 |
053-1763-00-312 | Bottom Cover | 1 |
|
5 |
042-0606-01 | Clevis Pin | 1 |
|
6 |
053-1332-0x | Pivot Handle | 1 |
|
7 |
042-0056-05 | Retaining Ring | 2 |
|
8 |
045-0001-129 | Spherical Washer | 1 |
|
9 |
041-0026-03 | Nut | 1 |
|
10 |
025-0042-11 | Spring | 1 |
|
11 |
Shaft Weldment Options | ||
| 030-1658-01-312 | LH Shaft Weldment- shown exploded | 1 | |
| 030-1658-00-312 | RH Shaft Weldment | 1 | |
|
12 |
042-0606-00 | Clevis Pin | 1 |
|
13 |
053-1339-01 | Retainer Clip | 1 |
|
14 |
016-0946-00 | Indexing Plunger | 1 |
|
15 |
040-0010-47 | Screw #10-24 x 3/8” | 6 |
|
16 |
016-0392-04 | Flange Bearing | 2 |
|
17 |
050-6916-xx | Lock Plate | 1 |
| 18 | Chair Arm Upholstery Options - Reference Only | ||
| 9A396001-xxx | w/Premium Upholstery | - | |
|
9A397001-xxx |
w/Premium Upholstery-Cal 133 |
NLA |
|
| 9A398001-xxx | w/Ultra-Premium Upholstery | - | |
|
9A399001-xxx |
w/Ultra-Premium Upholstery-Cal 133 |
NLA |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Date Range: Units built after
01-10-2010
|
Accessory Number |
9A396 Thru 9A3999 |
| Date Range: | Units built after 01-10-2010 |
| Used with Models | 641, 646, and 647 |
| Chair Arms 9A396 Thru 9A3999 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Upholstered Arm Pad Options | ||
| 002-1306-01-xxx | Premium Standard & UltraFree Upholstery | 1 | |
|
002-1306-02-xxx |
Premium Standard & UltraFree Upholstery - Cal 133 |
NLA |
|
| 002-1306-03-xxx | Ultra-Premium Upholstery | 1 | |
|
002-1306-04-xxx |
Ultra- Premium Uph-Cal 133 | ||
|
2 |
Chair Arm Mechanism Options - includes items 3 thru 18 | ||
| 029-4718-01 | LH - shown exploded | 1 | |
| 029-4718-00 | RH | 1 | |
|
3 |
041-0625-00 | Nut - apply Loctite 242 | 1 |
|
4 |
030-1660-00-312 | Arm Weldment | 1 |
|
5 |
053-1763-00-312 | Bottom Cover | 1 |
|
6 |
042-0606-01 | Clevis Pin | 1 |
|
7 |
053-1332-0x | Pivot Handle | 1 |
|
8 |
042-0056-05 | Retaining Ring | 2 |
|
9 |
045-0001-129 | Spherical Washer | 1 |
|
10 |
041-0026-03 | Nut | 1 |
| 11 | 025-0042-11 | Spring | 1 |
|
12 |
Shaft Weldment Options | ||
| 030-1658-01-312 | LH Shaft Weldment - shown exploded | 1 | |
| 030-1658-00-312 | RH Shaft Weldment | 1 | |
|
13 |
042-0606-00 | Clevis Pin | 1 |
|
14 |
053-1339-01 | Retainer Clip | 1 |
|
15 |
016-0946-00 | Indexing Plunger | 1 |
|
16 |
Screw #10-24 x 1/2” | 6 | |
|
17 |
016-0392-04 | Flange Bearing | 2 |
| 18 | 050-6916-00 | Lock Plate | 1 |
| 19 | Chair Arm Upholstery Options - Reference Only | ||
| 9A396001-xxx | Premium Standard & UltraFree Upholstery | - | |
|
9A397001-xxx |
Premium Standard & UltraFree Upholstery-Cal 133 |
NLA |
|
| 9A398001-xxx | Ultra-Premium Upholstery | - | |
|
9A399001-xxx |
Ultra-Premium Upholstery-Cal 133 |
NLA |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
