002-1620-0x 12:00 Unit Controls Connection Kit for the Ultra Chair

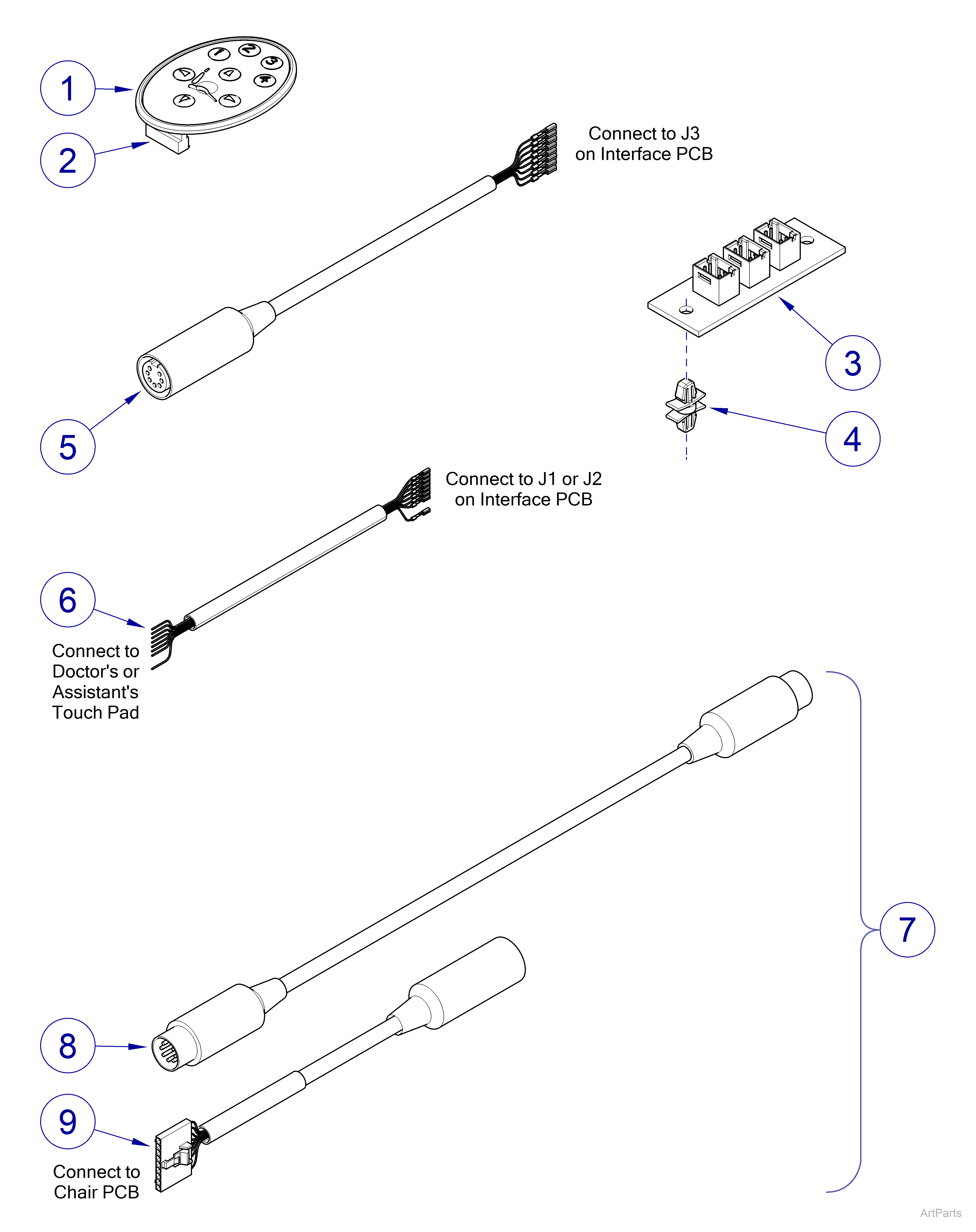

Model Range 002-1620-01 Doctor's and Assistant's Controls
|
Accessory Number |
002-1620-01 |
| Serial Number | All |
| Used with Models | Ultra Chair |
| 002-1620-01 Doctor's and Assistant's Controls Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4998-00 | RH Touch Control Pad | 2 |
|
2 |
015-1324-01 | IDC Connector | 2 |
|
3 |
015-1776-00 | PC Board Assembly | 1 |
|
4 |
015-1455-00 | Standoff | 2 |
|
5 |
015-1800-01 | Harness - Includes item 14 | 1 |
|
6 |
015-1456-04 | Hand Controller Harness - Includes item 14 | 2 |
|
7 |
029-2827-03 | Hardware Kit - Includes items 7 thru 9 | 1 |
|
8 |
015-1570-00 | PCB Jumper Harness | 1 |
|
9 |
015-1571-00 | Extension Harness | 1 |
|
10 |
053-0789-03 | Bushing - not shown | 1 |
|
11 |
102308 | Cable Tie - not shown | 6 |
|
12 |
117759 | Box - not shown | 1 |
|
13 |
175539 |
Bubble Packing - not shown | NLA |
|
14 |
015-0865-04 | Harness Connector | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 002-1620-02 Doctor's Control
|
Accessory Number |
002-1620-02 |
| Serial Number | All |
| Used with Models | Ultra Chair |
| 002-1620-02 Doctor's Control | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4998-00 | RH Touch Control Pad | 1 |
|
2 |
015-1324-01 | IDC Connector | 1 |
|
3 |
015-1776-00 | PC Board Assembly | 1 |
|
4 |
015-1455-00 | Standoff | 2 |
|
5 |
015-1800-01 | Harness - Includes Item 14 | 1 |
|
6 |
015-1456-04 | Hand Control Harness- Includes Item 14 | 1 |
|
7 |
029-2827-03 | Hardware kit - Includes items 7 thru 9 | 1 |
|
8 |
015-1570-00 | PCB Jumper Harness | 1 |
|
9 |
015-1571-00 | Extension Harness | 1 |
|
10 |
053-0789-03 | Bushing - not shown | 1 |
|
11 |
102308 | Cable Tie - not shown | 4 |
|
12 |
117759 | Box - not shown | 1 |
|
13 |
175539 |
Bubble Packing - not shown | NLA |
|
14 |
015-0865-04 | Connector Harness | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

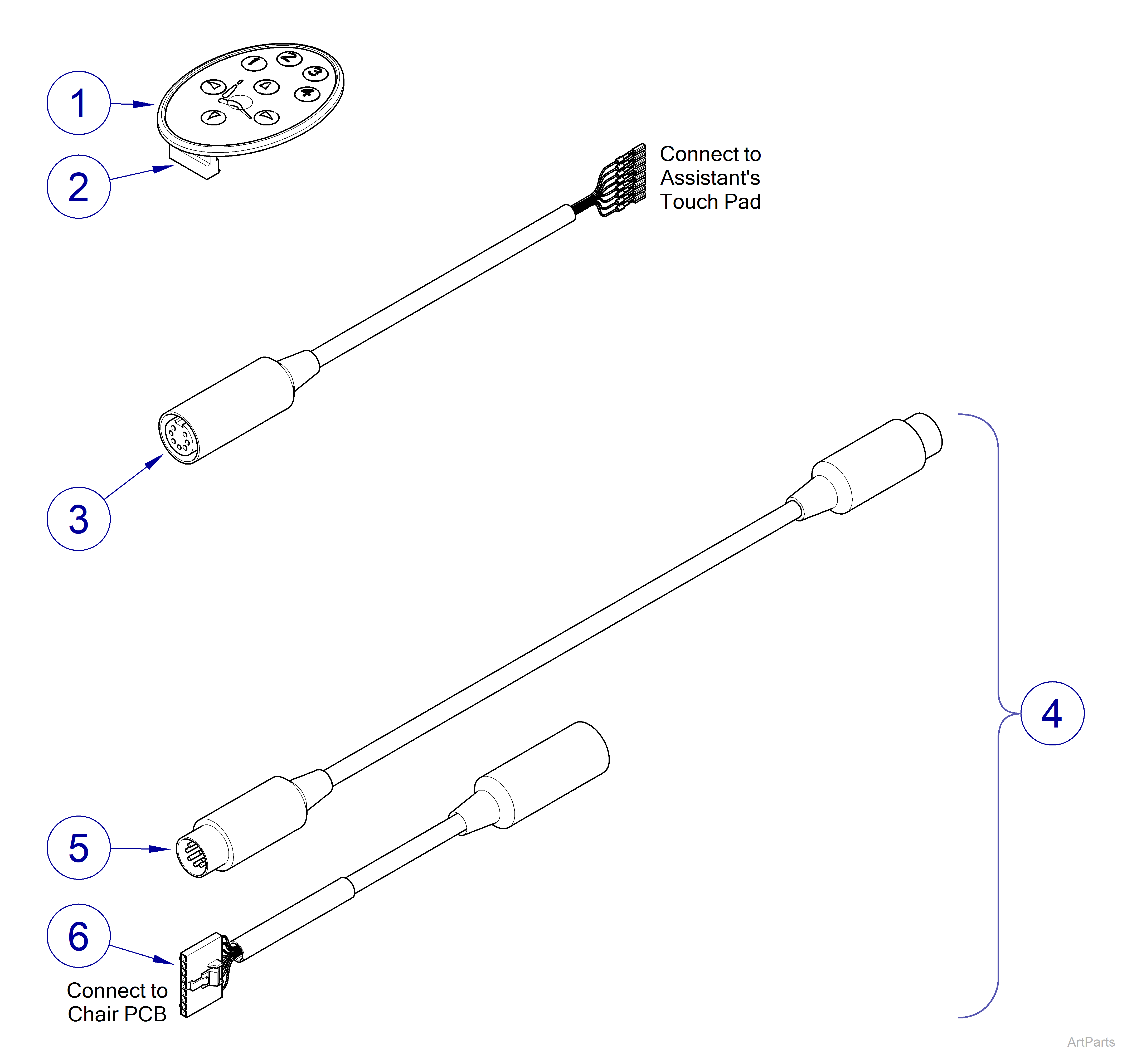

Model Range 002-1620-03 Assistant's Control
|
Accessory Number |
002-1620-03 |
| Serial Number | All |
| Used with Models | Ultra Chair |
| 002-1620-03 Assistant's Control | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4998-00 | RH Touch Control Pad | 1 |
|
2 |
015-1324-01 | IDC Connector | 1 |
|
3 |
015-1569-01 | Harness | 1 |
|
4 |
029-2827-03 | Hardware Kit - Includes items 4-6 | 1 |
|
5 |
015-1570-00 | PCB Jumper Harness | 1 |
|
6 |
015-1571-00 | Extension Harness | 1 |
|
7 |
053-0789-03 | Bushing - not shown | 1 |
|
8 |
102308 | Cable Tie - not shown | 4 |
|
9 |
117759 | Box - not shown | 1 |
|
10 |
175539 |
Bubble Packing - not shown | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
