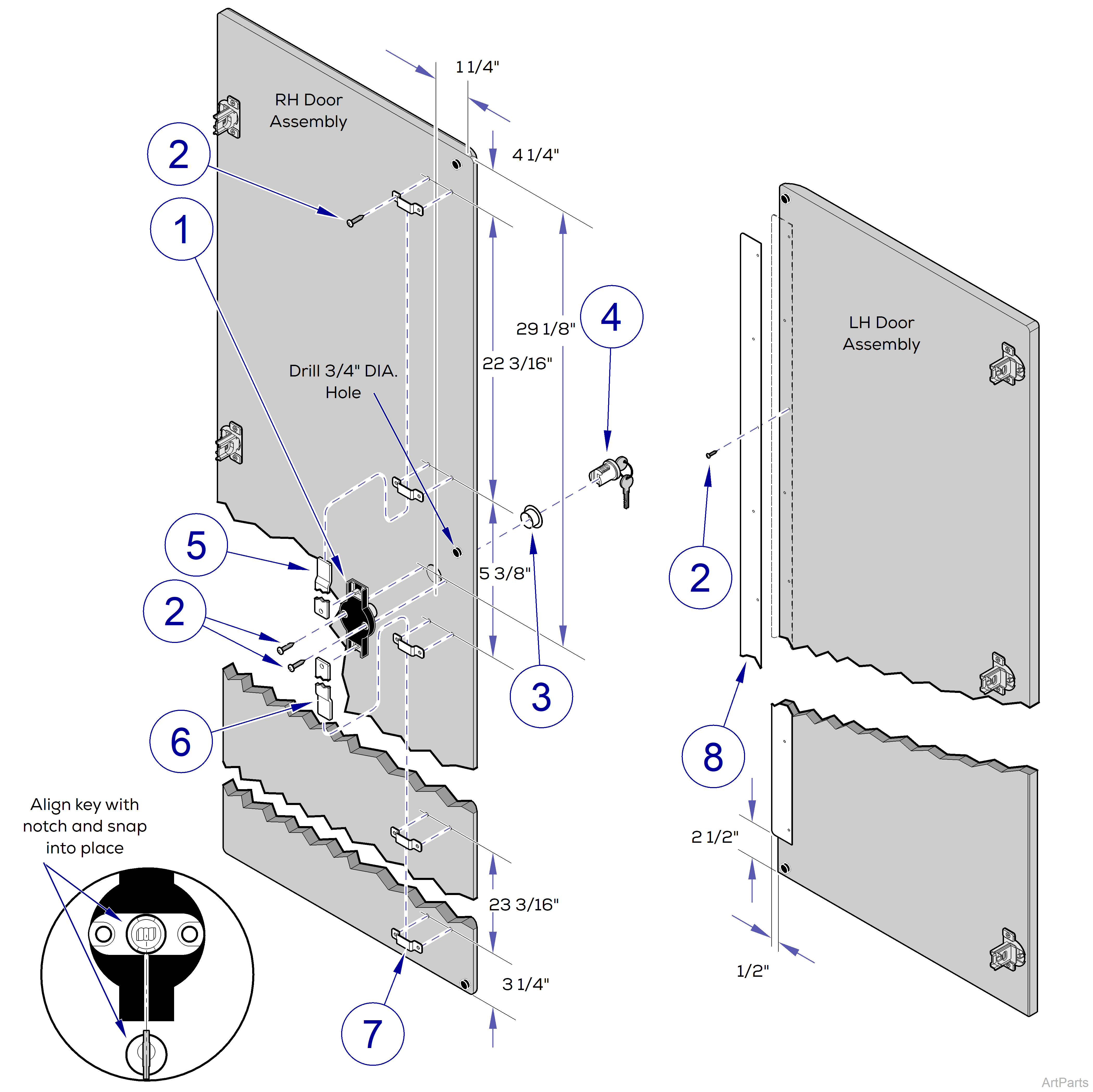

Midmark® Modular Double Door Lock Kits

Accessory Number

 002-1282-00
Date Range: 2006 thru July 2011
Used with Models Midmark® Modular Cabinetry

Double Door Key Lock Kits

Midmark® 69" Double Door Lock Kits
Item Part Number Description Qty

1

 053-0652-00 Locking Bar Retainer

5

2

 040-0006-63 Screw #6 x 5/8" 18

3

 051-1119-00-312 Locking Bar 1

4

 016-0566-00 Lock Body Cylinder 1

5

 016-0567-0X Lock Plug 1

6

 050-0366-00-216 Door Plate 2

7

 016-0564-00 Lock Bezel 1

8

 051-0762-02 Locking Bar 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-0948-58
Date Range: July 2011 thru present
Used with Models Midmark® Modular Cabinetry

Double Door Key Lock Kits

Midmark® 69" Double Door Lock Kits
Item Part Number Description Qty

1

 016-0566-00 Lock Body Cylinder 1

2

 016-0564-00 Lock Bezel 1

3

 016-0567-0X Lock Plug 1

4

 040-0006-63 Screw #6 x 5/8" 18

5

 051-0762-02 Locking Bar 1

6

 051-1119-00-312 Locking Bar 1

7

 053-0652-00 Locking Bar Retainer

5

8

 050-0366-00-216 Door Plate 2

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-0991-00
Date Range: 2006 thru July 2011
Used with Models Midmark® Modular Cabinetry

Double Door Key Lock Kits

Midmark® 84" Double Door Lock Kits
Item Part Number Description Qty

1

 016-0566-00 Dead Bolt Lock Body 1

2

 040-0006-63 Screw #6 x 5/8" 23

3

 016-0564-00 Lock Bezel 1

4

 016-0567-05 Lock Plug 1

5

 051-0763-02 Locking Bar 1

6

 051-0762-02 Locking Bar 1

7

 053-0652-00 Locking Bar Retainer

5

8

050-6709-00-216

 Door Plate NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-0948-57
Date Range: July 2011 thru present
Used with Models Midmark® Modular Cabinetry

Double Door Key Lock Kits

Midmark® 84" Double Door Lock Kits
Item Part Number Description Qty

1

 016-0566-00 Dead Bolt Lock Body 1

2

 040-0006-63 Screw #6 x 5/8" 24

3

 016-0564-00 Lock Bezel 1

4

 016-0567-05 Lock Plug 1

5

 051-0763-02 Locking Bar 1

6

 051-0762-02 Locking Bar 1

7

 053-0652-00 Locking Bar Retainer

5

8

050-6709-00-216

 Door Plate NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

002-0989-00
Date Range: 2006 thru July 2011
Used with Models Midmark® Modular Cabinetry Overhead

Double Door Key Lock Kits

Midmark® Double Door Overhead Lock Kits
Item Part Number Description Qty

1

 016-0645-00 Dead Bolt Lock Body 1

2

 040-0006-63 Screw #6 x 5/8" 7

3

 016-0567-05 Lock Plug 1

4

 016-0564-00 Lock Bezel 1

5

 016-0639-00 Strike Plate 1

6

 050-0366-00-216 Door Plate 1

7

002-0989-00

 Overhead Lock Kit - includes 1 thru 6

NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

002-0917-00 thru -03
Date Range: 2006 thru July 2011
Used with Models Midmark® Modular Cabinetry Base

Double Door Key Lock Kits

Midmark® Double Door Base Lock Kits
Item Part Number Description Qty

1

 016-0639-00 Strike Plate 1

2

 040-0006-63 Screw #6 x 5/8" 7

3

 016-0645-00 Lock Body Cylinder 1

4

 016-0564-00 Lock Bezel 1

5

 016-0567-05 Lock Plug 1

6

 050-0366-00-216 Door Plate 1

7

 Mullion Options
    Bulk Storage Mullion NLA
  050-6523-00-216 24" Mullion 1
  050-6523-01-216 30" Mullion 1
  050-6523-02-216 36" Mullion 1

8

 040-0010-109 Screw #10-24 x 3/8” 4

9

 Lock Kit Options - includes 1 thru 8


002-0917-00

 Bulk Storage Lock Kit

NLA



002-0917-01

 24" Lock Kit

NLA



002-0917-02

 30" Lock Kit

NLA



002-0917-03

 36" Lock Kit

NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
