9A328 and 9A350 Chair Arms and Brackets
Model Range 9A328002
|
Accessory Number |
9A328002 |
| Serial Number | All |
| Used with Models | 230 and 630 (-001 thru -009) |
| 9A328002 Chair Arms with Brackets | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3298-00 |
Arm Rest Assembly - Includes items 2 thru 18 |
NLA |
|
2 |
054-0340-00 | Armrest | 1 |
|
3 |
041-0625-00 | Nut | 1 |
|
4 |
050-5612-00 | Lock Plate | 1 |
|
5 |
016-0392-04 | Flange Bearing | 2 |
|
6 |
030-1423-50 |
Armrest Pull | NSS |
|
7 |
042-0056-05 | Snap Ring | 2 |
|
8 |
040-0250-157 | Screw | 4 |
|
9 |
016-0946-00 | Indexing Plunger | 1 |
|
10 |
053-1332-00 | Arm Rest Pivot Release | 1 |
|
11 |
042-0606-01 | Clevis Pin | 1 |
|
12 |
045-0001-129 | Spherical Washer | 1 |
|
13 |
041-0026-03 | Nut | 1 |
|
14 |
042-1332-00 | Arm Rest Pivot Release | 1 |
|
15 |
042-0606-00 | Clevis Pin | 1 |
|
16 |
025-0042-11 | Compression Spring | 1 |
|
17 |
030-1525-50 | Arm Tube | 1 |
|
18 |
030-1542-00 | Mounting Bracket | 1 |
|
19 |
041-0375-01 | Nut | 3 |
|
20 |
045-0001-09 | Lock Washer | 3 |
|
21 |
040-0375-02 | Bolt | 3 |
| 22 | 9A328002 | Set of 2 Chair Arms with Brackets - Includes items 1 thru 21 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

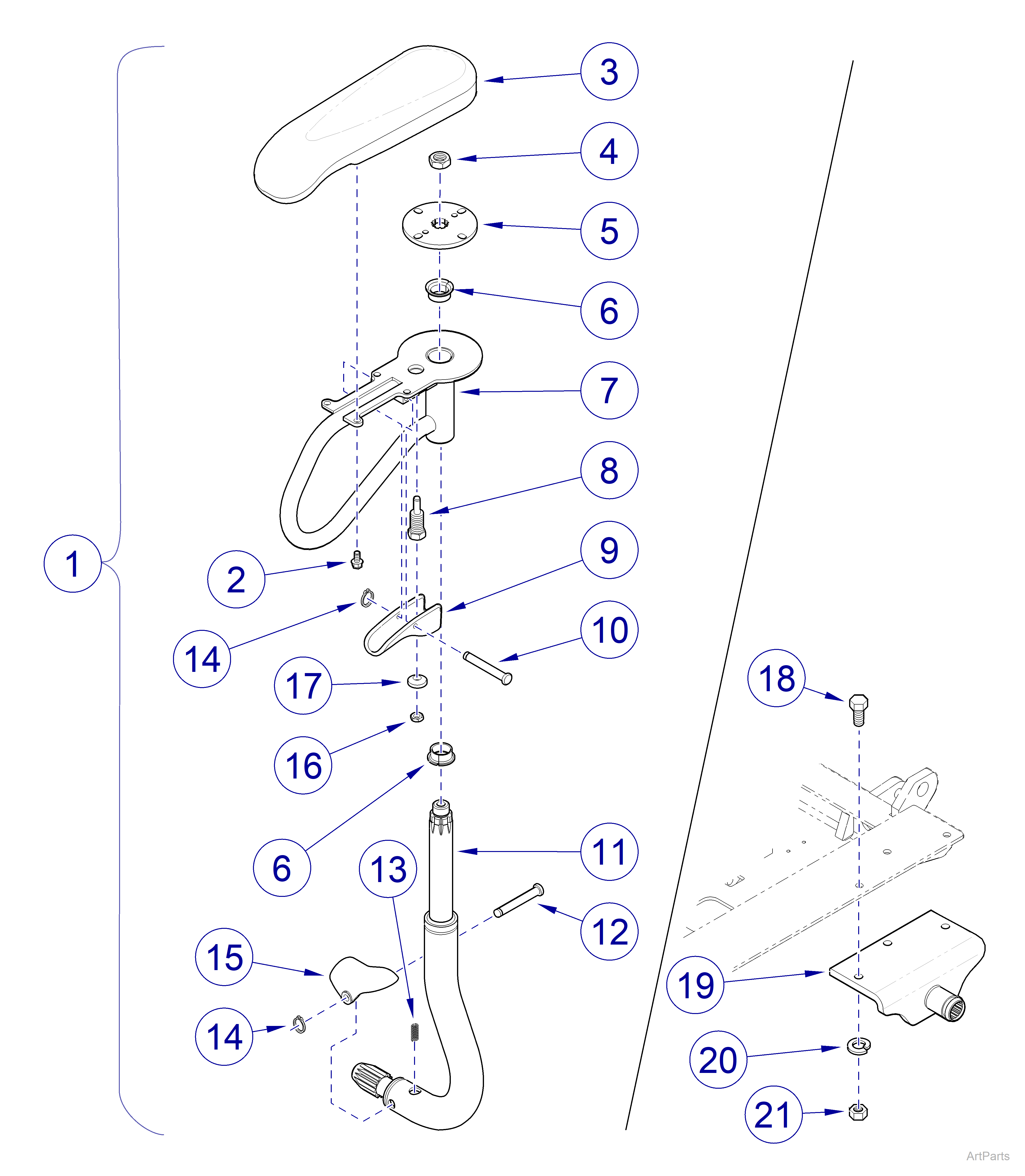

Model Range 9A350002 and 9A350003
|
Accessory Number |
9A350002 | 9A350003 |
| Serial Number | All | All |
| Used with Models | 230 and 630 (-001 thru -009) | 230 and 630 (-001 thru -009) |
| 9A350002 Mounting Brackets and 9A350003 Chair Arms | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3571-00 | Arm Rest Assembly - Includes items 2 thru 18 | 2 |
|
2 |
040-0250-157 | Screw | 4 |
|
3 |
054-0340-00 | Armrest | 1 |
|
4 |
041-0625-00 | Nut | 1 |
|
5 |
050-5612-00 | Lock Plate | 1 |
|
6 |
016-0392-04 | Flange Bearing | 2 |
|
7 |
030-1423-50 |
Armrest Pull | NSS |
|
8 |
016-0946-00 | Indexing Plunger | 1 |
|
9 |
053-1332-00 | Arm Rest Pivot Release | 1 |
|
10 |
042-0606-01 | Clevis Pin | 1 |
|
11 |
030-1525-50 | Arm Tube | 1 |
|
12 |
042-0606-00 | Clevis Pin | 1 |
|
13 |
025-0042-11 | Compression Spring | 1 |
|
14 |
042-0056-05 | Snap Ring | 2 |
|
15 |
042-1339-00 | Arm Rest Pivot Release | 1 |
|
16 |
041-0026-03 | Nut | 1 |
|
17 |
045-0001-129 | Spherical Washer | 1 |
|
18 |
040-0375-02 | Bolt | 6 |
|
19 |
030-1542-00 | Mounting Bracket | 2 |
|
20 |
045-0001-09 | Lock Washer | 6 |
|
21 |
041-0375-01 | Nut | 6 |
|
22 |
9A350002 | Mounting Brackets - Includes 2 Bracket Sets, items 18 thru 21 | 1 |
|
23 |
9A350003 | Chair Arms - Includes 2 Armrest Assemblies and item 1 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
