Midmark® Modular Drawer Lock Kits

Accessory Number

 002-0918-00 thru -01
Serial Number All
Used with Models Midmark® Modular Cabinetry

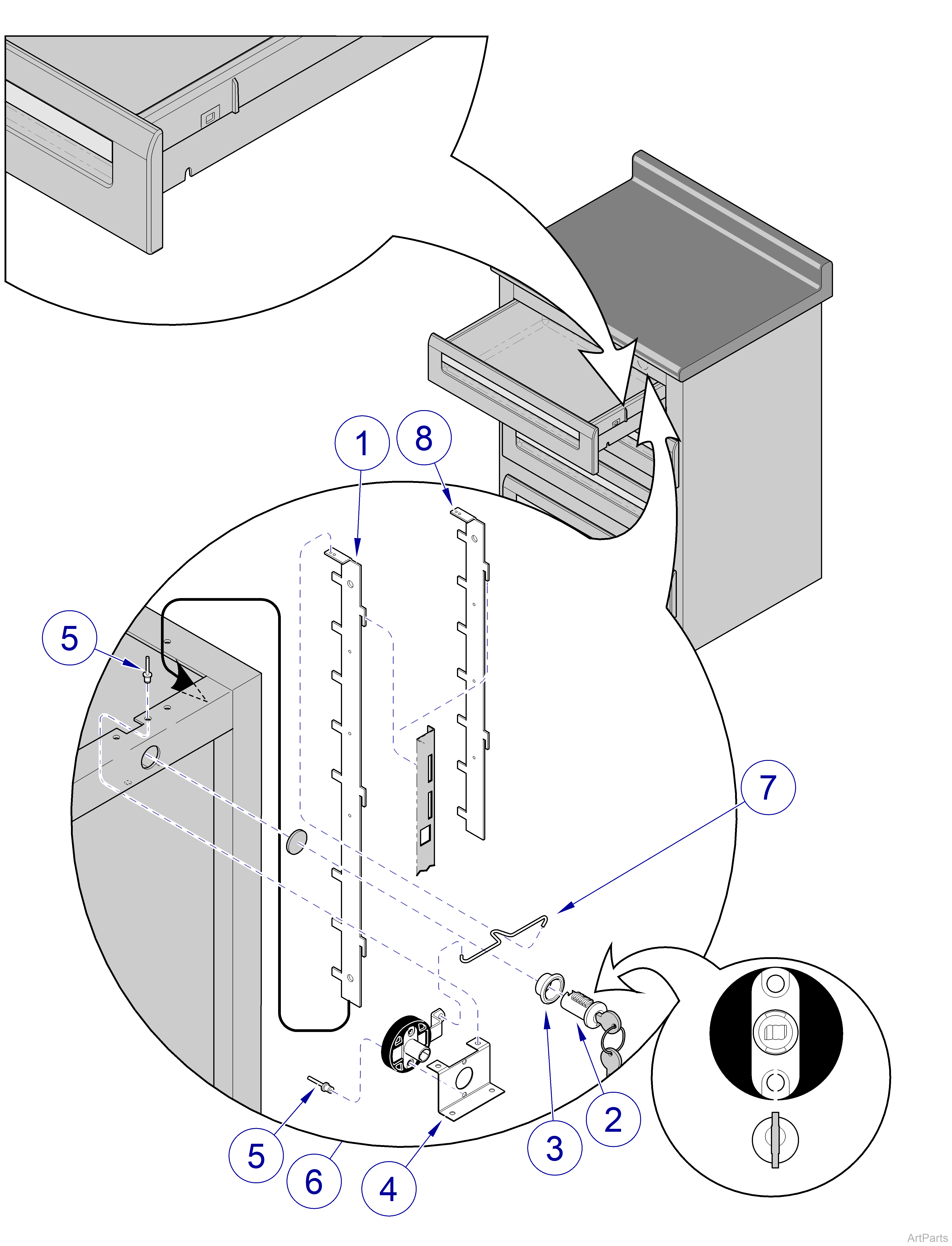

2" and 4" Drawer Lock Kits

2" and 4" Drawer Lock Kits
Item Part Number Description Qty

1

050-6778-00-216

 Cabinet Lock Bar - used with (4) 2" or (2) 4" drawer NSS

2

 016-0567-05 Lock Plug 1

3

 016-0564-00 Lock Bezel 1

4

050-4495-00-216

 Lock Bracket

NLA

5

 042-0010-04 5/32” Dia. 1/4” Grip Pop Rivet 4

6

 016-0644-00 Cylinder Lock Body 1

7

 025-0083-00 Lock Bar Spring 1

8

050-6779-00-216

 Cabinet Lock Bar - used with (2) 2" or (1) 4" drawer

NLA

9

002-0918-00

 (2) 2” or (1) 4” Drawers - includes 1 thru 8 NLA

10

002-0918-01

 (4) 2” or (2) 4” Drawers - includes 1 thru 8

NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

002-0993-00 thru -04

002-0994-00 thru -04
Serial Number All All
Used with Models Midmark® Modular Cabinetry Midmark® Modular Cabinetry

File Drawer Lock Kits

Drawer Lock Assembly
Item Part Number Description Qty

1

 Dual Lock Assembly Options


029-3910-00

 18”w Dual Lock Assembly NSS


029-3910-01

 21”w Dual Lock Assembly NSS


029-3910-02

 24”w Dual Lock Assembly NSS


029-3910-03

 30”w Dual Lock Assembly NSS


029-3910-04

 36”w Dual Lock Assembly NSS

2

 016-0564-00 Lock Bezel 1

3

 016-0567-05 Lock Plug 1

4

 042-0010-03 5/32” Dia. 1/8” Grip Pop Rivet 8

5

 Lock Kit Options - includes 1 thru 4


002-0993-00

 30" x 18”w File Cabinet Lock Kit NLA


002-0993-01

 30" x 21”w File Cabinet Lock Kit NLA


002-0993-02

 30" x 24”w File Cabinet Lock Kit NLA


002-0993-03

 30" x 30”w File Cabinet Lock Kit NLA


002-0993-04

 30" x 36”w File Cabinet Lock Kit NLA


002-0994-00

 36" x 18”w File Cabinet Lock Kit NLA


002-0994-01

 36" x 21”w File Cabinet Lock Kit NLA


002-0994-02

 36" x 24”w File Cabinet Lock Kit NLA


002-0994-03

 36" x 30”w File Cabinet Lock Kit NLA


002-0994-04

 36" x 36”w File Cabinet Lock Kit NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

002-0993-00 thru -04

002-0994-00 thru -04
Serial Number All All
Used with Models Midmark® Modular Cabinetry Midmark® Modular Cabinetry

File Drawer Lock Kits

File Drawer Drawer Locking Bar Kits
Item Part Number Description Qty

1

 L.H. Cabinet Lock Bar Options


050-6794-01-216

 30”w L.H. Cabinet Lock Bar NSS


050-6776-01-216

 36”w L.H. Cabinet Lock Bar NSS

2

 016-0567-05 Lock Plug 1

3

 016-0564-00 Lock Bezel 1

4

 Lock Bracket Assembly Options


029-3910-00

 18”w Lock Bracket Assembly NSS


029-3910-01

 21”w Lock Bracket Assembly NSS


029-3910-02

 24”w Lock Bracket Assembly NSS


029-3910-03

 30”w Lock Bracket Assembly NSS


029-3910-04

 36”w Lock Bracket Assembly NSS

5

 042-0010-03 5/32” Dia. 1/8” Grip Pop Rivet 8

6

 025-0083-00 Lock Bar Spring 2

7

 R.H. Cabinet Lock Bar Options


050-6794-00-216

 30”w R.H. Cabinet Lock Bar NSS


050-6776-00-216

 36”w R.H. Cabinet Lock Bar NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

002-0993-00 thru -04

002-0994-00 thru -04
Serial Number All All
Used with Models Midmark® Modular Cabinetry Midmark® Modular Cabinetry

File Drawer Lock Kits

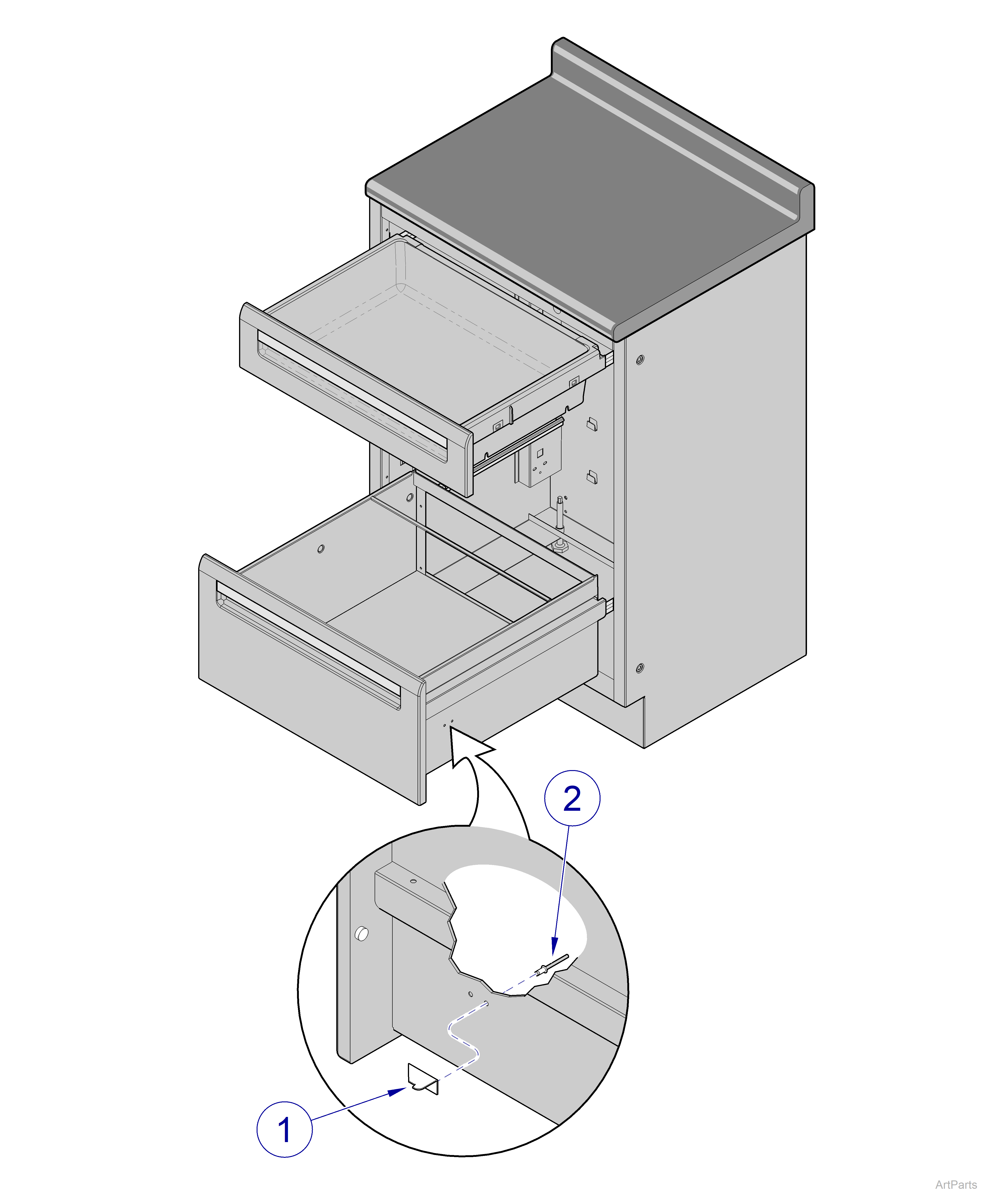

File Drawer Locking Bracket
Item Part Number Description Qty

1

 File Drawer Locking Bracket Options
  050-6345-00-216 R.H. Locking Bracket 2
  050-6345-01-216 L.H. Locking Bracket 2

2

 042-0010-15 3/16” Dia. 1/8” Grip Pop Rivet 2

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

002-0919-00 thru -01
Serial Number All
Used with Models Midmark® Modular Cabinetry

All Drawer Lock Kits

All Drawer Lock Kits
Item Part Number Description Qty

1

050-6758-00-216

 36" Cabinet Lock Bar

NLA

2

 016-0567-05 Lock Plug 1

3

 016-0564-00 Lock Bezel 1

4

050-4495-00-216

 Lock Bracket

NLA

5

 042-0010-04 5/32” Dia. 1/4” Grip Pop Rivet 6

6

 016-0644-00 Cylinder Lock Body 1

7

 025-0083-00 Lock Bar Spring 1

8

050-6780-00-216

 30" Cabinet Lock Bar

NLA

9

002-0919-00

 30" Height Cabinet

NLA

10

002-0919-01

 36" Height Cabinet

NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
