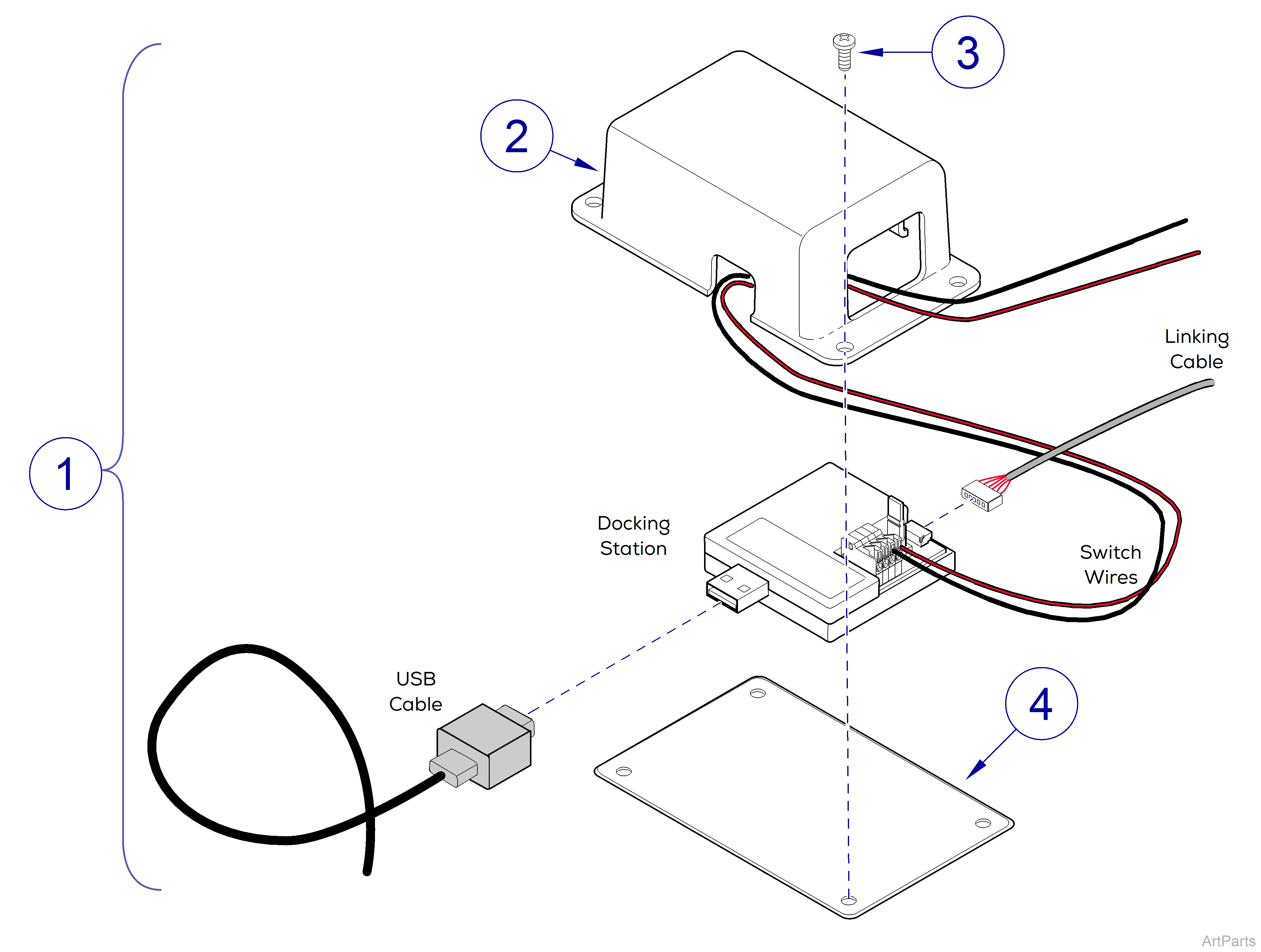

153831-xxx Sopro Intraoral Camera Accessory Kits
Model Range 153831-015 thru 153831-017
|
Accessory Number |
153831-015 thru 153831-017 |
| Serial Number | All |
| Used with Models | Elevance and Procenter Delivery |
| Sopro Camera Accessory Kits | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Sopro Camera Accessory Kit Options - Includes Items 2 thru 4 | ||
|
153831-015 |
Kit for Elevance Continental-Style Delivery |
NLA |
|
| 153831-016 | Kit for Elevance Standard Delivery | 1 | |
| 153831-017 | Kit for Procenter Delivery | 1 | |
|
2 |
053-2255-02-216 | Cover | 1 |
|
3 |
040-0006-97 | Screw #6-32 x 0.375 Pan Head Phillips | 4 |
|
4 |
029-2731-00 |
Mounting Plate | NSS |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

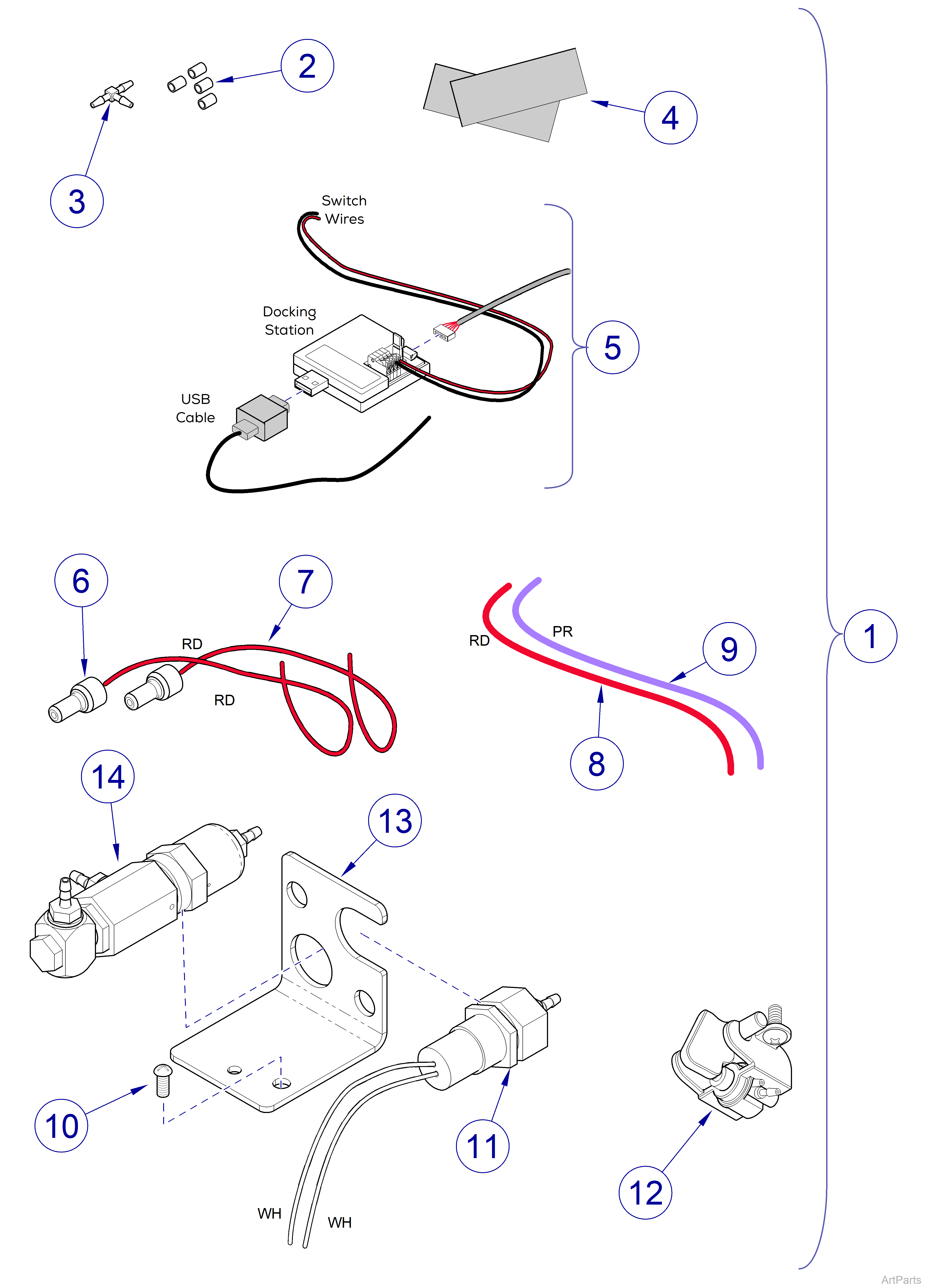

Model Range 153831-014
|
Accessory Number |
153831-014 |
| Serial Number | All |
| Used with Models | Procenter 12:00 O'Clock Delivery |
| Sopro Camera Accessory Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
153831-014 | Sopro Camera Kit for Procenter 12:00 Delivery - Includes items 2 thru 14 | 1 |
|
2 |
117479 | Uni-clamp 1/8" OD | 4 |
|
3 |
117477 | Barb Tee 3-Way for 1/8” OD Tubes | 1 |
|
4 |
Hook and Loop Fastener Tape Component Options | ||
| 053-0105-33 | Loop Fastener Tape | 1 | |
| 053-0131-31 | Hook Fastener Tape | 1 | |
|
5 |
Sopro Docking Station Components | NSS | |
|
6 |
116688 | Closed End Wire Splice | 2 |
|
7 |
22 GA Red Wire | NLA | |
|
8 |
1/8" OD Red Tubing | NLA | |
|
9 |
1/8" OD Purple Tubing | NLA | |
|
10 |
040-0006-97 | #6-32 x 3/8 Phillips Head Screw | 1 |
|
11 |
120769 | Normally Open (NO) Pressure Switch | 1 |
|
12 |
Actuator Assembly Holder | NSS | |
|
13 |
Bracket | NSS | |
|
14 |
014-0586-00 | Normally Open (NO) Pilot Valve, 3-way | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
