9A584001 Conversion Kit w/cover
|
Accessory Number |
9A584001 |
| Serial Number | All |
| Used with Models | 255 -001 and -002, -021 and -022 |

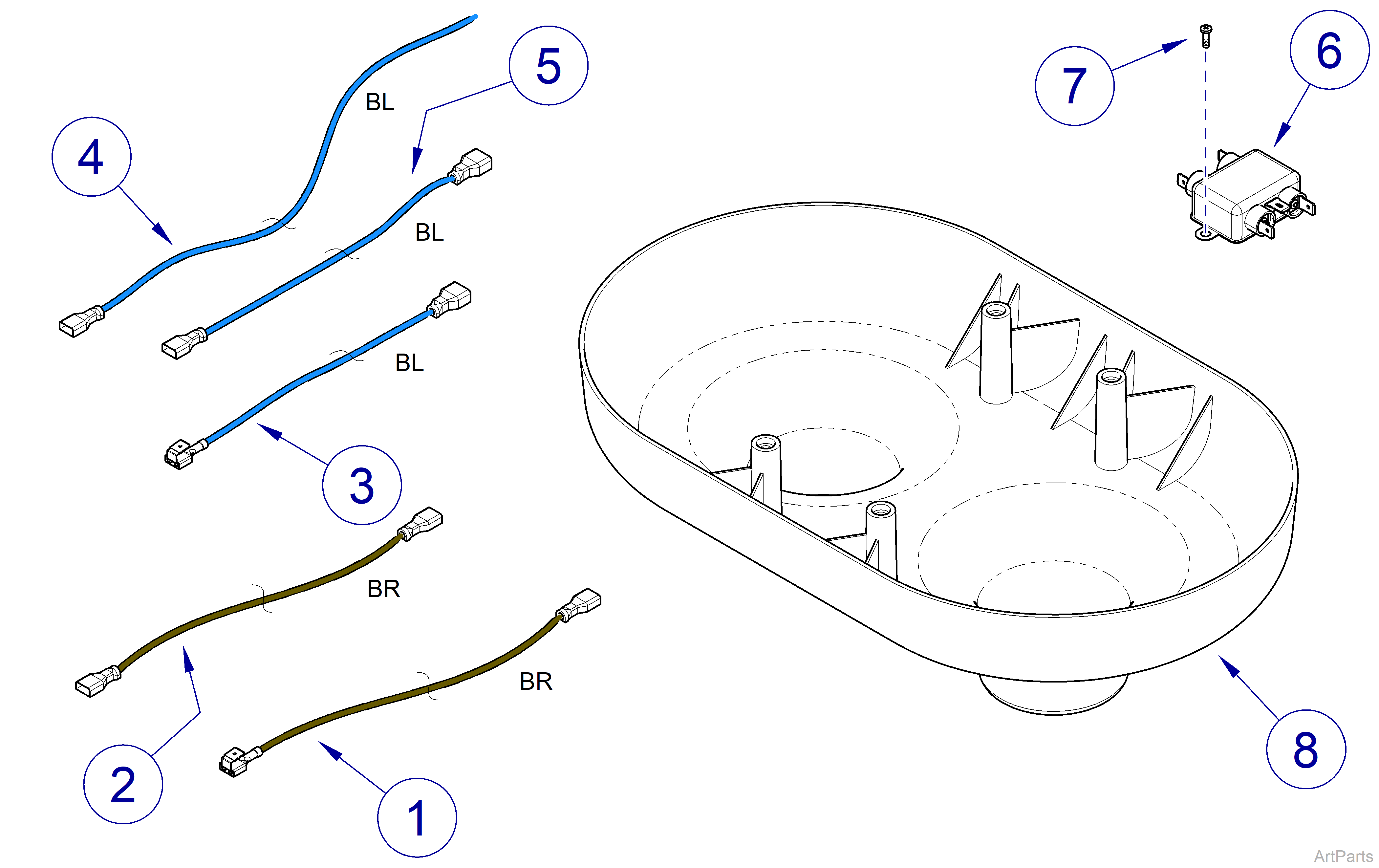

| 9A584001 Conversion Kit w/cover | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
015-0737-52 | Brown Wire w/ multiple terminal | 1 |
|
2 |
015-0737-51 | Brown Wire | 1 |
|
3 |
015-0737-49 | Light Blue Wire w/ multiple terminal | 1 |
|
4 |
015-0737-47 | Light Blue Wire w/ one terminal | 1 |
|
5 |
015-0737-48 | Light Blue Wire | 1 |
|
6 |
015-3384-00 | Filter | 1 |
|
7 |
040-0010-18 | Screw #10-24 x 3/8” Pan Head | 2 |
|
8 |
053-0758-00 | Double Light Cover | 1 |
|
9 |
Cable Tie - not shown | NSS | |
|
10 |
9A584001 | Conversion Kit w/cover - includes items 1 - 10 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
