9A550 Articulating Chair Arm

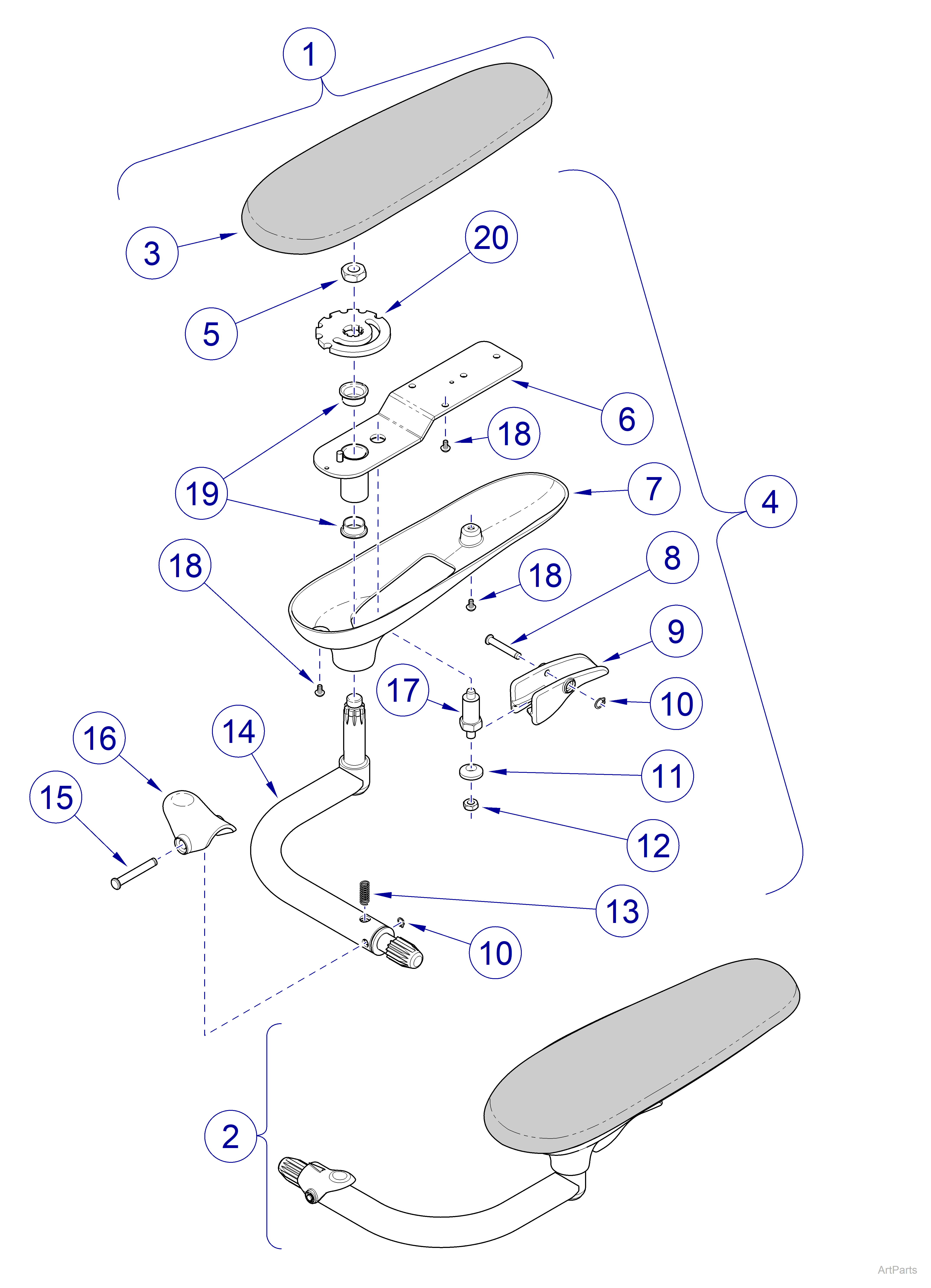

28" Chair Arm
|
Accessory Number |
9A550 |
| Serial Number | All |
| Used with Models | 630 -010 thru -013, 630 -020 thru -023 and 631 |
Buy whole 9A550 accessory as matched set.
| 28” Chair Arms - Set | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
LH Chair Arm Assy Options - includes Items 3 and 4 | ||
|
029-5960-01-xxx |
Premium Upholstery |
NLA |
|
|
029-5960-05-xxx |
Premium Uph - Cal 133 | NLA | |
|
029-5960-09-xxx |
Ultra-Premium Upholstery |
NLA |
|
|
029-5960-13-xxx |
Ultra- Premium Uph-Cal 133 | NLA | |
|
2 |
RH Chair Arm Assy - includes Items 3 and 4 | ||
|
029-5960-00-xxx |
Premium Upholstery |
NLA |
|
|
029-5960-04-xxx |
Premium Uph - Cal 133 | NLA | |
|
029-5960-08-xxx |
Ultra-Premium Upholstery |
NLA |
|
|
029-5960-12-xxx |
Ultra- Premium Uph-Cal 133 | NLA | |
|
3 |
Upholstered Arm Rest Options - only includes 1 pad | ||
| 002-1306-01-xxx | Premium Upholstery | 1 | |
|
002-1306-02-xxx |
Premium Uph - Cal 133 | NLA | |
| 002-1306-03-xxx | Ultra-Premium Upholstery | 1 | |
|
002-1306-04-xxx |
Ultra- Premium Uph-Cal 133 | NLA | |
|
4 |
Chair Arm Mechanism Options - includes Items 5 - 20 | ||
|
029-5961-01 |
LH - shown |
NLA |
|
|
029-5961-00 |
RH |
NLA |
|
|
5 |
041-0625-00 | Nut - Torque to 20 ft-lb | 1 |
|
6 |
030-2146-00-312 | Arm Weldment | 1 |
|
7 |
053-1763-00-312 | Bottom Cover | 1 |
|
8 |
042-0606-01 | Clevis Pin | 1 |
|
9 |
053-1332-00 | Pivot Handle | 1 |
|
10 |
042-0056-05 | Retaining Ring | 2 |
|
11 |
045-0001-129 | Spherical Washer | 1 |
|
12 |
041-0026-03 | Nut - apply Loctite 242 | 1 |
|
13 |
025-0042-11 | Spring | 1 |
|
14 |
Shaft Weldment Options | ||
| 030-2142-01-312 | LH - shown | 1 | |
| 030-2142-00-312 | RH | 1 | |
|
15 |
042-0606-00 | Clevis Pin | 1 |
|
16 |
053-1339-01 | Retainer Clip | 1 |
|
17 |
016-0946-00 | Indexing Plunger | 1 |
|
18 |
Screw #10-24 x 1/2” | 6 | |
|
19 |
016-0392-04 | Flange Bearing | 2 |
|
20 |
050-9111-00 | Lock Plate | 1 |
|
21 |
Upholstery Options | ||
| 9A550001-xxx | w/Premium Upholstery | 1 | |
|
9A550002-xxx |
w/Premium Upholstry-Cal 133 | NLA | |
| 9A550003-xxx | w/Ultra-Premium Upholstery | 1 | |
|
9A550004-xxx |
w/Ultra-Premium Upholstery-Cal 133 | NLA | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

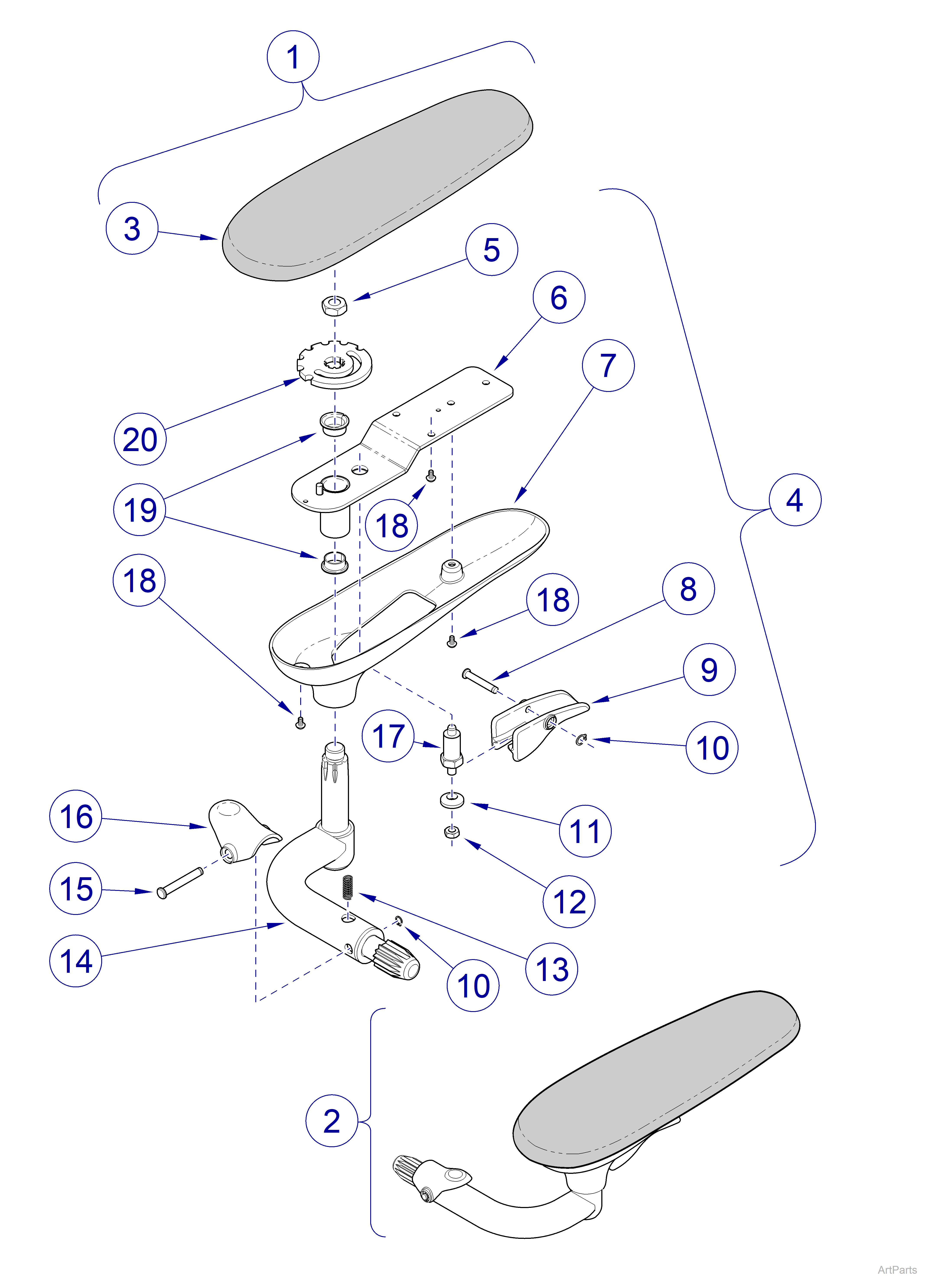

32" Chair Arm
|
Accessory Number |
9A550 |
| Serial Number | All |
| Used with Models | 630 -010 thru -013, 630 -020 thru -023 and 631 |
Buy whole 9A550 accessory as matched set.
| 32” Chair Arms - Set | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
LH Chair Arm Assy Options - includes Items 3 and 4 | ||
|
029-5960-03-xxx |
Premium Upholstery |
NLA |
|
|
029-5960-07-xxx |
Premium Uph - Cal 133 | NLA | |
|
029-5960-11-xxx |
Ultra-Premium Upholstery |
NLA |
|
|
029-5960-15-xxx |
Ultra- Premium Uph-Cal 133 | NLA | |
|
2 |
RH Chair Arm Assy - includes Items 3 and 4 | ||
|
029-5960-02-xxx |
Premium Upholstery |
NLA |
|
|
029-5960-06-xxx |
Premium Uph - Cal 133 | NLA | |
|
029-5960-10-xxx |
Ultra-Premium Upholstery |
NLA |
|
|
029-5960-14-xxx |
Ultra- Premium Uph-Cal 133 | NLA | |
|
3 |
Upholstered Arm Rest Options - only includes 1 pad | ||
| 002-1306-01-xxx | Premium Upholstery | 1 | |
|
002-1306-02-xxx |
Premium Uph - Cal 133 | NLA | |
| 002-1306-03-xxx | Ultra-Premium Upholstery | 1 | |
|
002-1306-04-xxx |
Ultra- Premium Uph-Cal 133 | NLA | |
|
4 |
Chair Arm Mechanism Options - includes Items 5 - 20 | ||
|
029-5961-03 |
LH - shown |
NLA |
|
|
029-5961-02 |
RH |
NLA |
|
|
5 |
041-0625-00 | Nut - Torque to 20 ft-lb | 1 |
|
6 |
030-2146-00-312 | Arm Weldment | 1 |
|
7 |
053-1763-00-312 | Bottom Cover | 1 |
|
8 |
042-0606-01 | Clevis Pin | 1 |
|
9 |
053-1332-00 | Pivot Handle | 1 |
|
10 |
042-0056-05 | Retaining Ring | 2 |
|
11 |
045-0001-129 | Spherical Washer | 1 |
|
12 |
041-0026-03 | Nut - apply Loctite 242 | 1 |
|
13 |
025-0042-11 | Spring | 1 |
|
14 |
Shaft Weldment Options | ||
| 030-2142-03-312 | LH - shown | 1 | |
| 030-2142-02-312 | RH | 1 | |
|
15 |
042-0606-00 | Clevis Pin | 1 |
|
16 |
053-1339-01 | Retainer Clip | 1 |
|
17 |
016-0946-00 | Indexing Plunger | 1 |
|
18 |
Screw #10-24 x 1/2” | 6 | |
|
19 |
016-0392-04 | Flange Bearing | 2 |
|
20 |
050-9111-00 | Lock Plate | 1 |
|
21 |
Upholstery Options | ||
| 9A550005-xxx | w/Premium Upholstery | 1 | |
|
9A550006-xxx |
w/Premium Upholstry-Cal 133 | NLA | |
| 9A550007-xxx | w/Ultra-Premium Upholstery | 1 | |
|
9A550008-xxx |
w/Ultra-Premium Upholstery-Cal 133 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
