Midmark® Modular Single Door Lock Kits

Accessory Number

 002-1281-00
Date Range: 2006 thru July 2011
Used with Models Midmark® Modular Cabinetry

Midmark Modular Single Door Lock Kit

69" Single Door Lock Kits
Item Part Number Description Qty

1

 016-0644-00 Dead Bolt Lock Body 1

2

 040-0006-63 #6 x 5/8” Screw 2

3

 016-0564-00 Lock Bezel 1

4

 016-0567-0X Lock Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

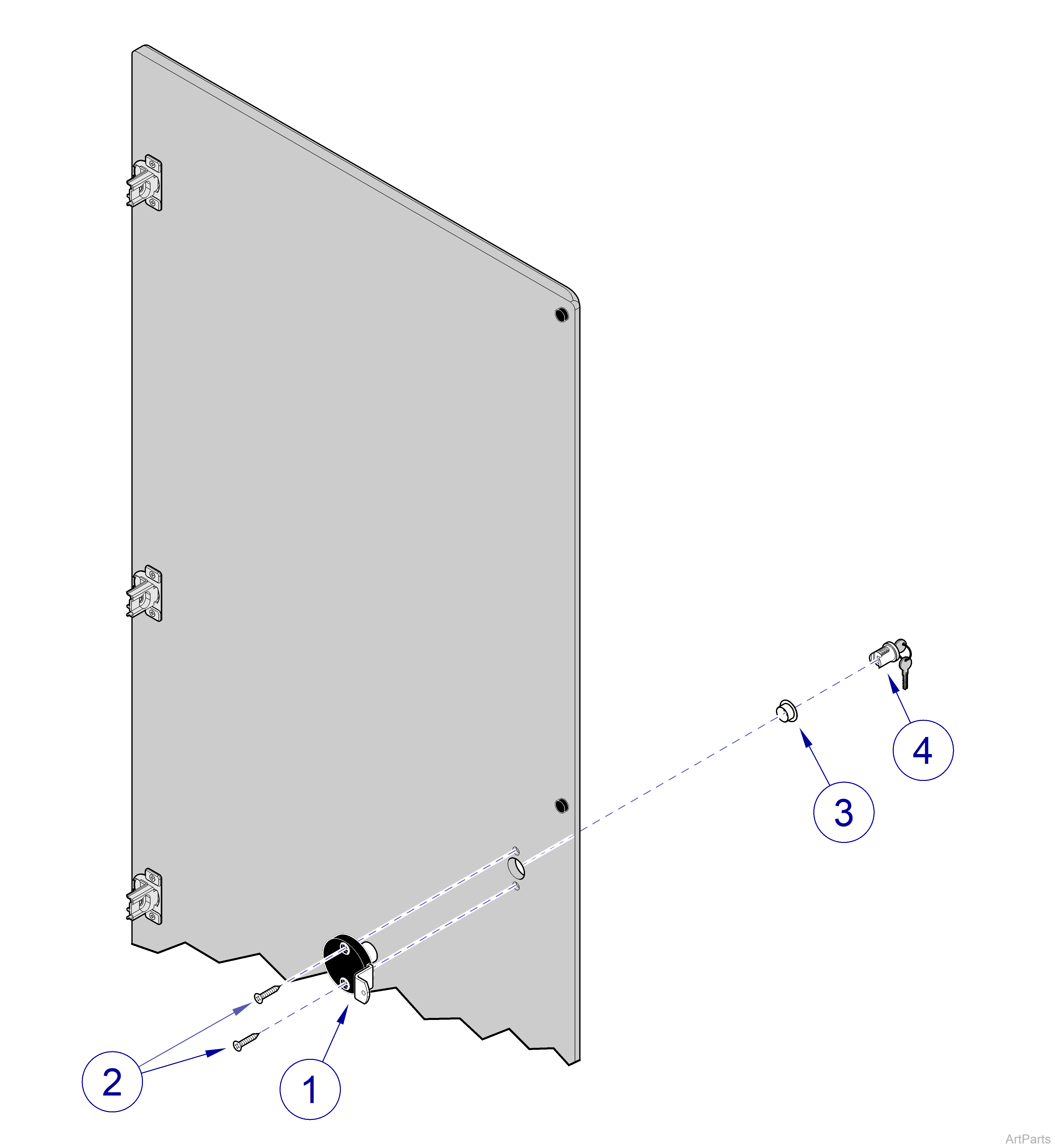

Accessory Number

 002-0948-56
Date Range: July 2011 thru present
Used with Models Midmark® Modular Cabinetry

Midmark Modular Single Door Lock Kit

69" Single Door Lock Kits
Item Part Number Description Qty

1

 016-0644-00 Dead Bolt Lock Body 1

2

 040-0006-63 #6 x 5/8” Screw 2

3

 016-0564-00 Lock Bezel 1

4

 016-0567-0X Lock Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

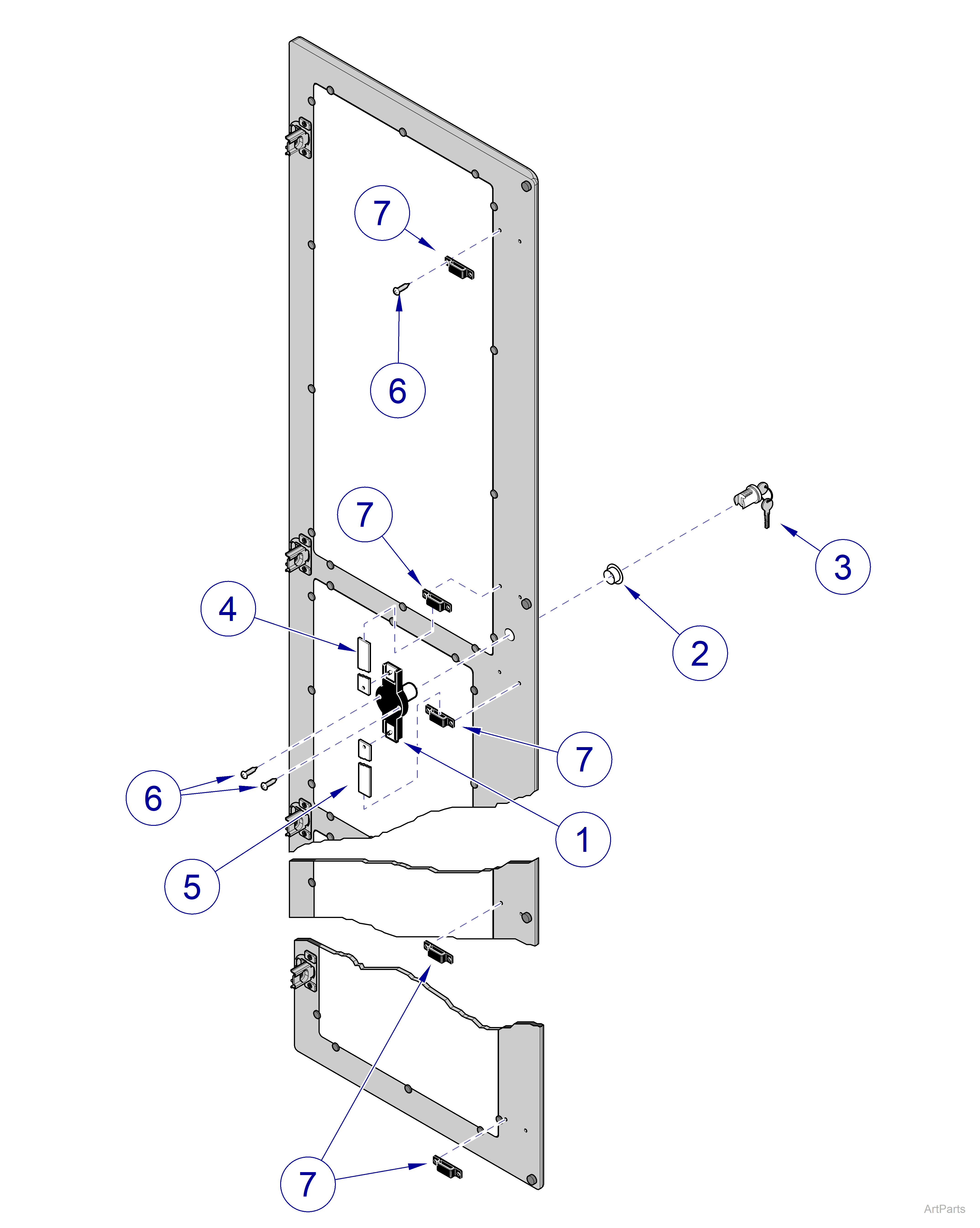

Accessory Number

 002-0948-60
Date Range: July 2011 thru present
Used with Models Midmark® Modular Cabinetry

Midmark Modular Single Door Lock Kit

69" Single Window Door Lock Kits
Item Part Number Description Qty

1

 016-0566-00 Lock Body Cylinder 1

2

 016-0564-00 Lock Bezel 1

3

 016-0567-05 Lock Plug 1

4

 051-1119-00-312 Lock Bar 1

5

 051-0762-02 Lock Bar 1

6

 040-0006-63 #6 x 5/8” Screw 12

7

 053-0652-00 Lock Bar Retainer 5

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

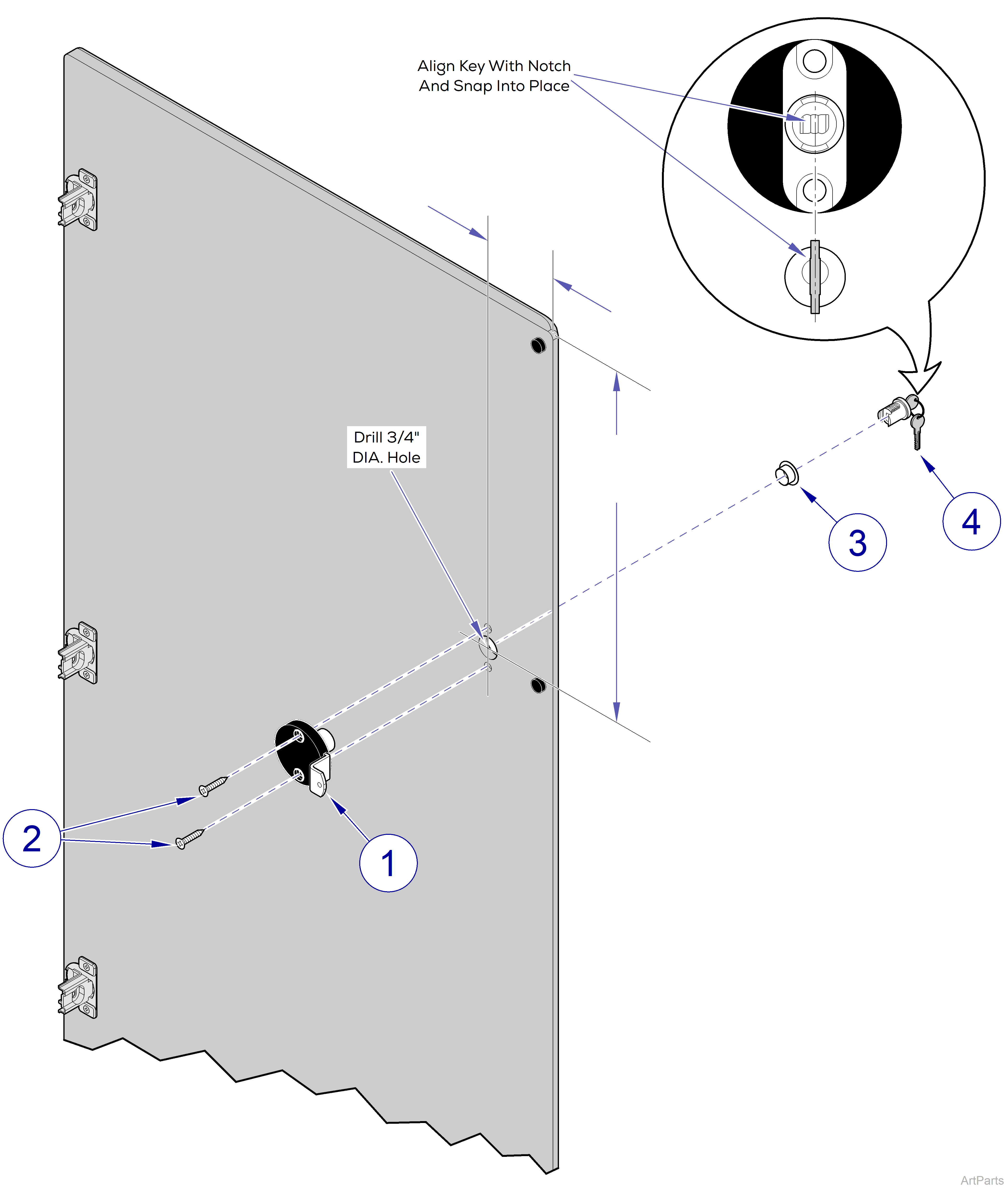

Accessory Number

 002-0990-00
Date Range: 2006 thru July 2011
Used with Models Midmark® Modular Cabinetry

Midmark Modular Single Door Lock Kit

84" Single Door Lock Kits
Item Part Number Description Qty

1

 016-0644-00 Dead Bolt Lock Body 1

2

 040-0006-63 #6 x 5/8” Screw 2

3

 016-0564-00 Lock Bezel 1

4

 016-0567-05 Lock Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

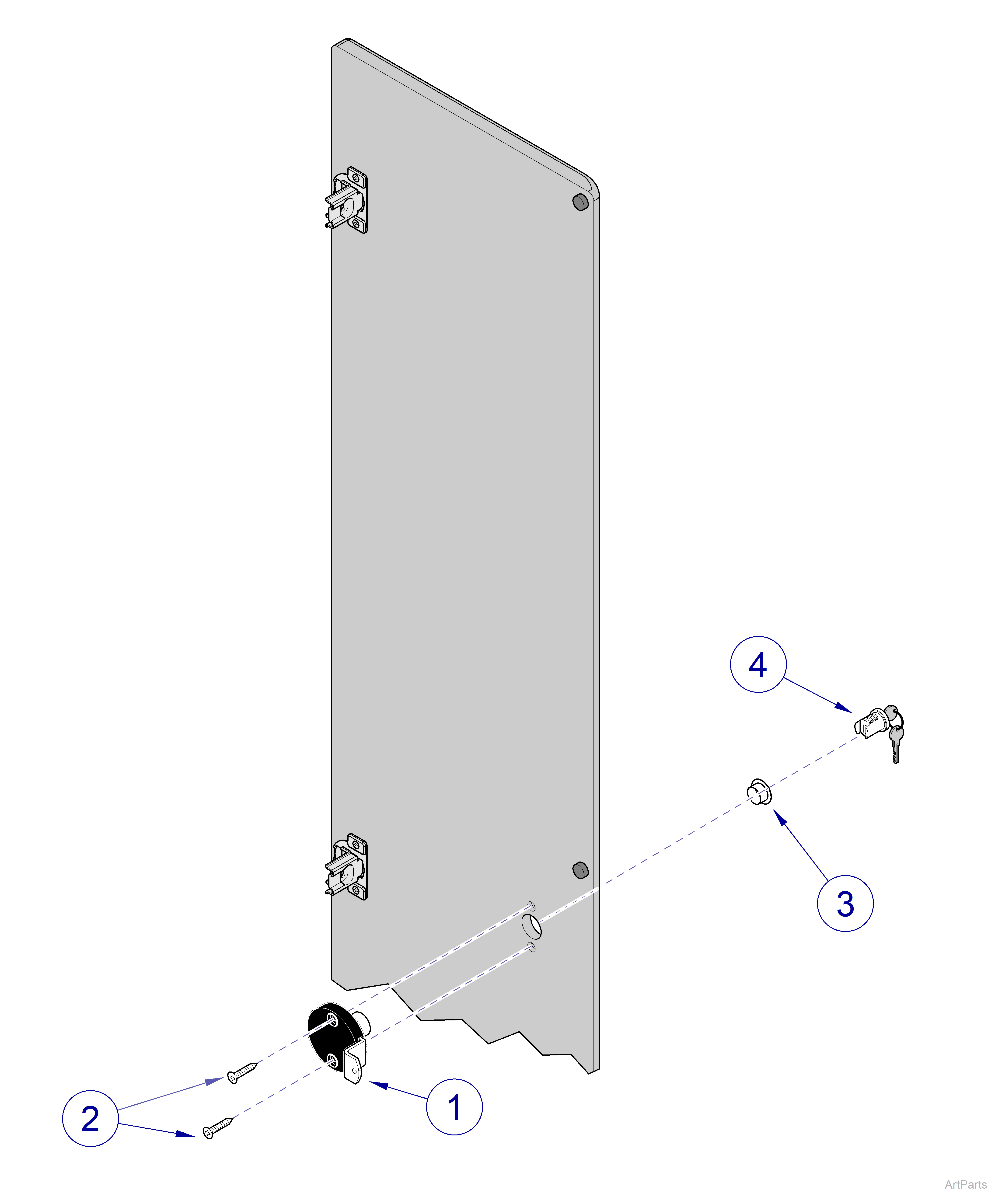

Accessory Number

 002-0948-55
Date Range: July 2011 thru present
Used with Models Midmark® Modular Cabinetry

Midmark Modular Single Door Lock Kit

84" Single Door Lock Kits
Item Part Number Description Qty

1

 016-0644-00 Dead Bolt Lock Body 1

2

 040-0006-63 #6 x 5/8” Screw 2

3

 016-0564-00 Lock Bezel 1

4

 016-0567-0X Lock Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

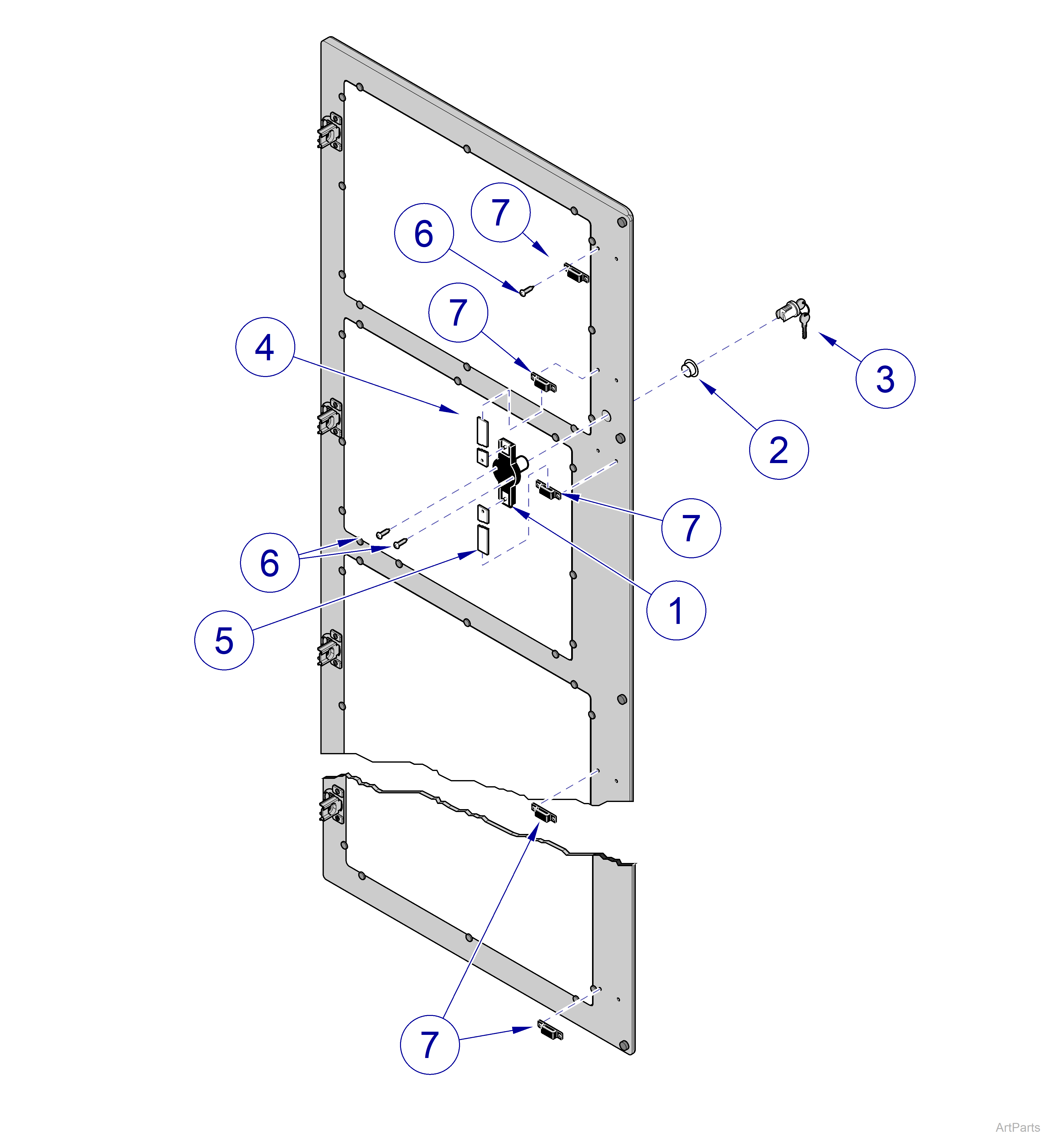

Accessory Number

 002-0948-59
Date Range: July 2011 thru present
Used with Models Midmark® Modular Cabinetry

Midmark Modular Single Door Lock Kit

84" Single Window Door Lock Kits
Item Part Number Description Qty

1

 016-0644-00 Lock Body Cylinder 1

2

 016-0564-00 Lock Bezel 1

3

 016-0567-05 Lock Plug 1

4

 051-0763-02 Lock Bar 1

5

 051-0762-02 Lock Bar 1

6

 040-0006-63 #6 x 5/8” Screw 12

7

 053-0652-00 Lock Bar Retainer 5

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

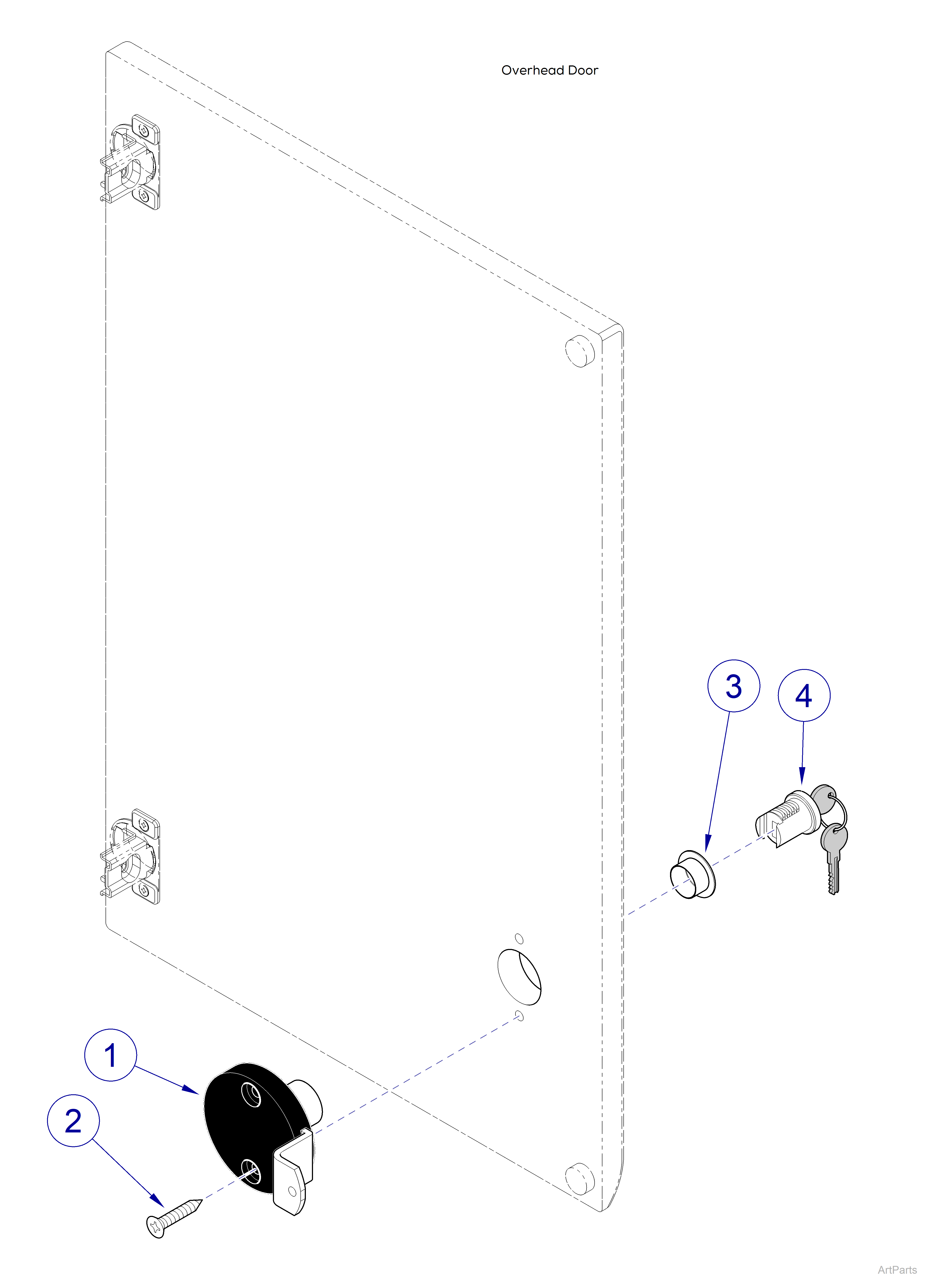

Accessory Number

002-0987-00
Date Range: 2006 thru July 2011
Used with Models Midmark® Modular Cabinetry Overhead

Double Door Key Lock Kits

Midmark® Single Overhead Door Lock Kits
Item Part Number Description Qty

1

 016-0644-00 Dead Bolt Lock Body 1

2

 040-0006-63 Screw #6 x 5/8" 2

3

 016-0564-00 Lock Bezel 1

4

 016-0567-05 Lock Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

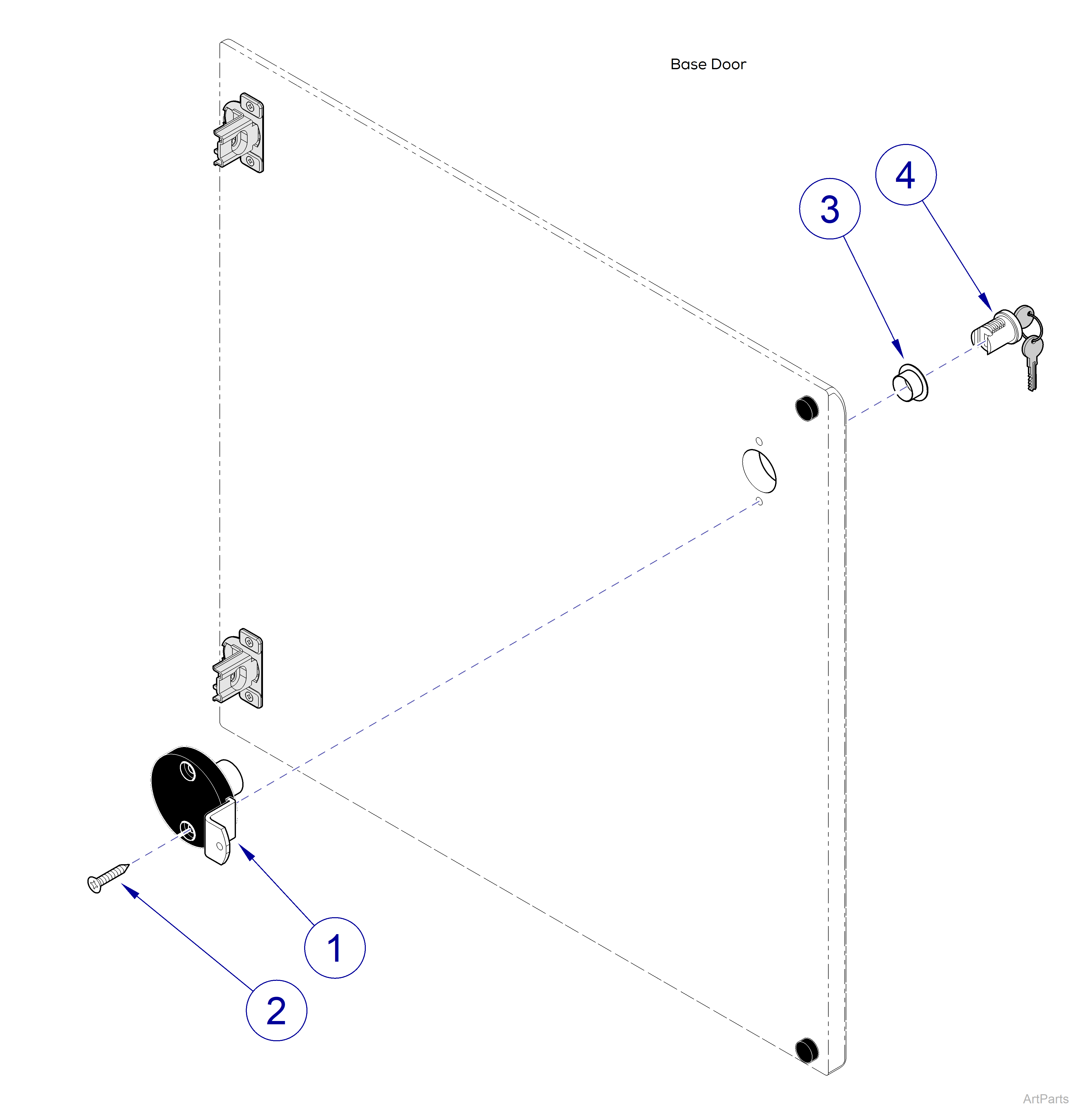

Accessory Number

002-0988-00
Date Range: 2006 thru July 2011
Used with Models Midmark® Modular Cabinetry Base

Single Door Key Lock Kits

Midmark® Single Base Door Lock Kits
Item Part Number Description Qty

1

 016-0644-00 Dead Bolt Lock Body 1

2

 040-0006-63 Screw #6 x 5/8" 2

3

 016-0564-00 Lock Bezel 1

4

 016-0567-05 Lock Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
