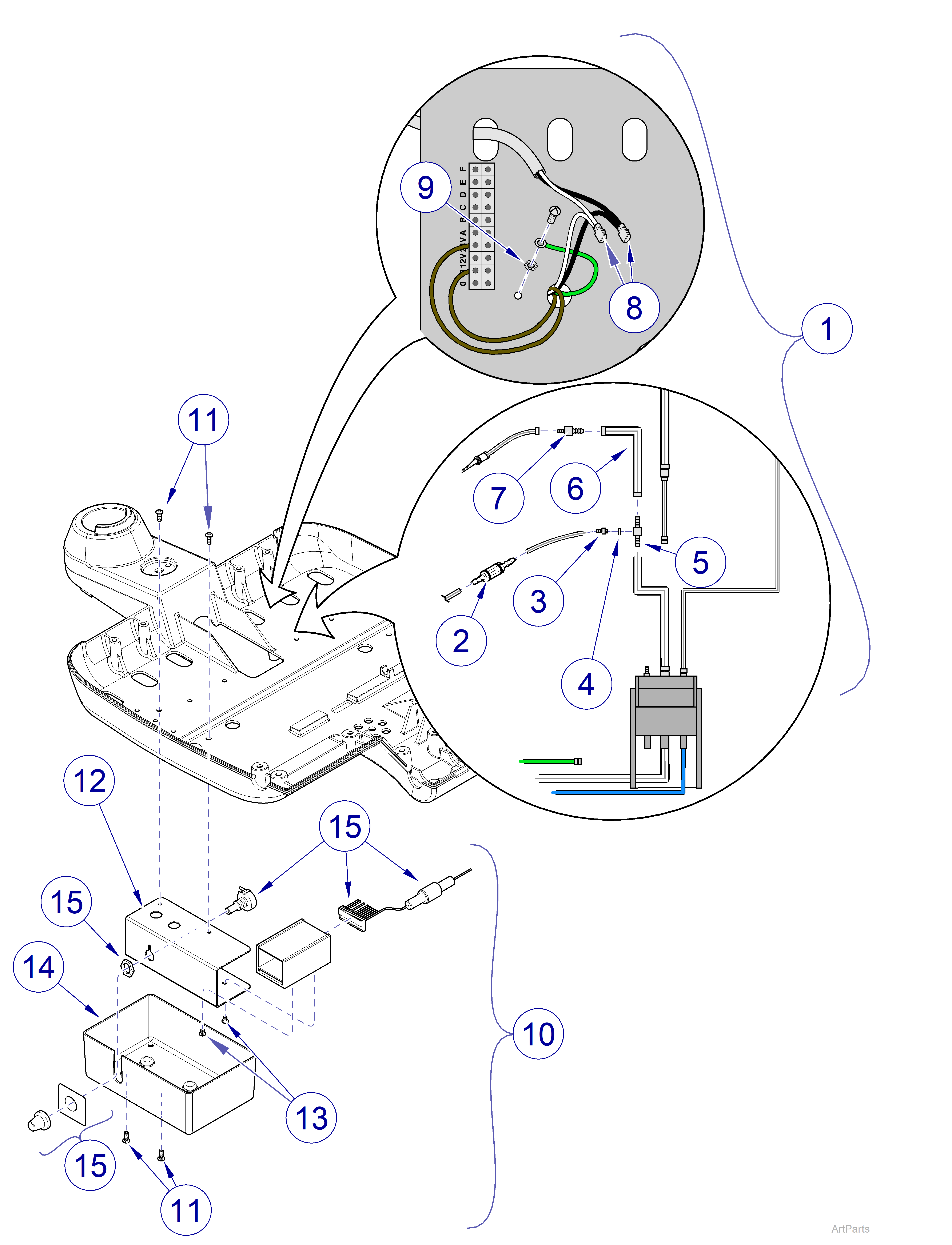

153631 Amdent Scaler System Accessory Kits

Accessory Number

 153631-001
Serial Number All
Used with Models Procenter Delivery

153631-001 Amdent Scaler System

153631-001 Amdent Scaler System Accessory
Item Part Number Description Qty

1

 029-2644-00 Amdent Tubing Assembly - Includes Items 1 thru 9 1

2

 117698 Check Valve 1

3

 109714 Barb Fitting 1

4

 117660 Gasket 1

5

 014-0598-00 Barbed Nipple Fitting 1

6

 177529 1/8” Clear Tubing 1

7

 117739 Barb Fitting 1

8

 116688 Connector 2

9

 P14718 Washer 1

10

 029-2645-00 Amdent Scaler Box Assembly - Includes Items 11 thru 16 1

11

 040-0006-97 Screw 4

12

 050-5412-50 Amdent Holder Bracket 1

13

 042-0118-01 Screw 2

14

 053-1197-01 Scaler Cover 1

15

123062

 Amdent Scaler NLA

16

 120769 Pressure Switch - not shown 1

17

153631-001

 Amdent Scaler System Field Install for Procenter Delivery - Includes Items 1 and 10 NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

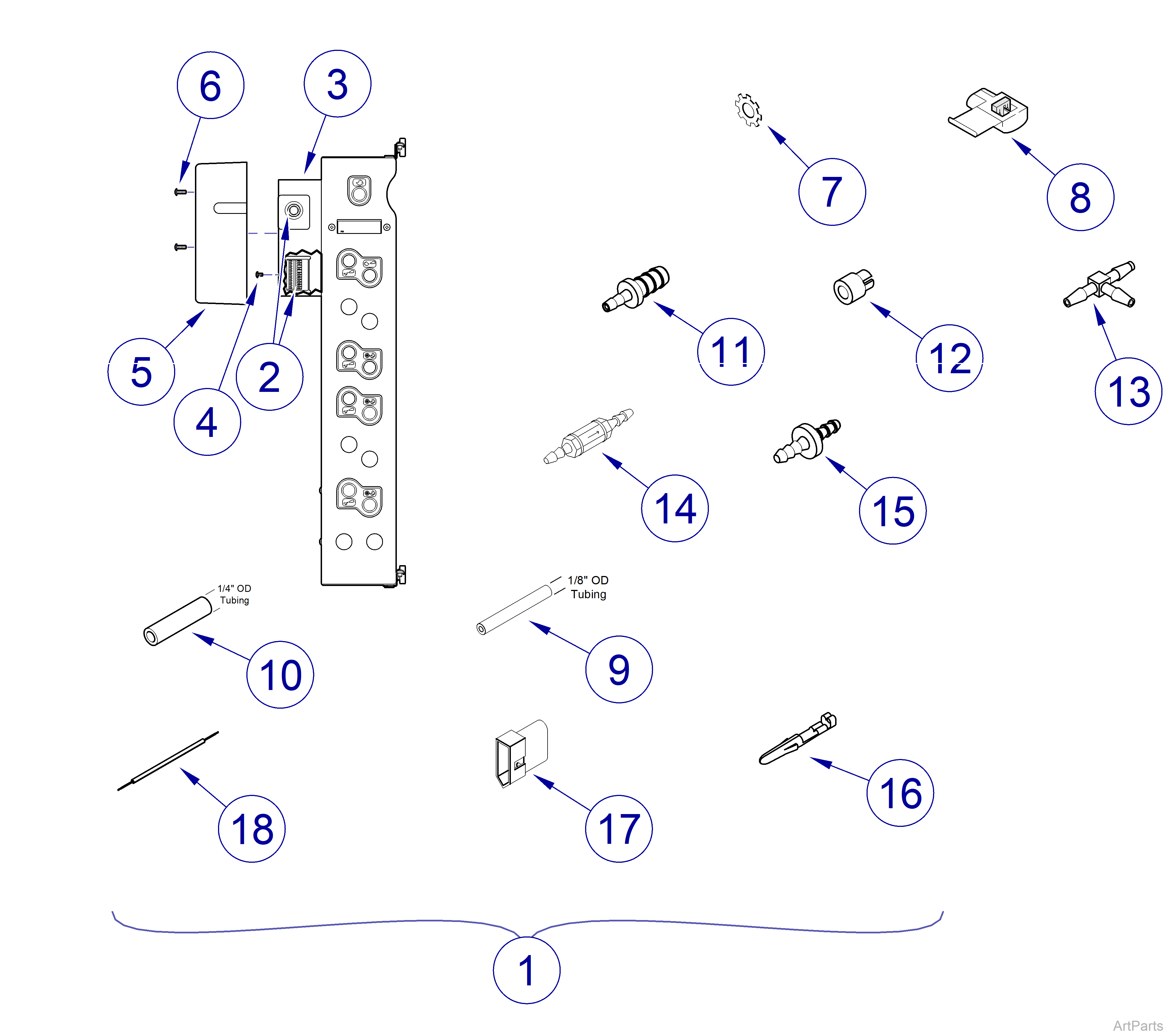

Accessory Number

 153631-002
Serial Number All
Used with Models Procenter 12:00

153631-002 Amdent Scaler System

153631-002 Amdent Scaler System
Item Part Number Description Qty

1

029-2854-00

 12:00 FSC Unit Scaler Assembly - Includes items 2 thru 19

NLA

2

123062

 Scaler Components NLA

3

 050-5412-50 Scaler Mount Bracket 1

4

 042-0118-01 Screw M3 x 5 x 5mm 2

5

 053-1300-01 Scaler Cover 1

6

 040-0006-97 Screw #6-32 x 3/8" 4

7

 P14718 Lockwasher 1

8

 117244 Wire Connector 2

9

 177529 Clear Tubing 1/8” OD AR

10

 275519 Clear Tubing 1/4” OD x 1/8” ID AR

11

 117739 Barb Fitting 1/16” to 1/8” 1

12

 117479 Uni-Clamp 4

13

 117477 Barb Tee Fitting 1/16” 1

14

 117698 Check Valve 1

15

 117481 Barb Fitting 1/16” to 1/16” 1

16

 015-1538-00 Socket Terminal 2

17

 103167 2-Circuit Receptacle 1

18

 015-1588-00 Accessories Harness 1

19

015-1482-00

 Scaler Wiring - not Shown NLA

20

153631-002

 Amdent Scaler System for Procenter 12:00 - Includes Item 1 NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

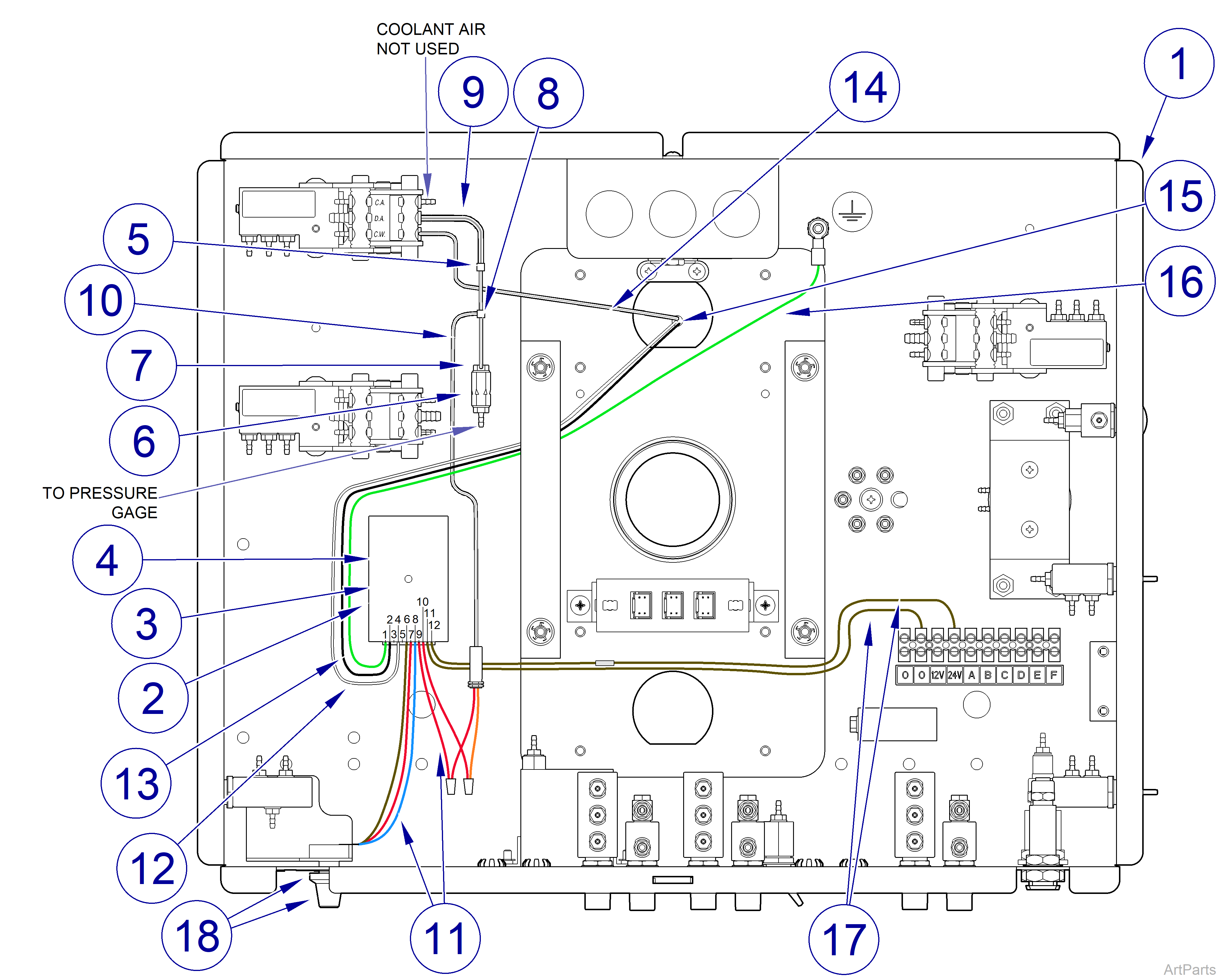

Accessory Number

 153631-004
Serial Number All
Used with Models Procenter Delivery

153631-004 Amdent Scaler System

153631-004 Amdent Scaler System
Item Part Number Description Qty

1

 029-3266-00 Duo Delivery Scaler Assembly - Includes Items 2 thru 18 1

2

123062

 Amdent Scaler Components NLA

3

 053-0131-31 Hook Fastener 2

4

 053-0105-33 Loop Fastener 2

5

 117739 Barb Fitting 1/16” to 1/8” 1

6

 117698 Check Valve 1

7

 117479 Uni-Clamp 1/8” OD Tube 4

8

 117477 Fitting 1/16” Barb Tee 1

9

 177529 Clear Tubing 1/8” OD AR

10

 275519 Clear Tubing 1/4” OD AR

11

015-1482-00

 Scaler Wiring NLA

12

 Reference Only Black Wire to Handpiece Tube -

13

 Reference Only White Wire to Handpiece Tube -

14

 Reference Only 1/8” OD Clear to Handpiece -

15

 Reference Only Tubing to Drs. Instrument Head -

16

 Reference Only Green Wire to Ground -

17

 Reference Only Brown Wires to OV & 24V -

18

 Reference Only Control Knob and Label -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
