Ritter Modular Single Door Lock Kits
84" Single Door
Date Range:2006 thru July 2011
|
Accessory Number |
002-0982-00 |
| Date Range: | 2006 thru July 2011 |
| Used with Models | Ritter Modular Cabinetry |

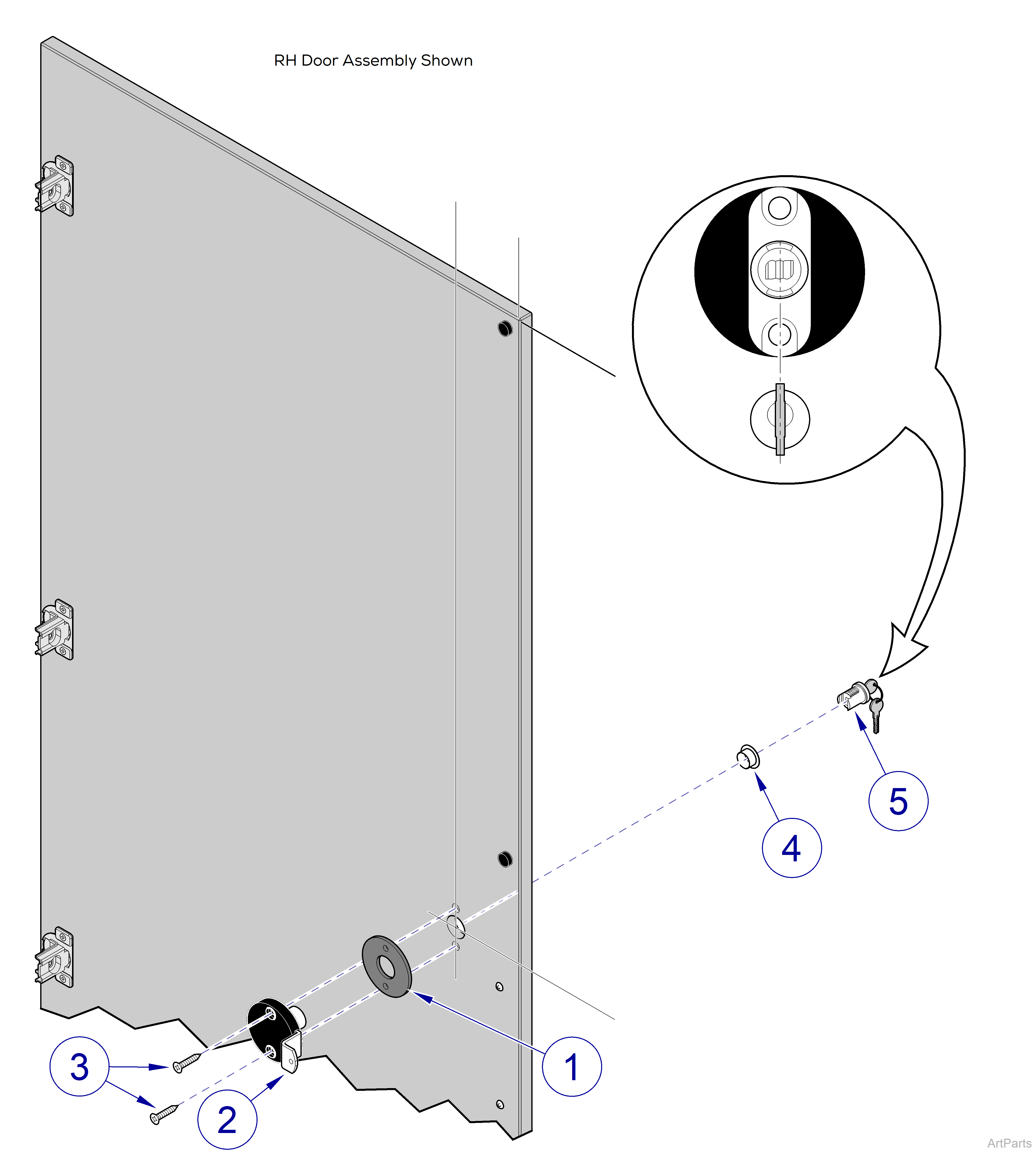

| Ritter 84" Single Door Lock Kits | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-4630-00-216 |
Lock Spacer Plate |
NLA |
|
2 |
016-0644-00 | Dead Bolt Lock Body | 1 |
|
3 |
040-0006-20 | Screw #6 x 3/4” | 4 |
|
4 |
016-0564-00 | Lock Bezel | 1 |
|
5 |
016-0567-05 | Lock Plug | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Date Range:July 2011 thru Present
|
Accessory Number |
002-0948-62 |
| Date Range: | July 2011 thru present |
| Used with Models | Ritter Modular Cabinetry |
| Ritter 84" Single Door Lock Kits | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-4630-00 | Lock Spacer Plate | 1 |
|
2 |
016-0644-00 | Dead Bolt Lock Body | 1 |
|
3 |
040-0006-20 | Screw #6 x 3/4” | 2 |
|
4 |
016-0564-00 | Lock Bezel | 1 |
|
5 |
016-0567-05 | Lock Plug | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Single Door
Model Range 002-0979-00
|
Accessory Number |
002-0979-00 |
| Date Range: | 2006 thru July 2011 |
| Used with Models | Ritter Modular Cabinetry |
| Ritter Single Door Lock Kits | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
016-0644-00 | Dead Bolt Lock Body | 1 |
|
2 |
040-0006-20 | Screw #6 x 3/4” | 2 |
|
3 |
050-4630-00-216 |
Lock Spacer Plate |
NLA |
|
4 |
016-0564-00 | Lock Bezel | 1 |
|
5 |
016-0567-05 | Lock Plug | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 002-0980-00
|
Accessory Number |
002-0980-00 |
| Date Range: | 2006 thru July 2011 |
| Used with Models | Ritter Modular Cabinetry |
| Ritter Single Door Lock Kits | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
016-0644-00 | Dead Bolt Lock Body | 1 |
|
2 |
040-0006-20 | Screw #6 x 3/4” | 2 |
|
3 |
050-4630-00-216 |
Lock Spacer Plate |
NLA |
|
4 |
016-0564-00 | Lock Bezel | 1 |
|
5 |
016-0567-05 | Lock Plug | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
