ASAM-GT VetVision Laptop Tray Accessory
|
Accessory Number |
ASAM-GT |
| Serial Number | All |
| Used with Models | VetPro DC X-Ray |

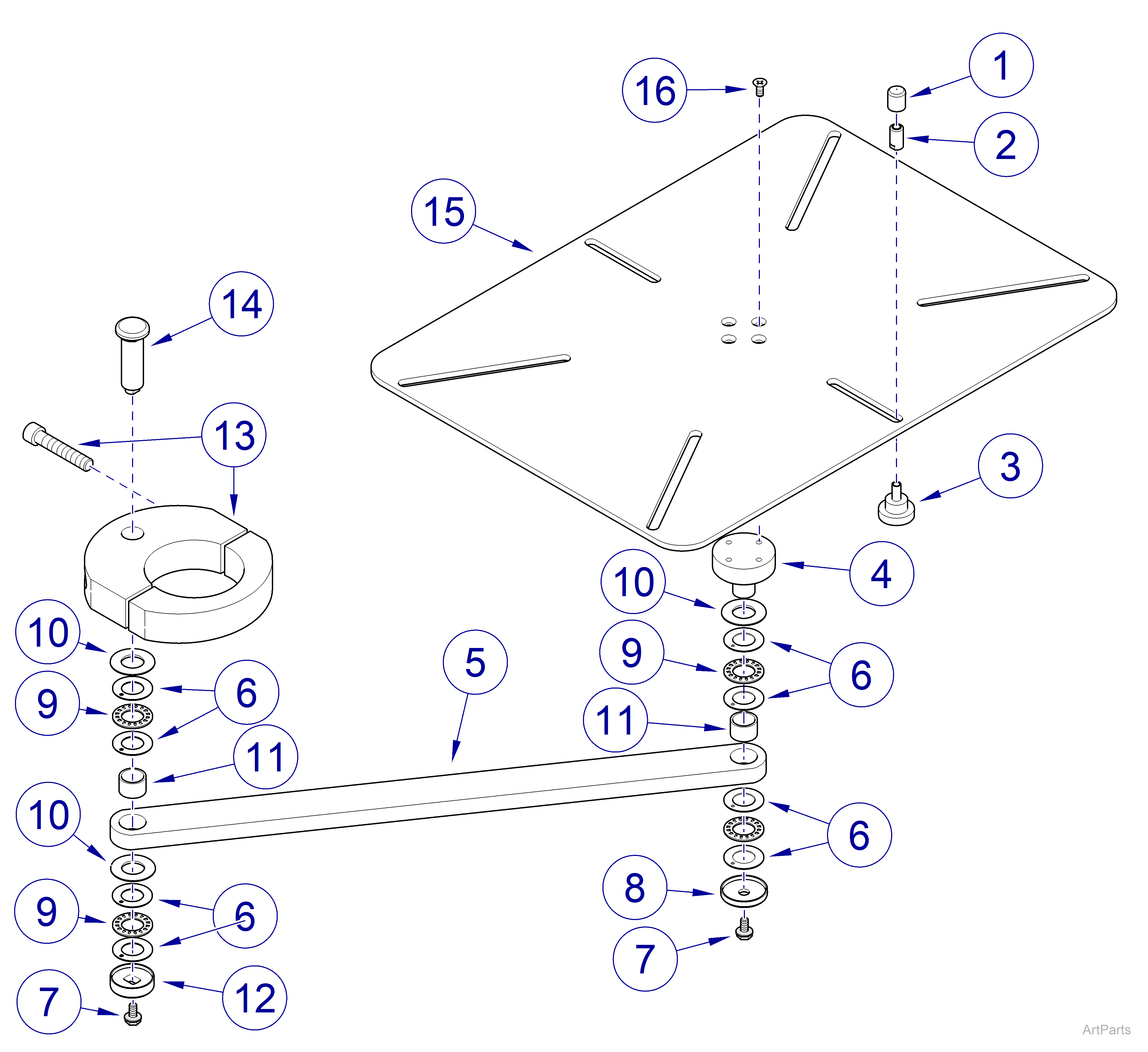

| ASAM-GT Tray Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-0268-01 | Vinyl End Cap | 4 |
|
2 |
057-1278-00 | Shelf Standoff | 4 |
|
3 |
016-0028-00 | Knob | 4 |
|
4 |
057-1276-00 | Tray Pin | 1 |
|
5 |
121079-01-216 | Instrument Tray Arm | 1 |
|
6 |
119458 | Thrust Washer | 8 |
|
7 |
040-0250-133 | 1/4-20 x 1/2” ZCBC Whizlock - Apply Item 17 | 2 |
|
8 |
057-1277-00-216 | Tray Arm Cap | 1 |
|
9 |
119462 | Thrust Bearing | 4 |
|
10 |
045-0001-148 | 5/8” Belleville Spring Washer | 3 |
|
11 |
120579 | Tray Arm Bearing | 2 |
|
12 |
057-1296-00-216 | Clamp Pin Cap | 1 |
|
13 |
057-1274-00-216 | Pole Clamp Assembly | 1 |
|
14 |
057-1275-00 | Clamp Pivot Pin | 1 |
|
15 |
050-8524-00-216 | PC Work Surface Plate | 1 |
|
16 |
040-0010-154 | #10-32 x 7/16” Flat Head Phillips | 4 |
|
17 |
042-0024-03 | Loctite 242 Medium Strength Adhesive | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
