153764 Cavitron Scaler System Accessory
Model Range 153764-001
|
Accessory Number |
153764-001 |
| Serial Number | All |
| Used with Models | Procenter Delivery |

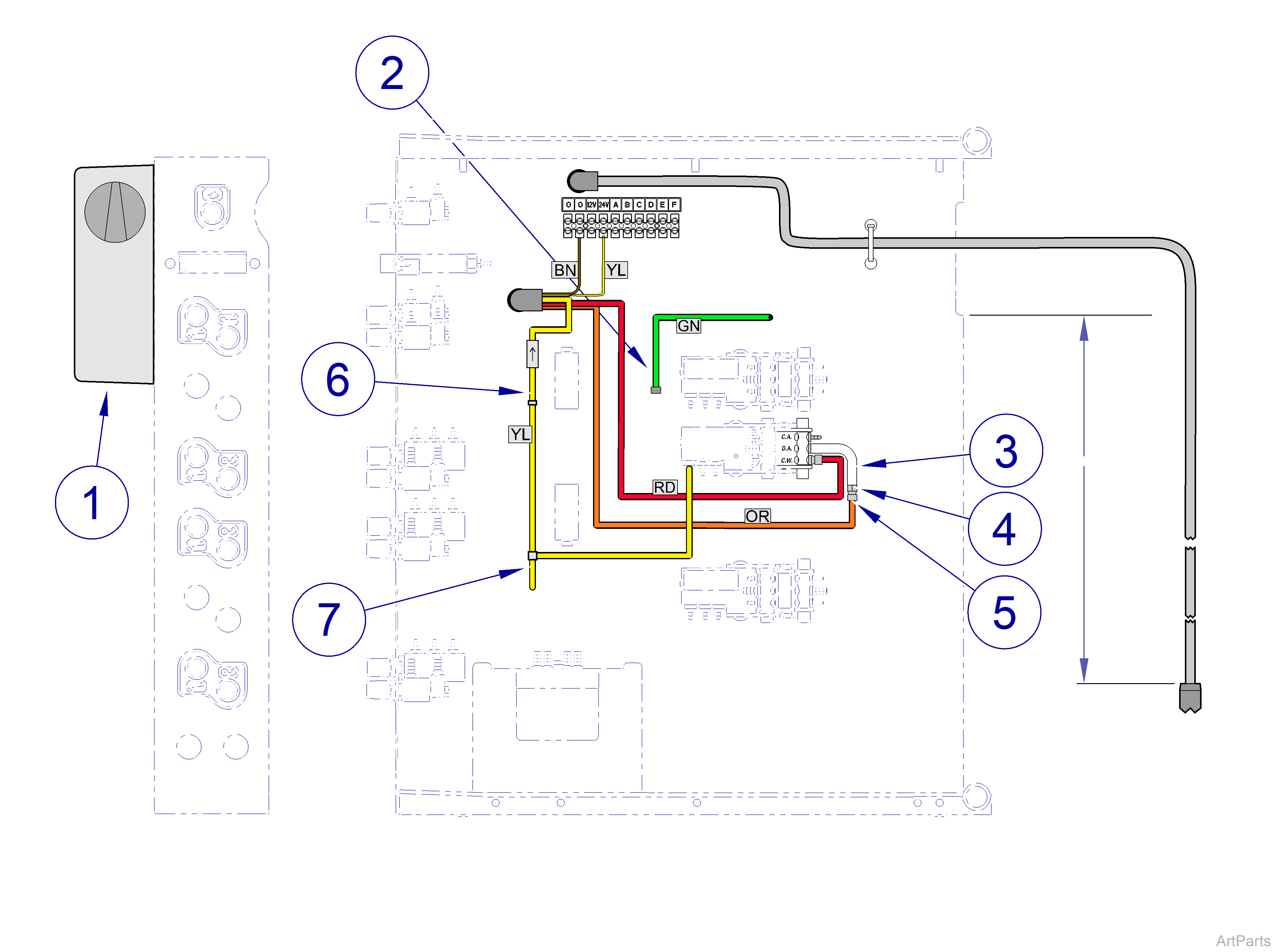

The Red, Orange and Yellow tubing connect the Scaler to the Kink Valve. The green tubing is from the Handpiece Supply Air. Brown and Yellow wires connect the Scaler to the terminal block.
| 153764-001 Cavitron Scaler System Accessory | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0902-00 |
Cavitron 4’ Scaler Assembly Kit |
NLA |
|
2 |
116688 | Splice | 2 |
|
3 |
118915 | Plug for 1/8’ OD Tubing | 1 |
|
4 |
275519 | Clear Tubing 1/4” OD x 1/8” ID | AR |
|
5 |
117739 | Barb Fitting 1/8” to 1/4” | 1 |
|
6 |
117479 | Uni-Clamp 1/8” OD | 1 |
|
7 |
117481 | Barb Fitting 1/8” to 1/8” | 1 |
|
8 |
117477 | 3 Way Barb Tee 1/8” Tubing | 1 |
|
9 |
153764-001 |
Cavitron Scaler for Procenter Delivery - Includes Items 1 thru 8 |
NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 153764-002
|
Accessory Number |
153764-002 |
| Serial Number | All |
| Used with Models | Procenter 12:00 Delivery |

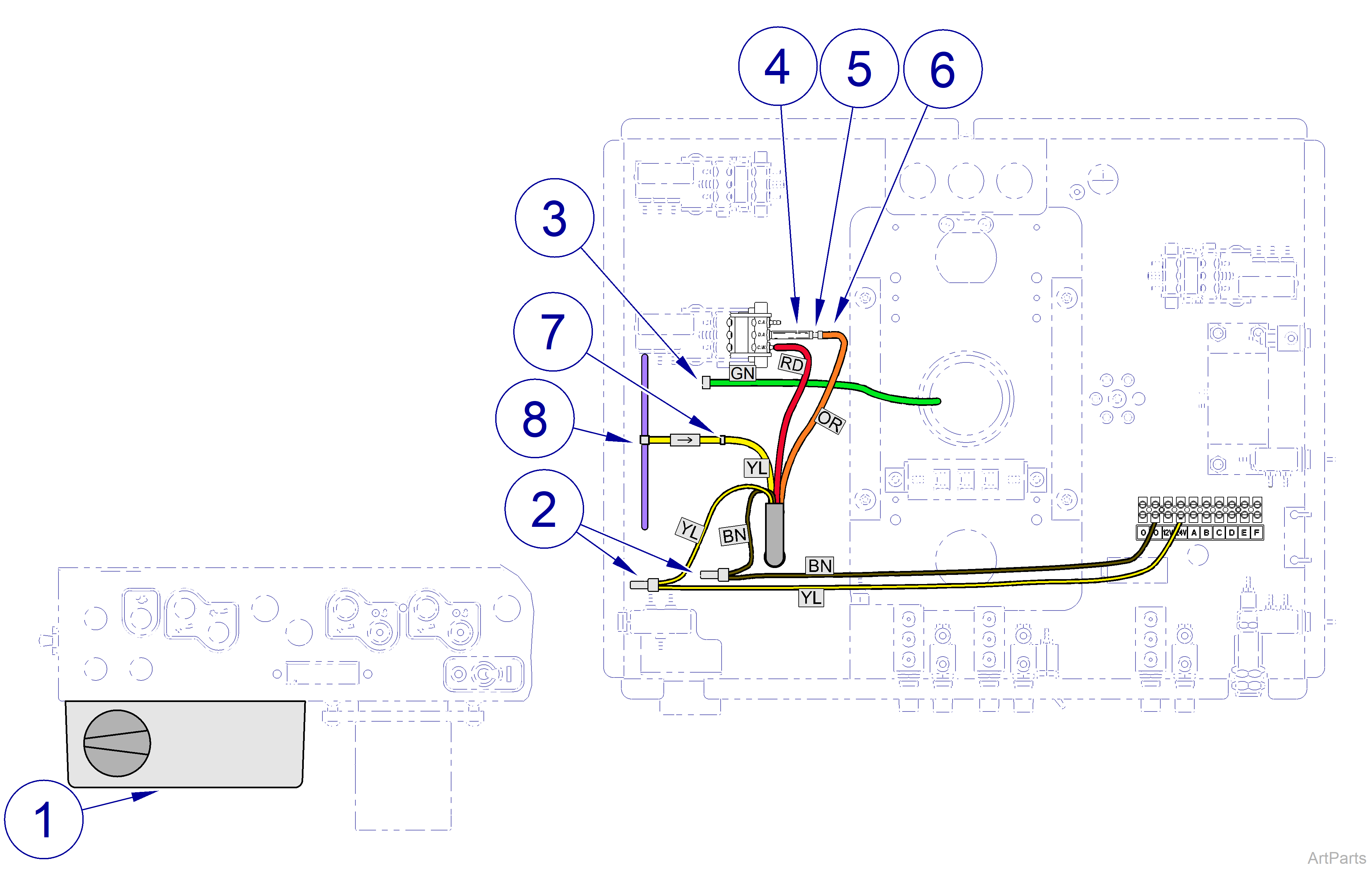

The Red, Orange and Yellow tubing connect the Scaler to the Kink Valve. The green tubing is from the Handpiece Supply Air. Brown and Yellow wires connect the Scaler to the terminal block.
| 153764-002 Cavitron Scaler System Accessory | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0902-00 |
Cavitron 4’ Scaler Assembly Kit |
NLA |
|
2 |
118915 | Plug for 1/8” OD Tubing | 1 |
|
3 |
275519 | Clear Tubing 1/4” OD x 1/8” ID | AR |
|
4 |
117739 | Barb Fitting 1/8” to 1/4” | 1 |
|
5 |
117479 | Uni-Clamp 1/8” OD | 1 |
|
6 |
117481 | Barb Fitting 1/8” to 1/8” | 1 |
|
7 |
117477 | 3 Way Barb Tee 1/8” | 1 |
|
8 |
153764-002 |
Cavitron Scaler for 12:00 Procenter Delivery - Includes Items 1 thru 7 |
NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 153764-003
|
Accessory Number |
153764-003 |
| Serial Number | All |
| Used with Models | Procenter Duo Flex Delivery |

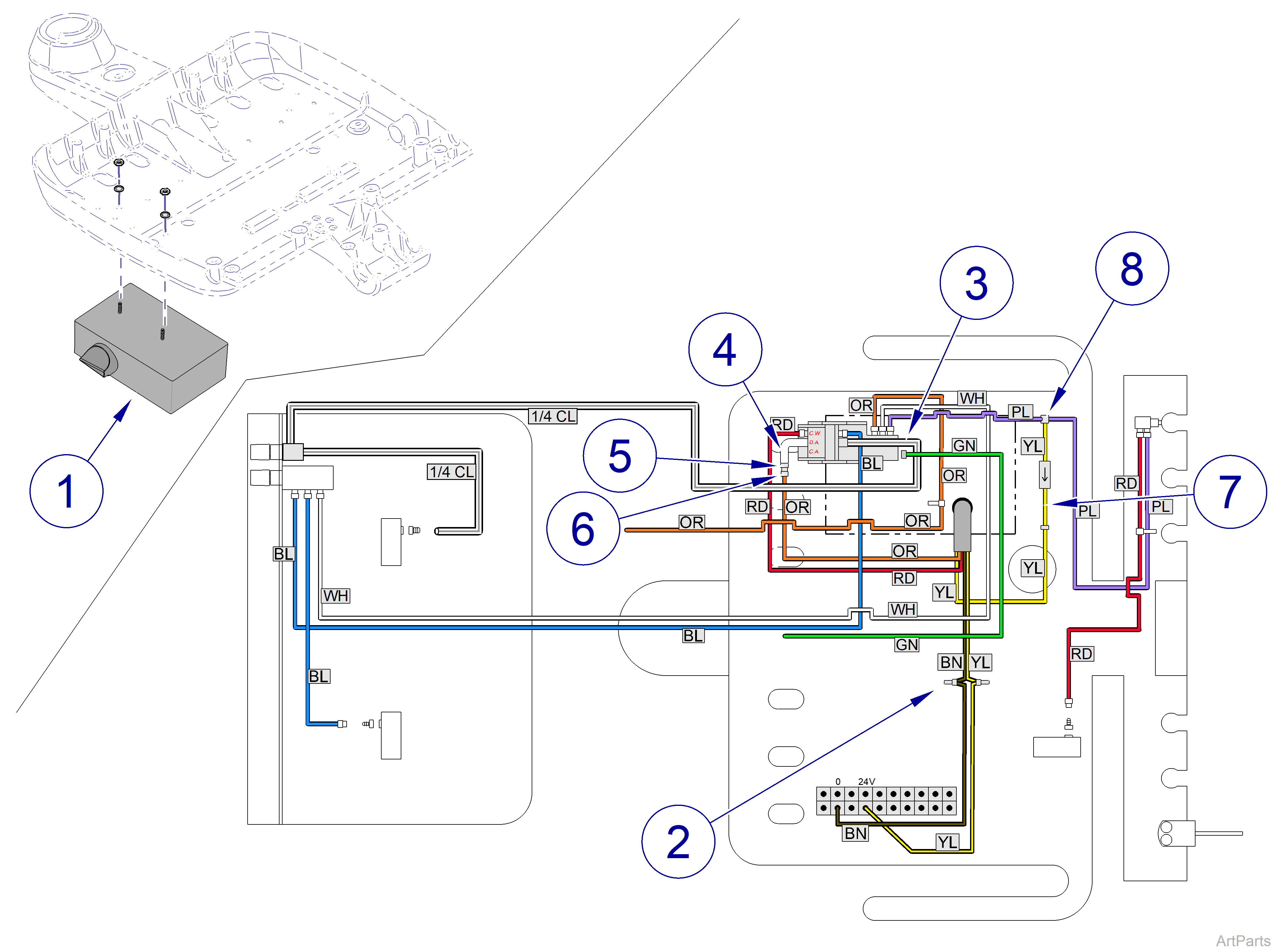

The Red, Orange and Yellow tubing connect the Scaler to the Kink Valve. The green tubing is from the Handpiece Supply Air. Brown and Yellow wires connect the Scaler to the terminal block.
| 153764-003 Cavitron Scaler System Accessory | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0902-00 |
Cavitron 4’ Scaler Assembly Kit |
NLA |
|
2 |
116688 | Splice | 2 |
|
3 |
118915 | Plug for 1/8” OD Tubing | 1 |
|
4 |
275519 | Clear Tubing 1/4” OD x 1/8” ID | AR |
|
5 |
117739 | Barb Fitting 1/8” to 1/4” | 1 |
|
6 |
117479 | Uni-Clamp 1/8” OD | 1 |
|
7 |
117481 | Barb Fitting 1/8” to 1/8” | 1 |
|
8 |
117477 | 3 Way Barb Tee 1/8” | 1 |
|
9 |
153764-003 |
Cavitron Scaler for Procenter Duo Flex Delivery - Includes Items 1 thru 8 |
NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
