9A77001 Adjustable I.V. Pole Assembly
|
Accessory Number |
9A77001 |
| Serial Number | All |
| Used with Models | 230, 630, 631, 641, 646 and 647 |

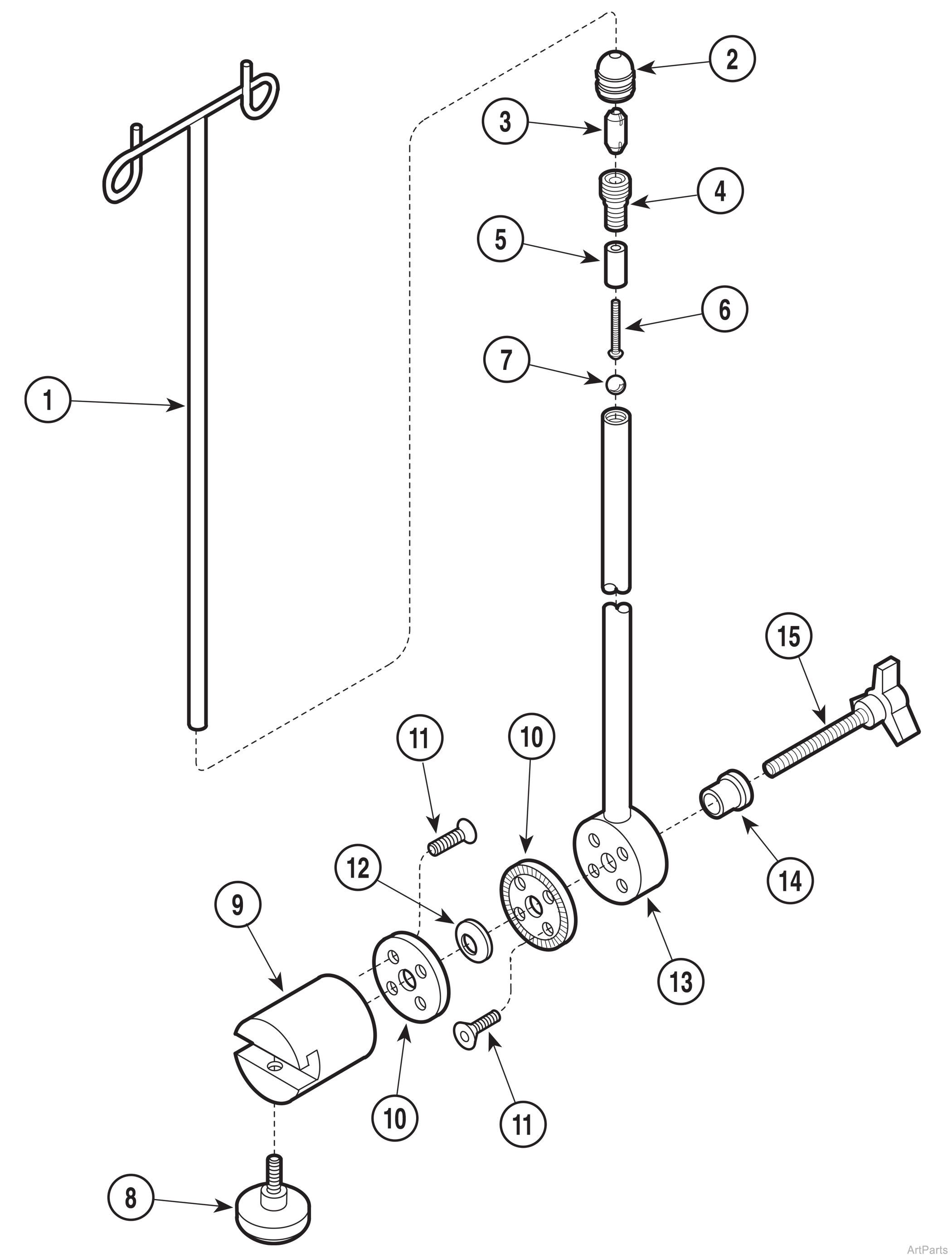

| Adjustable I.V. Pole Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
530-0326-00 | Chrome Plated I.V. Rod | 1 |
|
2 |
K101037 | Ferrule | 1 |
|
3 |
K101040 | Bushing | 1 |
|
4 |
557-0189-00 | Threaded Sleeve - Apply Item 16 | 1 |
|
5 |
557-0187-00 | Small Stop | 1 |
|
6 |
040-0250-98 | Screw - Apply Item 17 | 1 |
|
7 |
553-0114-02 | Elastomer Spring | 1 |
|
8 |
016-0175-00 | Knob | 1 |
|
9 |
057-0180-00 |
Swivel Block | NSS |
|
10 |
057-0084-00 | Serrated Ring | 2 |
|
11 |
040-0008-27 | Screw | 8 |
|
12 |
025-0021-00 | Spring Washer | 6 |
|
13 |
030-0708-00 | Tube Weldment | 1 |
|
14 |
053-0114-00 | Nylon Bearing | 1 |
|
15 |
016-0310-00 | Knob | 1 |
|
16 |
042-0024-03 | Thread locking medium strength adhesive - Not shown | AR |
|
17 |
042-0025-02 | Thread locking high strength adhesive - Not shown | AR |
|
18 |
9A77001 | Adjustable I.V. Pole Assembly - Includes Items 1- 15 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
