153701 Keyboard Mount Assembly
|
Accessory Number |
153701 |
| Serial Number | All |
| Used with Models | Procenter Delivery |

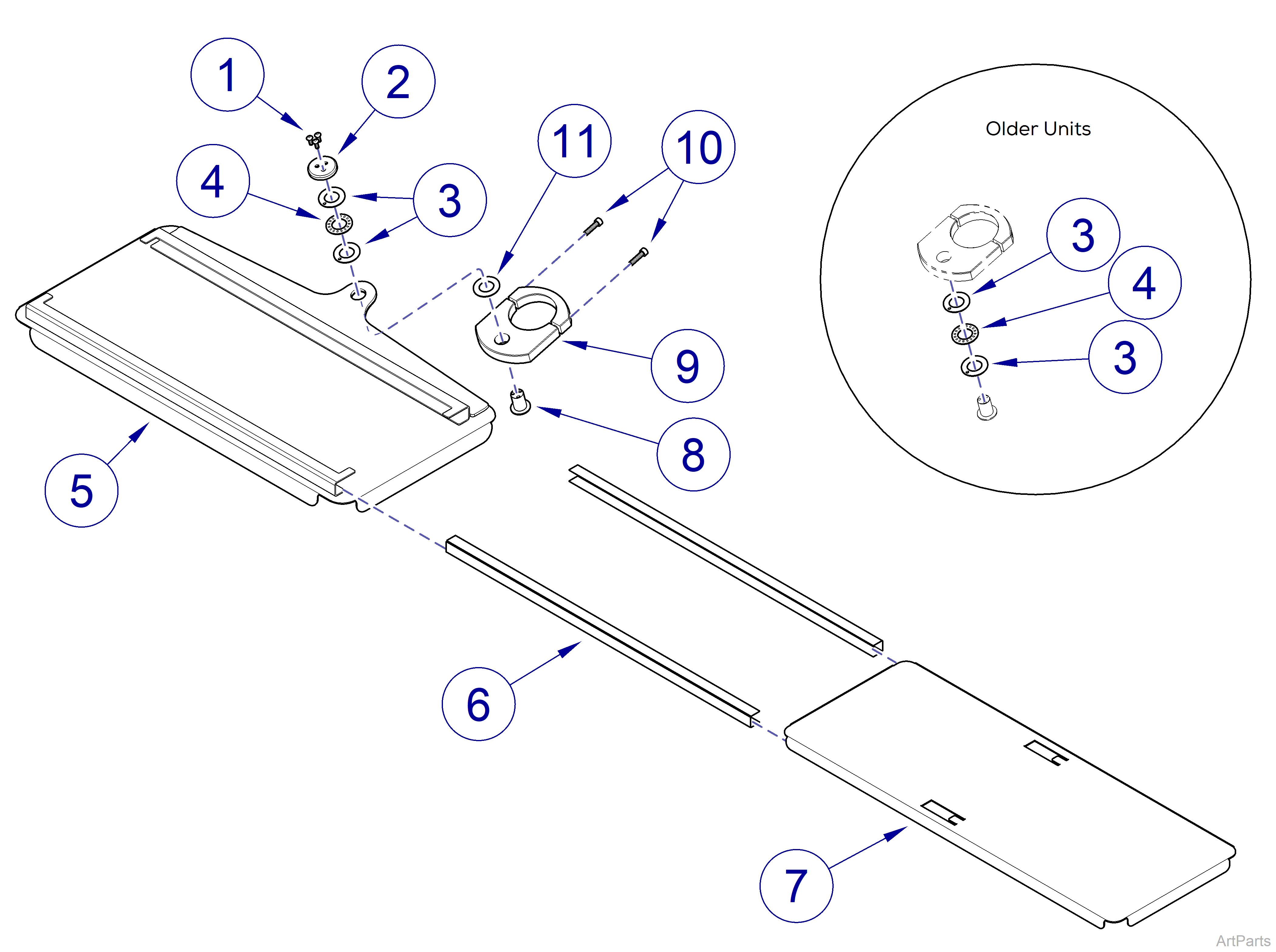

| 153701 Keyboard Mount Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
121698-5 | Screw | 3 |
|
2 |
120580-50 | Bearing Cap | 1 |
|
3 |
119458 | Thrust Washer | 2 |
|
4 |
119462 | Thrust Bearing | 1 |
|
5 |
030-1444-50 | Keyboard Weldment | 1 |
|
6 |
053-0018-00 | Nyl-O-Tape, 18in. lengths | 6 |
|
7 |
050-5616-50 | Mouse Platform | 1 |
|
8 |
120962-01 | Pivot Pin | 1 |
|
9 |
051-0959-51 | Tray Clamp - includes item 10 | 1 |
|
10 |
Screw | NSS = Not Sold Separately | |
|
11 |
123078 | Spacer | 1 |
|
12 |
002-10855-00 | Keyboard Mount Kit - Includes items 1 thru 11 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
