Midmark Synthesis® Cabinetry Door Keyed Lock Kits

Tall double door lock kits can not be field installed, must order new doors with locks installed.

Accessory Number

 002-1918-00 002-1920-00 002-1927-00
Serial Number All All All
Used with Models Midmark Synthesis® Cabinetry Base Midmark Synthesis® Cabinetry Overhead Midmark Synthesis® Cabinetry Dressing Nook/Scope

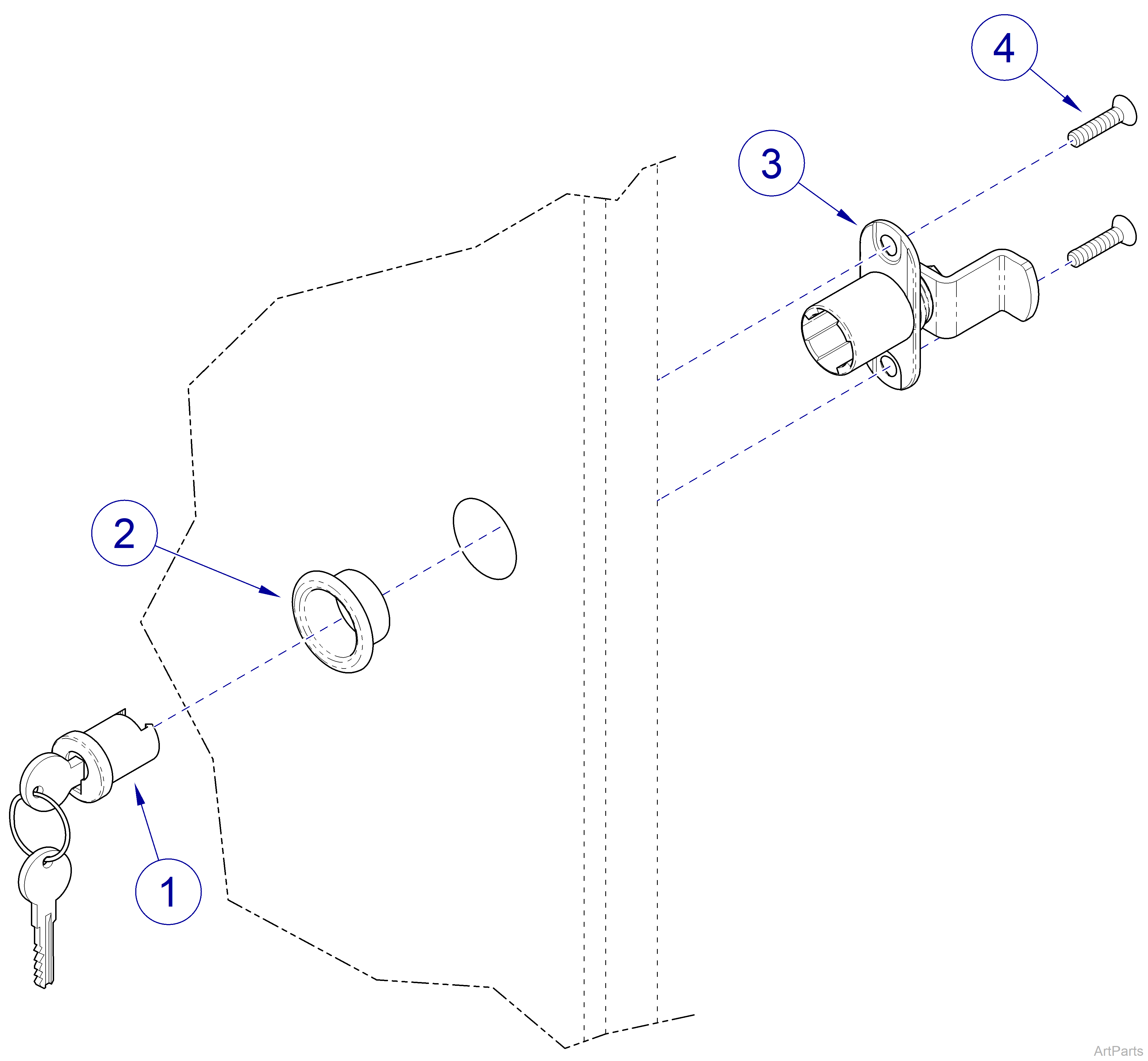

Midmark Synthesis® Cabinetry Single Door Keyed Lock Kit

Midmark Synthesis® Cabinetry Single Door Keyed Lock Kits
Item Part Number Description Qty

1

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

2

 016-0564-00 Lock Bezel 1

3

 029-6654-00 Cam Lock 1

4

 040-0006-71 Screw #6 x 5/8” 2

5

 002-1918-00 Base Single Door Keyed Lock Kit - includes items 1 thru 4 1

6

 002-1920-00 Overhead Single Door Keyed Lock Kit - includes items 1 thru 4 1

7

 002-1927-00 Nook / Scope Single Door Keyed Lock Kit - includes items 1 thru 4 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-1922-00 002-1923-0x
Serial Number All All
Used with Models Midmark Synthesis® Cabinetry Tall unit Midmark Synthesis® Cabinetry Tall Split Unit

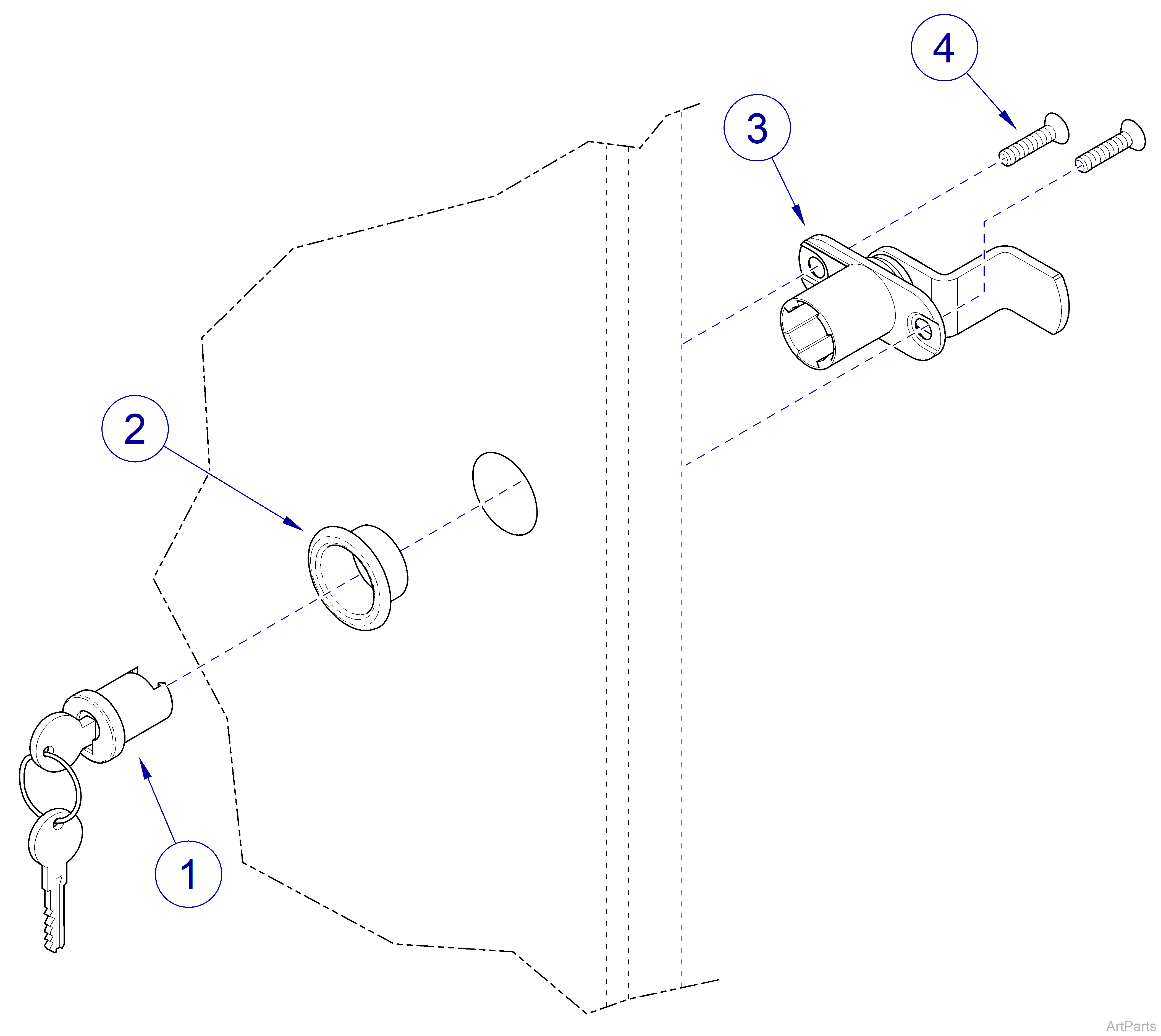

Midmark Synthesis® Cabinetry Single Door Keyed Lock Kit

Midmark Synthesis® Cabinetry Tall Single Door Keyed Lock Kits
Item Part Number Description Qty

1

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

2

 016-0564-00 Lock Bezel 1

3

 Cam Lock Options
  029-6682-01 Cam Lock for 002-1922-00 and 002-1923-00 Kits 1
  029-6682-00 Cam Lock for 002-1923-01 Kits 1

4

 040-0006-71 Screw #6 x 5/8” 2

5

 002-1922-00 Tall Cabinet Single Door Keyed Lock Kit - includes items 1 thru 4 1

6

 Door Keyed Lock Kit Options
  002-1923-00 Tall Split Single Door Keyed Lock Kit - Includes items 1 thru 4
  002-1923-01 Tall Overhead - 37.375" Single Door Keyed Lock Kit - Includes items 1 thru 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-1919-00 002-1921-00
Serial Number All All
Used with Models Midmark Synthesis® Cabinetry Base Midmark Synthesis® Cabinetry Overhead

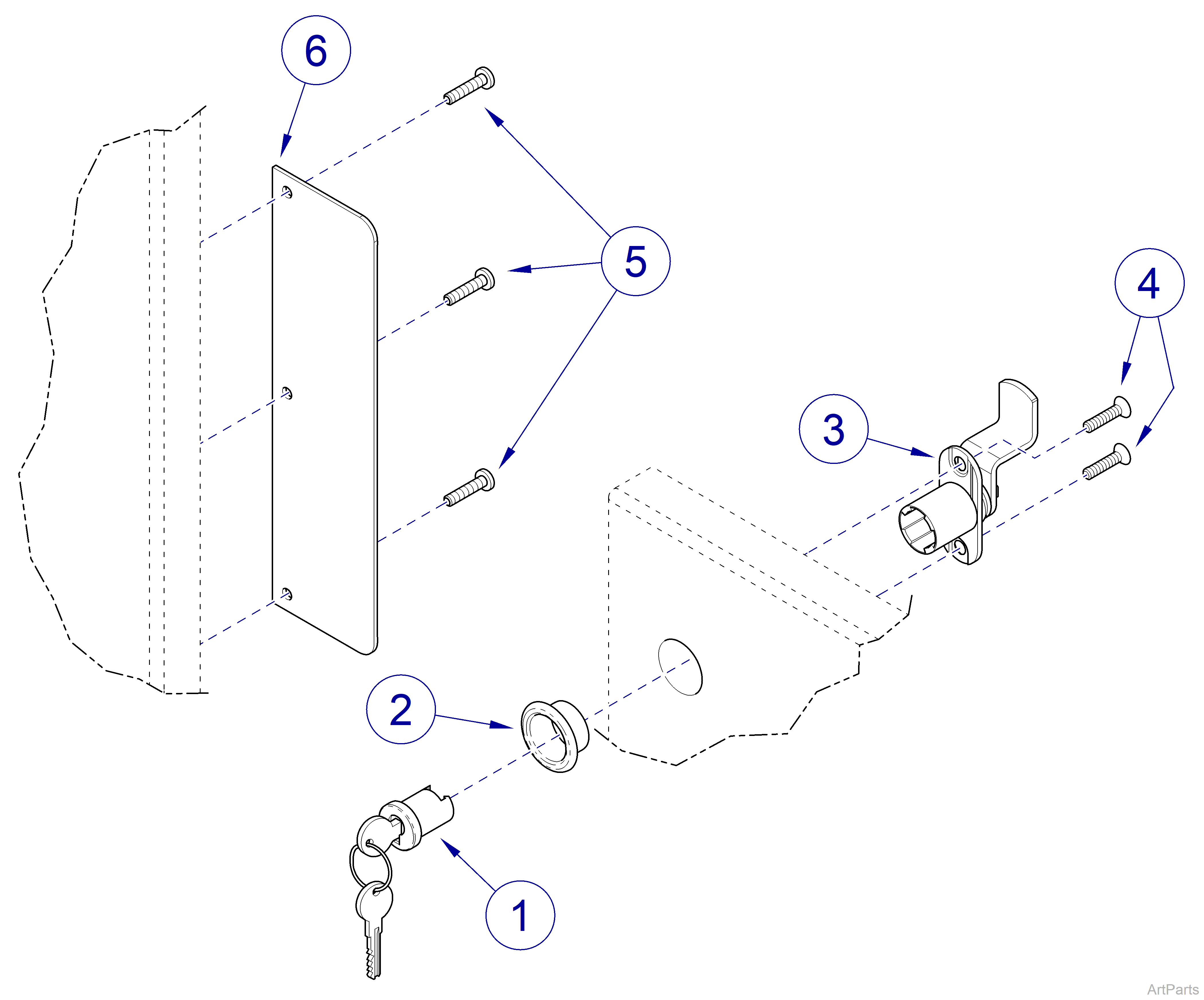

Midmark Synthesis® Cabinetry Single Door Keyless Lock Kit

Midmark Synthesis® Cabinetry Double Door Keyed Lock Kits
Item Part Number Description Qty

1

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

2

 016-0564-00 Lock Bezel 1

3

 029-6655-00 Cam Lock 1

4

 040-0006-71 Flat Head Screw #6 x 5/8” 2

5

 040-0006-63 Pan Head Screw #6 x 5/8” 3

6

 050-0366-00-791 Door Plate 2

7

 002-1919-00 Base Double Door Keyed Lock Kit - includes items 1 thru 6 1

8

 002-1921-00 Overhead Double Door Keyed Lock Kit - includes items 1 thru 6 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-1926-00
Serial Number All
Used with Models Midmark Synthesis® Cabinetry Tall Split Unit

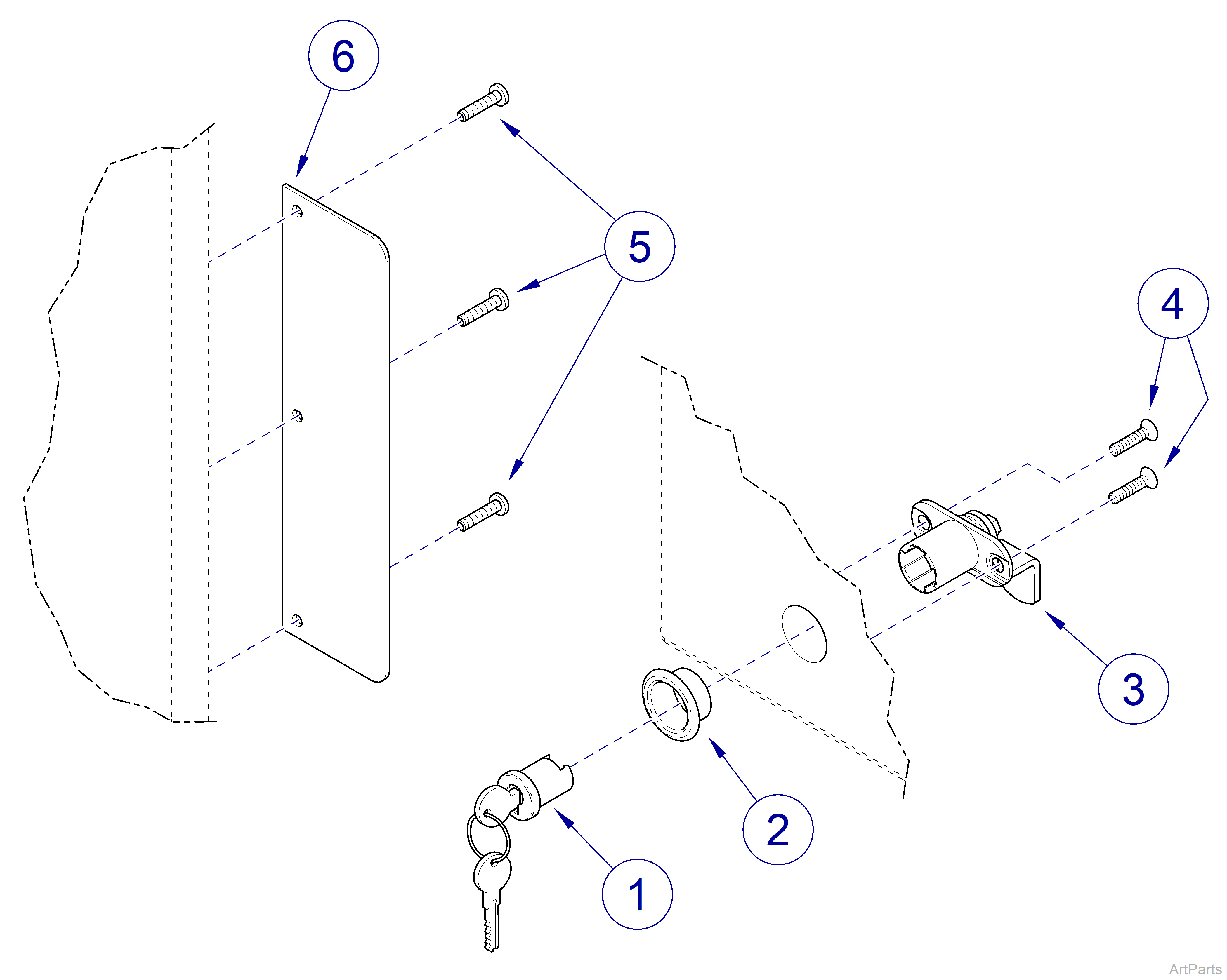

Midmark Synthesis® Cabinetry Double Door Keyed Lock Kit

Midmark Synthesis® Cabinetry Tall Double Door Keyed Lock Kits
Item Part Number Description Qty

1

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

2

 016-0564-00 Lock Bezel 1

3

 029-6655-00 Cam Lock 1

4

 040-0006-71 Flat Head Screw #6 x 5/8” 2

5

 040-0006-63 Pan Head Screw #6 x 5/8” 6

6

 050-0366-00-791 Door Plate 2

7

 002-1926-00 Tall Split / Tall Overhead Double Door Keyed Lock Kit - includes items 1 thru 6 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
