9A260001 External Condensing Tank
|
Accessory Number |
9A260001 |
| Serial Number Prefixes | LT, LV, RN, RP, RR, RS, RT, RV, RW, RX, RY, RZ, and V |
| Used with Models | M9/M11 |

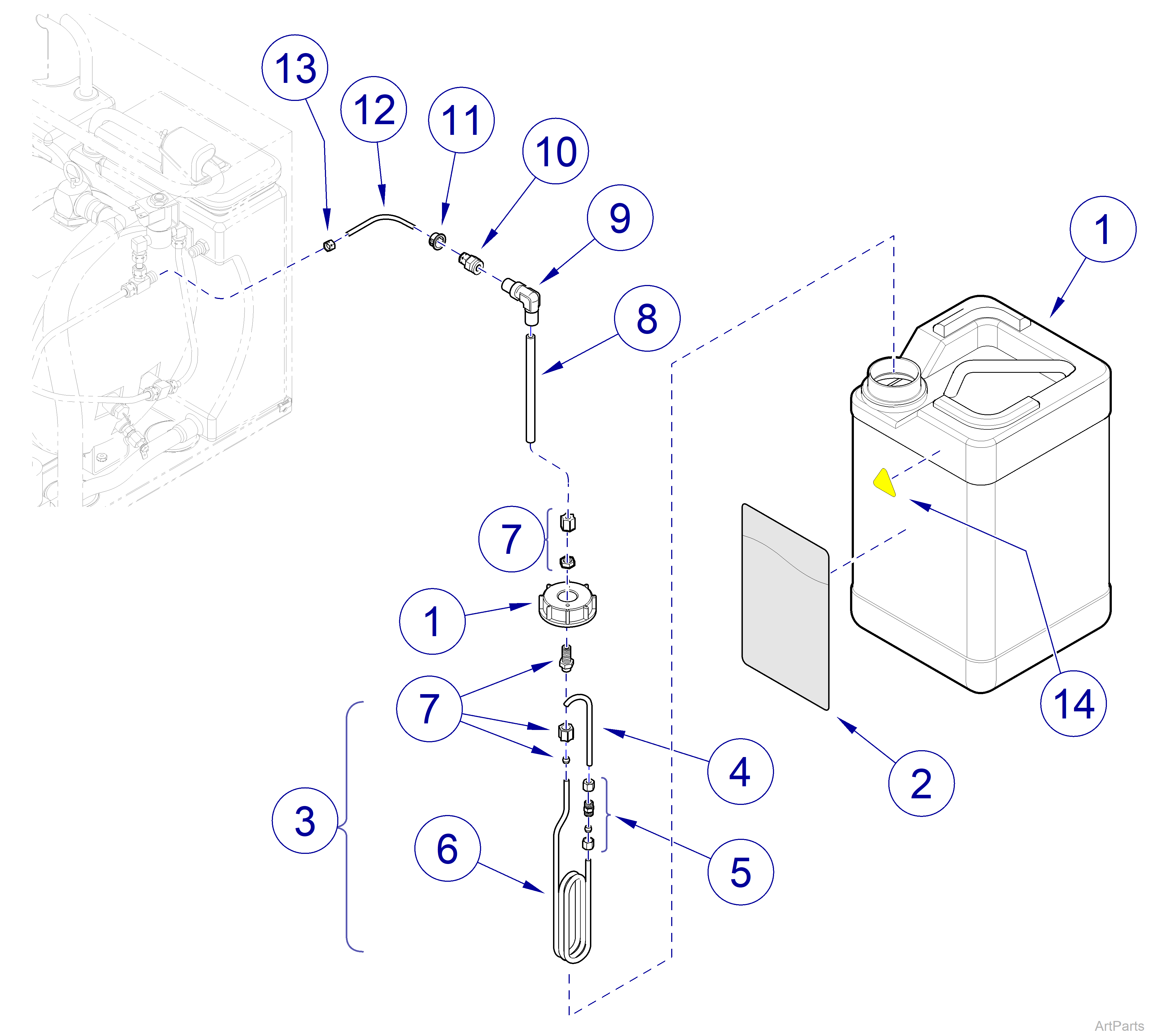

| 9A260001 External Condensing Tank | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-1014-01 | External Condensing Tank | 1 |
|
2 |
061-0738-00 | Tank Label | 1 |
|
3 |
029-2356-00 | Tank Coil Assembly - Includes items 4 thru 6 | 1 |
|
4 |
014-0351-00 | Coil Spout | 1 |
|
5 |
014-0352-00 | 1/4” Male Conector | 1 |
|
6 |
014-0330-00 | Condensing Coil | 1 |
|
7 |
014-0350-00 | Plastic Bulkhead Union | 1 |
|
8 |
053-0390-04 | Tube - sold by the foot | 5 |
|
9 |
014-0341-02 | 90° Elbow Fitting | 1 |
|
10 |
014-0383-01 | Female Connector | 1 |
|
11 |
053-0068-11 | Snap Bushing | 1 |
|
12 |
014-0431-00 | Tubing | 1 |
|
13 |
014-0392-00 | Compression Sleeve | 1 |
|
14 |
061-0726-00 |
Hot Surface Label | NSS |
|
15 |
9A260001 |
External Condensing Tank - Includes items 1 thru 14 |
NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
