Midmark Synthesis® Cabinetry Drawer Keyed Lock Kits

Accessory Number

 002-1901-xx
Date Prior to 4/1/2021
Used with Models Midmark Synthesis® Cabinetry Base/Mobile/Desk

2" and 4" Drawer Lock Kits

Midmark Synthesis® Cabinetry Single Drawer Lock Kits

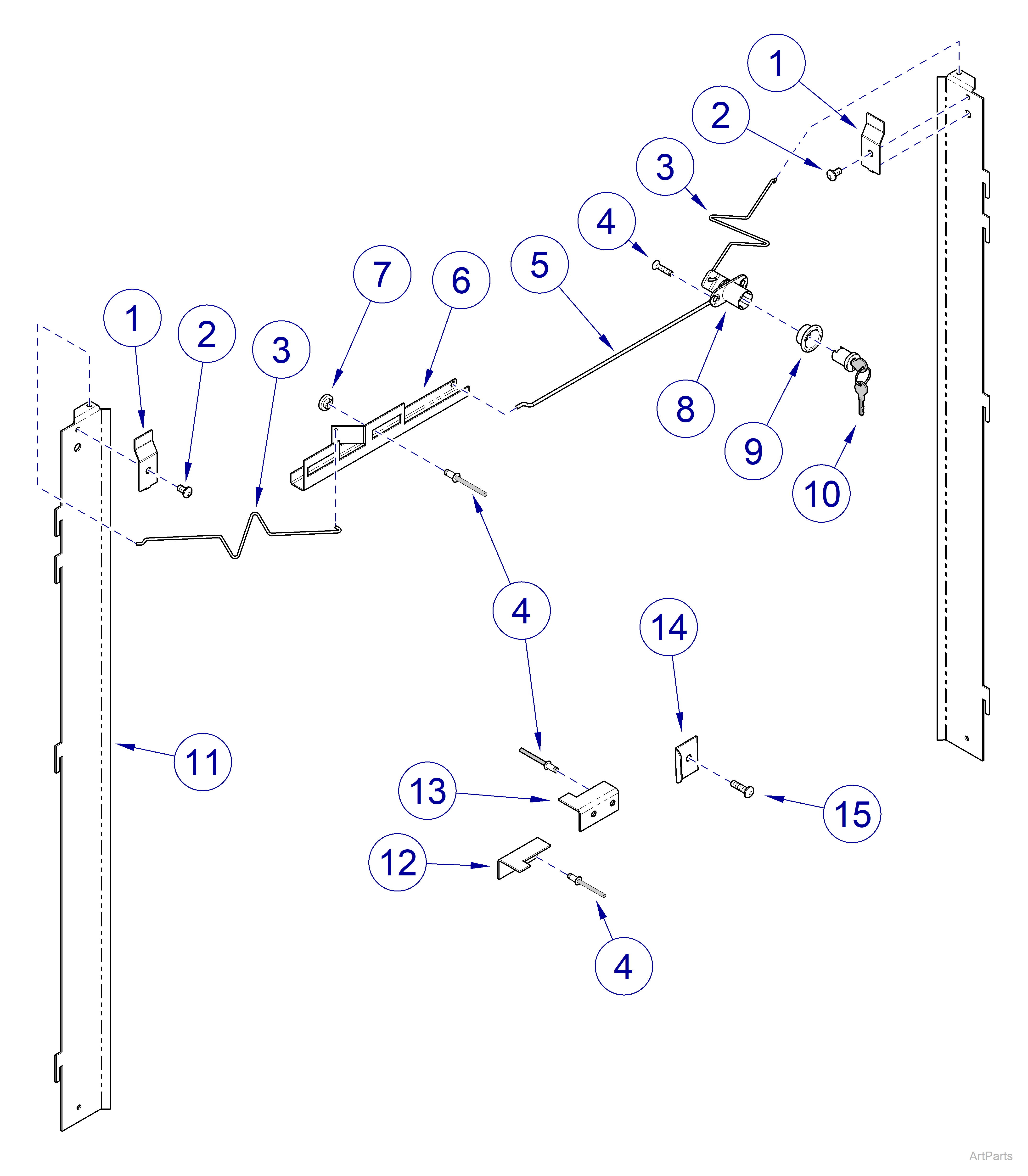

Item Part Number Description Qty

1

 050-9777-00-791 Lock Bar Bracket 1

2

 040-0010-109 Screw #10 -24 x 3/8” 1

3

 025-0122-00 Lock Bar Spring 1

4

 042-0010-29 Pop Rivets 0.156” x 0.379” 1

5

 029-6576-00 Cam Lock 4

6

 050-9704-00-791 Lock Body Bracket 1

7

 016-0564-00 Lock Bezel 1

8

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

9

   RH Lock Bar - Contact Technical Service for Part Numbers 1

10

 050-9995-00-791 Drawer Lock Bracket - 1 per Drawer AR

11

 040-0010-48 Screw #10 x 5/8” - 1 per Lock Bracket AR

12

 Lock Kit Options - includes items 1 thru 11
  002-1901-00 Desk Unit 1
  002-1901-01 Base and Mobile: 2 - 2” / 1 - 4” Drawers 1
  002-1901-02 Base and Mobile: 4 - 2” / 2 - 4” Drawers 1
  002-1901-03 36” Base and 33” Mobile: All Drawers 1
  002-1901-04 34” Base and 31” Mobile: All Drawers 1
  002-1901-05 30” Base and 27” Mobile: All Drawers 1
  002-1901-06 42” Base: All Drawers 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-1901-xx
Date After 4/1/2021
Used with Models Midmark Synthesis® Cabinetry Base/Mobile/Desk

2" and 4" Drawer Lock Kits

Midmark Synthesis® Cabinetry Single Drawer Lock Kits

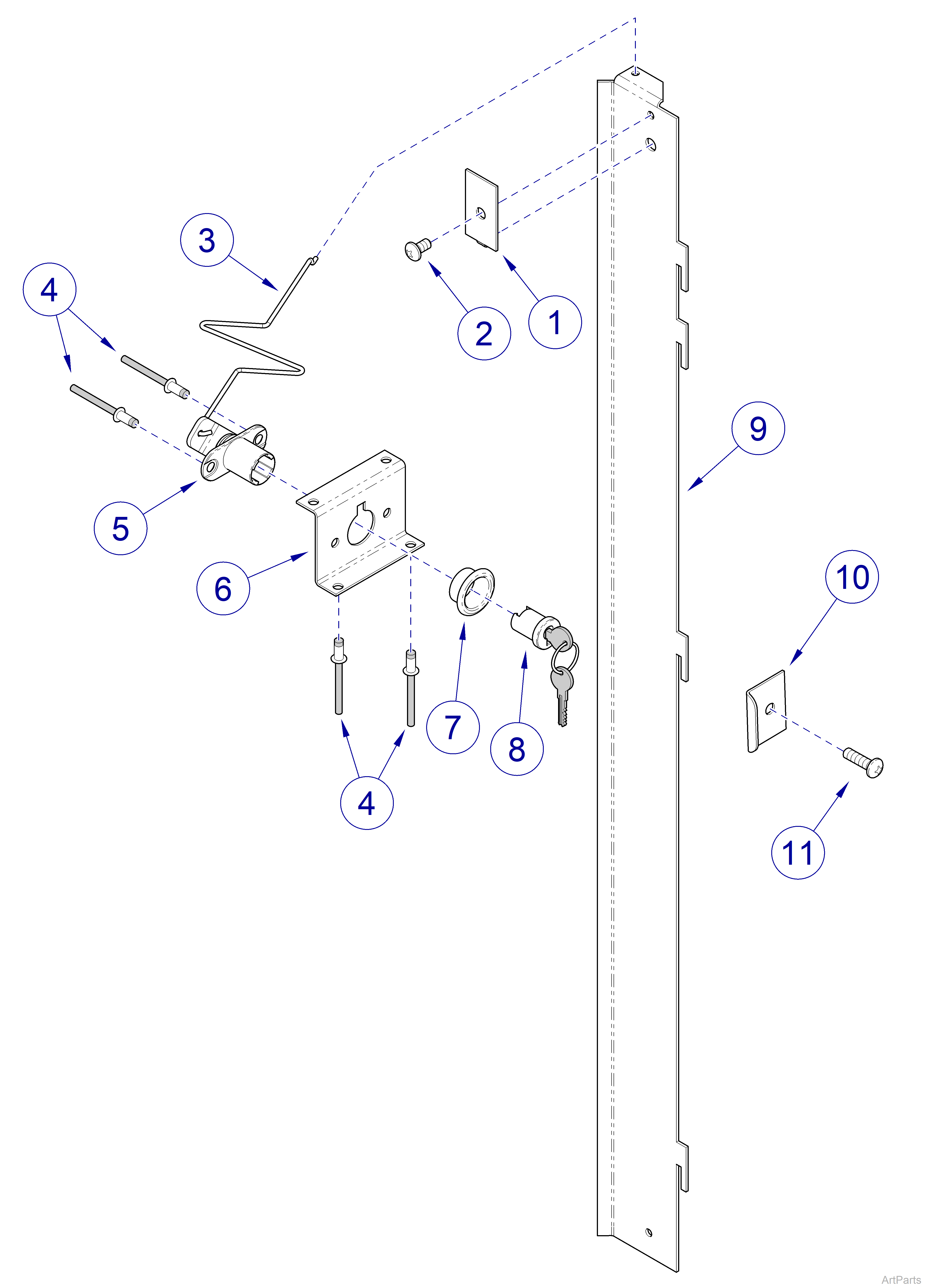

Item Part Number Description Qty

1

 050-9777-00-791 Lock Bar Bracket 1

2

 040-0010-109 Screw #10 -24 x 3/8” 1

3

 025-0122-00 Lock Bar Spring 1

4

 042-0010-29 Pop Rivets 0.156” x 0.379” 1

5

 029-6576-00 Cam Lock 4

6

 050-9704-00-791 Lock Body Bracket 1

7

 016-0564-00 Lock Bezel 1

8

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

9

   RH Lock Bar - Contact Technical Service for Part Numbers 1

10

 050-9995-00-791 Drawer Lock Bracket - 1 per Drawer AR

11

 040-0010-48 Screw #10 x 5/8” - 1 per Lock Bracket AR

12

 Lock Kit Options - includes items 1 thru 11
  002-1901-00 Desk Unit 1
  002-1901-01 Base and Mobile: 2 - 2” / 1 - 4” Drawers 1
  002-1901-02 Base and Mobile: 4 - 2” / 2 - 4” Drawers 1
  002-1901-03 36” Base and 33” Mobile: All Drawers 1
  002-1901-04 34” Base and 31” Mobile: All Drawers 1
  002-1901-05 30” Base and 27” Mobile: All Drawers 1
  002-1901-07 42" and 43" Base and Mobile: 6 - 2” / 3 - 4” Drawers 1


002-1901-08

 42” and 43" Base: All Drawers 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-1903-xx
Serial Number All
Used with Models Midmark Synthesis® Cabinetry Tall Split Unit Single

Tall Single Drawer Lock Kits

Midmark Synthesis® Cabinetry Tall Split Unit Single Drawer Lock Kits

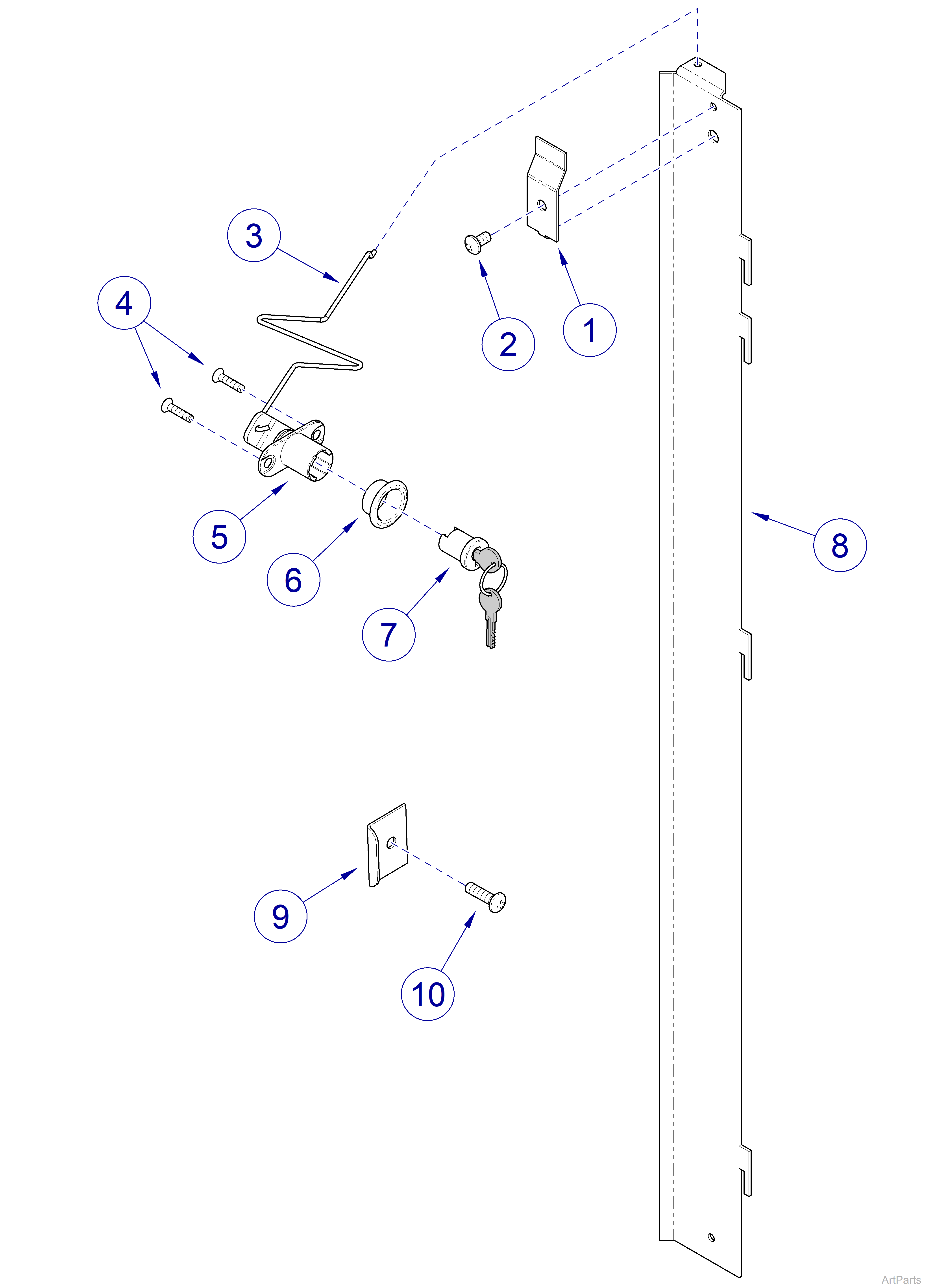

Item Part Number Description Qty

1

 050-9920-00-791 Lock Bar Bracket 1

2

 040-0010-109 Screw #10 -24 x 3/8” 1

3

 025-0122-00 Lock Bar Spring 1

4

 040-0006-71 Screw #6 x 5/8” 2

5

 029-6576-00 Cam Lock 1

6

 016-0564-00 Lock Bezel 1

7

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

8

   RH Lock Bar - Contact Technical Service for Part Numbers 1

9

 050-9995-00-791 Drawer Lock Bracket - 1 per Drawer AR

10

 040-0010-48 Screw #10 x 5/8” - 1 per Lock Bracket AR

11

 Lock Kit Options - includes items 1 thru 10
  002-1903-00 Tall Cabinet: 2 - 2” / 1 - 4” Drawers 1
  002-1903-01 Tall Cabinet: 4 - 2” / 2 - 4” Drawers 1
  002-1903-02 Tall Cabinet: All Drawers 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-1902-xx
Date Prior to 4/1/2021
Used with Models Midmark Synthesis® Cabinetry Base/Mobile

Drawer Lock Kits

Midmark Synthesis® Cabinetry Double Drawer Lock Kits

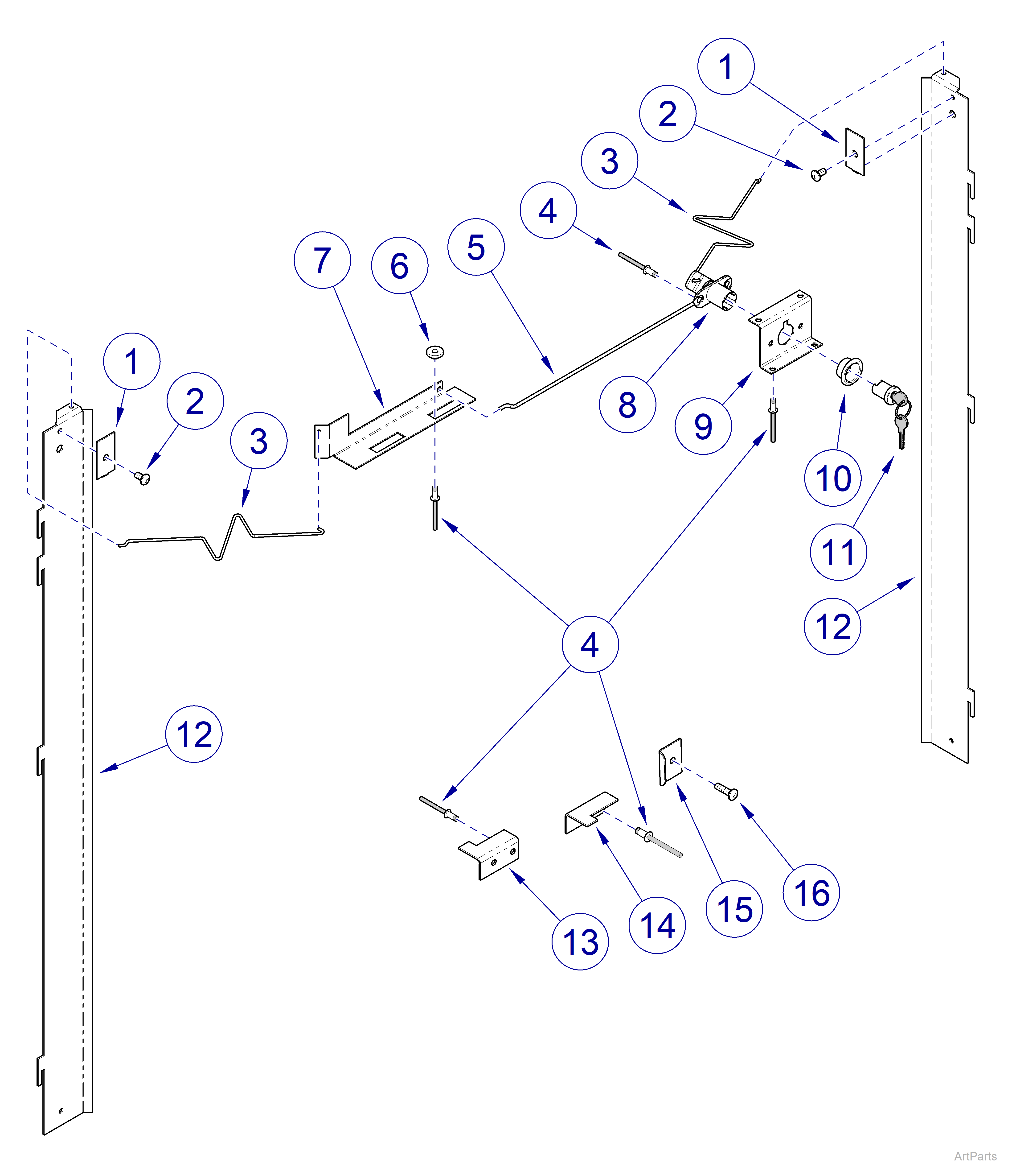

Item Part Number Description Qty

1

 050-9777-00-791 Lock Bar Bracket 1

2

 040-0010-109 Screw #10 -24 x 3/8” 2

3

 025-0122-00 Lock Bar Spring 2

4

 042-0010-29 Pop Rivets 0.156” x 0.379” 8

5

 Wire Linkage Options


016-1671-00

 4” (18” Cabinet Width) NSS


016-1671-01

 7” (21” Cabinet Width) NSS


016-1671-02

 10” (24” Cabinet Width) NSS


016-1671-03

 15.5” (30” Cabinet Width) NSS


016-1671-04

 21.5” (36” Cabinet Width) NSS

6

 053-2585-00 Slide Bracket Spacer 2

7

 050-9753-00-791 Slide Bracket 1

8

 029-6576-00 Cam Lock 1

9

 050-9704-00-791 Lock Body Bracket 4

10

 016-0564-00 Lock Bezel 1

11

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

12

   Lock Bar - Contact Technical Service for Part Numbers 1

13

 050-9702-00-791 RH File Lock Bracket - 1 per Drawer AR

14

 050-9701-00-791 LH File Lock Bracket - 1 per Drawer AR

15

 050-9995-00-791 Drawer Lock Bracket - 1 per Drawer AR

16

 040-0010-48 Screw #10 x 5/8” - 1 per Lock Bracket AR

17

 Lock Kit Options - includes items 1 thru 16
  002-1902-00 30” Base & Mobile: 2 - 2” / 1 - 4” Drawers w/ Doors 1
  002-1902-01 36” Base & Mobile: 2 - 2” / 1 - 4” Drawers w/ Doors 1
  002-1902-02 30” Base & Mobile: 4 - 2” / 2 - 4” Drawers w/ Doors 1
  002-1902-03 36” Base & Mobile: 4 - 2” / 2 - 4” Drawers w/ Doors 1
  002-1902-04 30" x 36” Base and 33” Mobile: All Drawers 1
  002-1902-05 36" x 36” Base and 33” Mobile: All Drawers 1
  002-1902-06 30" x 34” Base and 31” Mobile: All Drawers 1
  002-1902-07 36" x 34” Base and 31” Mobile: All Drawers 1
  002-1902-08 30" x 30” Base and 27” Mobile: All Drawers 1
  002-1902-09 36" x 30” Base and 27” Mobile: All Drawers 1
  002-1902-10 18" x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-11 21 x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-12 24" x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-13 30" x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-14 36" x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-15 18" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-16 21" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-17 24" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-18 30" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-19 36" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-20 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-21 21" x 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-22 24" x 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-23 30" x 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-24 36" x 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-25 18" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-26 21" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-27 24" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-28 30" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-29 36" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-30 18” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-31 21” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-32 24” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-33 30” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-34 36” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-35 18” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-36 21” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-37 24” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-38 30” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-39 36” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-40 30” x 42” Base: All Drawer 1
  002-1902-41 36” x 42” Base: All Drawer 1
  002-1902-42 18” x 42” Base: All / 1 - File Drawer 1
  002-1902-43 21” x 42” Base: All / 1 - File Drawer 1
  002-1902-44 24” x 42” Base: All / 1 - File Drawer 1
  002-1902-45 30” x 42” Base: All / 1 - File Drawer 1
  002-1902-46 36” x 42” Base: All / 1 - File Drawer 1
  002-1902-47 18” x 42” Base: All / 2 - File Drawers 1
  002-1902-48 21” x 42” Base: All / 2 - File Drawers 1
  002-1902-49 24” x 42” Base: All / 2 - File Drawers 1
  002-1902-50 30” x 42” Base: All / 2 - File Drawers 1
  002-1902-51 36” x 42” Base: All / 2 - File Drawers 1
  002-1902-52 18” x 42” Base: All / 3 - File Drawers 1
  002-1902-53 21” x 42” Base: All / 3 - File Drawers 1
  002-1902-54 24” x 42” Base: All / 3 - File Drawers 1
  002-1902-55 30” x 42” Base: All / 3 - File Drawers 1
  002-1902-56 36” x 42” Base: All / 3 - File Drawers 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-1902-xx
Date After 4/1/2021
Used with Models Midmark Synthesis® Cabinetry Base/Mobile

Drawer Lock Kits

Midmark Synthesis® Cabinetry Double Drawer Lock Kits
Item Part Number Description Qty

1

 050-9777-00-791 Lock Bar Bracket 1

2

 040-0010-109 Screw #10 -24 x 3/8” 2

3

 025-0122-00 Lock Bar Spring 2

4

 042-0010-29 Pop Rivets 0.156” x 0.379” 8

5

 Wire Linkage Options


016-1671-00

 4” (18” Cabinet Width) NSS


016-1671-01

 7” (21” Cabinet Width) NSS


016-1671-02

 10” (24” Cabinet Width) NSS


016-1671-03

 15.5” (30” Cabinet Width) NSS


016-1671-04

 21.5” (36” Cabinet Width) NSS

6

 053-2585-00 Slide Bracket Spacer 2

7

 050-9753-00-791 Slide Bracket 1

8

 029-6576-00 Cam Lock 1

9

 050-9704-00-791 Lock Body Bracket 4

10

 016-0564-00 Lock Bezel 1

11

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

12

   Lock Bar - Contact Technical Service for Part Numbers 1

13

 050-9702-00-791 RH File Lock Bracket - 1 per Drawer AR

14

 050-9701-00-791 LH File Lock Bracket - 1 per Drawer AR

15

 050-9995-00-791 Drawer Lock Bracket - 1 per Drawer AR

16

 040-0010-48 Screw #10 x 5/8” - 1 per Lock Bracket AR

17

 Lock Kit Options - includes items 1 thru 16
  002-1902-00 30” Base & Mobile: 2 - 2” / 1 - 4” Drawers w/ Doors 1
  002-1902-01 36” Base & Mobile: 2 - 2” / 1 - 4” Drawers w/ Doors 1
  002-1902-02 30” Base & Mobile: 4 - 2” / 2 - 4” Drawers w/ Doors 1
  002-1902-03 36” Base & Mobile: 4 - 2” / 2 - 4” Drawers w/ Doors 1
  002-1902-04 30" x 36” Base and 33” Mobile: All Drawers 1
  002-1902-05 36" x 36” Base and 33” Mobile: All Drawers 1
  002-1902-06 30" x 34” Base and 31” Mobile: All Drawers 1
  002-1902-07 36" x 34” Base and 31” Mobile: All Drawers 1
  002-1902-08 30" x 30” Base and 27” Mobile: All Drawers 1
  002-1902-09 36" x 30” Base and 27” Mobile: All Drawers 1
  002-1902-10 18" x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-11 21 x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-12 24" x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-13 30" x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-14 36" x 36” Base and 33” Mobile: All / 1 - File Drawer 1
  002-1902-15 18" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-16 21" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-17 24" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-18 30" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-19 36" x 34” Base and 31” Mobile: All / 1 - File Drawer 1
  002-1902-20 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-21 21" x 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-22 24" x 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-23 30" x 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-24 36" x 30” Base and 27” Mobile: All / 1 - File Drawer 1
  002-1902-25 18" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-26 21" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-27 24" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-28 30" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-29 36" x 36” Base and 33” Mobile: All / 2 - File Drawers 1
  002-1902-30 18” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-31 21” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-32 24” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-33 30” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-34 36” x 34” Base and 31” Mobile: All / 2 - File Drawers 1
  002-1902-35 18” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-36 21” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-37 24” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-38 30” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-39 36” x 30” Base and 27” Mobile: All / 2 - File Drawers 1
  002-1902-57 30” x 42" and 43" Base: 6 - 2” / 3 - 4” Drawers 1
  002-1902-58 36” x 42" and 43" Base: 6 - 2” / 3 - 4” Drawers 1
  002-1902-59 30” x 42” and 43" Base: All Drawer 1
  002-1902-60 36” x 42” and 43" Base: All Drawer 1
  002-1902-61 18” x 42” Base: All / 1 - File Drawer 1
  002-1902-62 21” x 42” Base: All / 1 - File Drawer 1
  002-1902-63 24” x 42” Base: All / 1 - File Drawer 1
  002-1902-64 30” x 42” Base: All / 1 - File Drawer 1
  002-1902-65 36” x 42” Base: All / 1 - File Drawer 1
  002-1902-66 18” x 42” Base: All / 2 - File Drawers 1
  002-1902-67 21” x 42” Base: All / 2 - File Drawers 1
  002-1902-68 24” x 42” Base: All / 2 - File Drawers 1
  002-1902-69 30” x 42” Base: All / 2 - File Drawers 1
  002-1902-70 36” x 42” Base: All / 2 - File Drawers 1
  002-1902-71 18” x 42” Base: All / 3 - File Drawers 1
  002-1902-72 21” x 42” Base: All / 3 - File Drawers 1
  002-1902-73 24” x 42” Base: All / 3 - File Drawers 1
  002-1902-74 30” x 42” Base: All / 3 - File Drawers 1
  002-1902-75 36” x 42” Base: All / 3 - File Drawers 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 002-1904-xx
Serial Number All
Used with Models Midmark Synthesis® Cabinetry Tall Split Unit Double

Drawer Lock Kits

Midmark Synthesis® Cabinetry Tall Split Unit Double Drawer Lock Kits
Item Part Number Description Qty

1

 050-9777-00-791 Lock Bar Bracket 1

2

 040-0010-109 Screw #10 -24 x 3/8” 2

3

 025-0122-00 Lock Bar Spring 2

4

 040-0006-71 Screw #6 x 5/8” 8

5

 Wire Linkage Options


016-1671-00

 4” (18” Cabinet Width) NSS


016-1671-01

 7” (21” Cabinet Width) NSS


016-1671-02

 10” (24” Cabinet Width) NSS


016-1671-03

 15.5” (30” Cabinet Width) NSS


016-1671-04

 21.5” (36” Cabinet Width) NSS

6

 050-9816-00-791 Slide Bracket 1

7

050-2585-00

 Slide Bracket Spacer NLA

8

 029-6576-00 Cam Lock 1

9

 016-0564-00 Lock Bezel 1

10

 Lock Plug Options
  016-0567-00 100T 1
  016-0567-01 101T 1
  016-0567-02 102T 1
  016-0567-03 103T 1
  016-0567-04 104T 1
  016-0567-05 105T 1
  016-0567-08 106T 1
  016-0567-09 107T 1
  016-0567-10 108T 1
  016-0567-11 109T 1
  016-0567-12 110T 1
  016-0567-13 111T 1
  016-0567-14 112T 1
  016-0567-15 113T 1

11

   Lock Bar - Contact Technical Service for Part Numbers 1

12

 050-9701-00-791 LH File Lock Bracket - 1 per Drawer AR

13

 050-9702-00-791 RH File Lock Bracket - 1 per Drawer AR

14

 050-9995-00-791 Drawer Lock Bracket - 1 per Drawer AR

15

 040-0010-48 Screw #10 x 5/8” - 1 per Lock Bracket AR

16

 Lock Kit Options - includes items 1 thru 15
  002-1904-00 30" wide Tall Cabinet: 2 - 2” / 1 - 4” Drawers 1
  002-1904-01 36" wide Tall Cabinet: 1 - 4” Drawers 1
  002-1904-02 30" wide Tall Cabinet: 4 - 2” / 2 - 4” Drawers 1
  002-1904-03 36" wide Tall Cabinet: 2 - 4” Drawers 1
  002-1904-04 30" wide Tall Cabinet: All Drawers 1
  002-1904-05 36" wide Tall Cabinet: All Drawers 1
  002-1904-06 18" wide Tall Cabinet: All / 1 - File Drawers 1
  002-1904-07 21" wide Tall Cabinet: All / 1 - File Drawers 1
  002-1904-08 24" wide Tall Cabinet: All / 1 - File Drawers 1
  002-1904-09 30" wide Tall Cabinet: All / 1 - File Drawers 1
  002-1904-10 36" wide Tall Cabinet: All / 1 - File Drawers 1
  002-1904-11 18" wide Tall Cabinet: All / 2 - File Drawers 1
  002-1904-12 21" wide Tall Cabinet: All / 2 - File Drawers 1
  002-1904-13 24" wide Tall Cabinet: All / 2 - File Drawers 1
  002-1904-14 30" wide Tall Cabinet: All / 2 - File Drawers 1
  002-1904-15 36" wide Tall Cabinet: All / 2 - File Drawers 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
