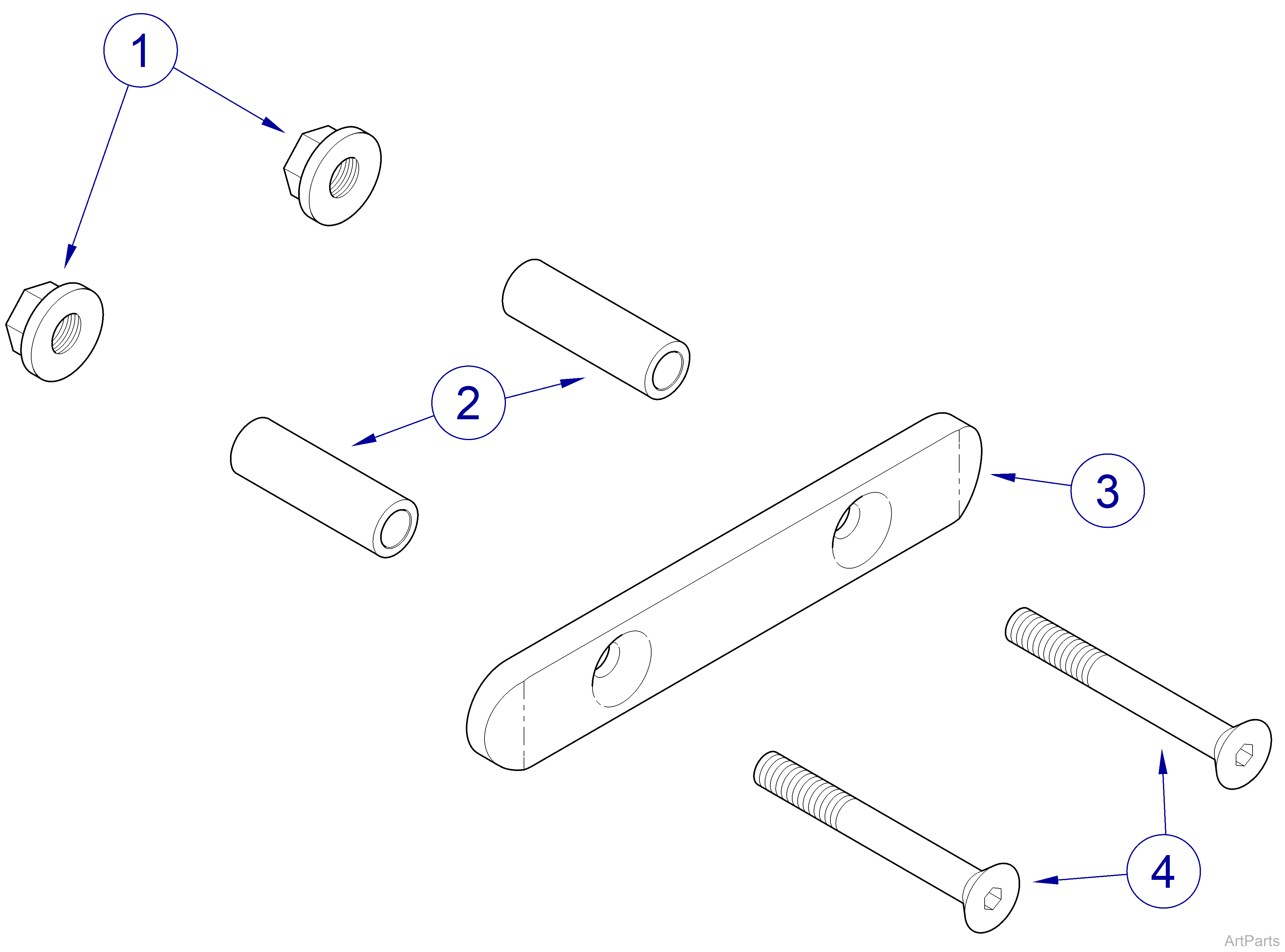

9A567 Seat Rail 28”
|
Accessory Number |
9A567 |
| Serial Number | All |
| Used with Models | 630 and 631 |
| 9A567 Seat Rail 28” | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
041-0375-12 | Nut 3/8-16 Hex | 4 |
|
2 |
057-1381-00 | Spacer | 4 |
|
3 |
050-8980-00 | Seat Rail | 2 |
|
4 |
040-0375-35 | Screw 3/8-16 x 3” | 4 |
|
5 |
077-0105-00 | Torque Specs - not shown | 1 |
|
6 |
9A567 | Seat Rail 28” - includes items 1 - 6 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
