9A33000x Caster Base Assembly
Model Range 9A330001
|
Accessory Number |
9A330001 |
| Serial Number | All |
| Used with Models | 641, 646, and 647 |

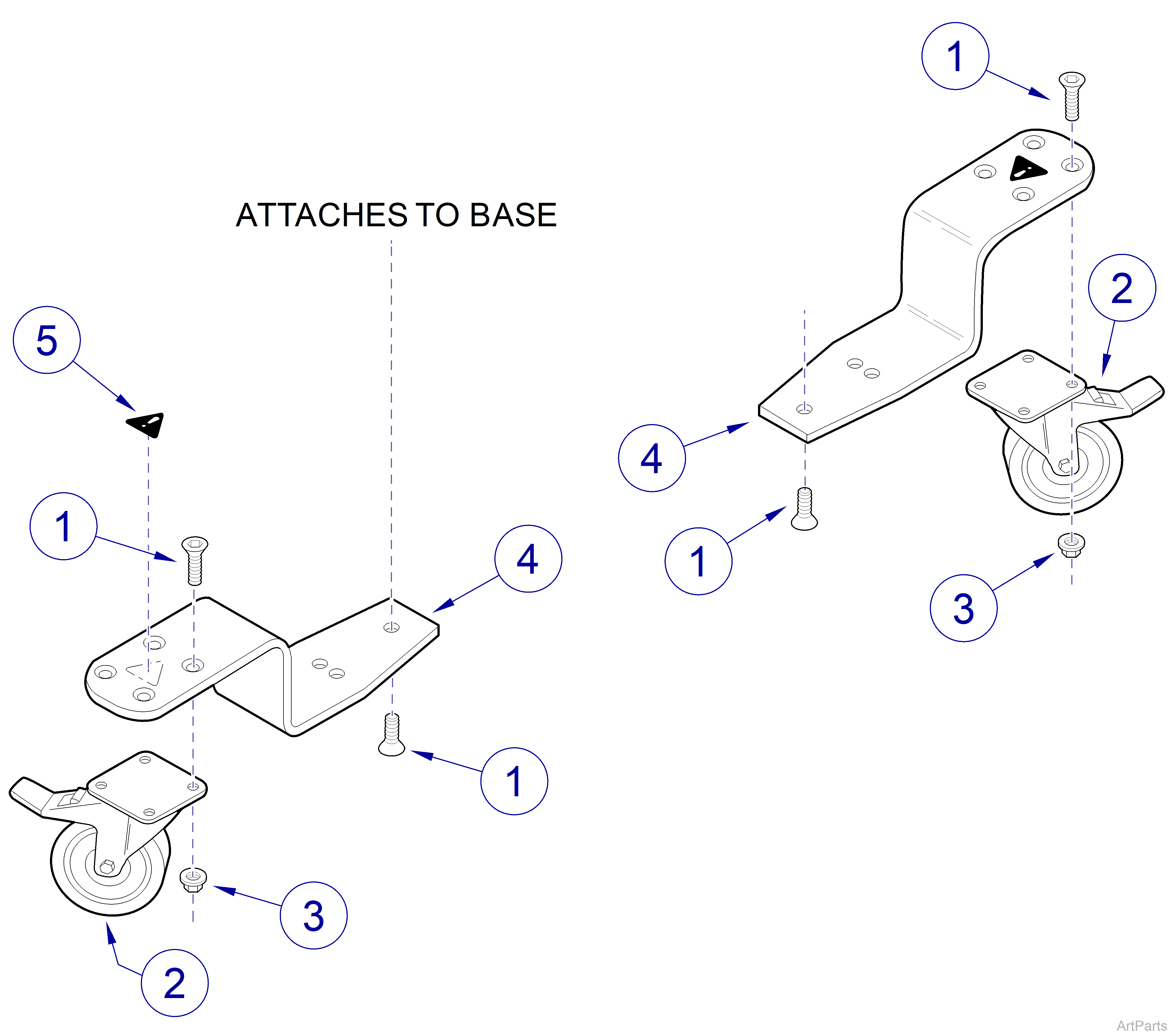

| 9A330001 Caster Base Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0312-08 | Screw | 24 |
|
2 |
016-0556-00 | Locking Caster | 4 |
|
3 |
041-0312-05 | Nut | 16 |
|
4 |
030-1504-00 | Bracket Weldment | 4 |
|
5 |
561-0240-00 | Safety Alert Decal | 4 |
|
6 |
Allen Wrench - 3/16” - not shown | 1 | |
|
7 |
9A330001 | Caster Base Assembly - Includes items 1 thru 6 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
