9A405 Wrist Rest Accessory Kit
|
Accessory Number |
9A405 |
| Serial Number | All |
| Used with Models | 641 |

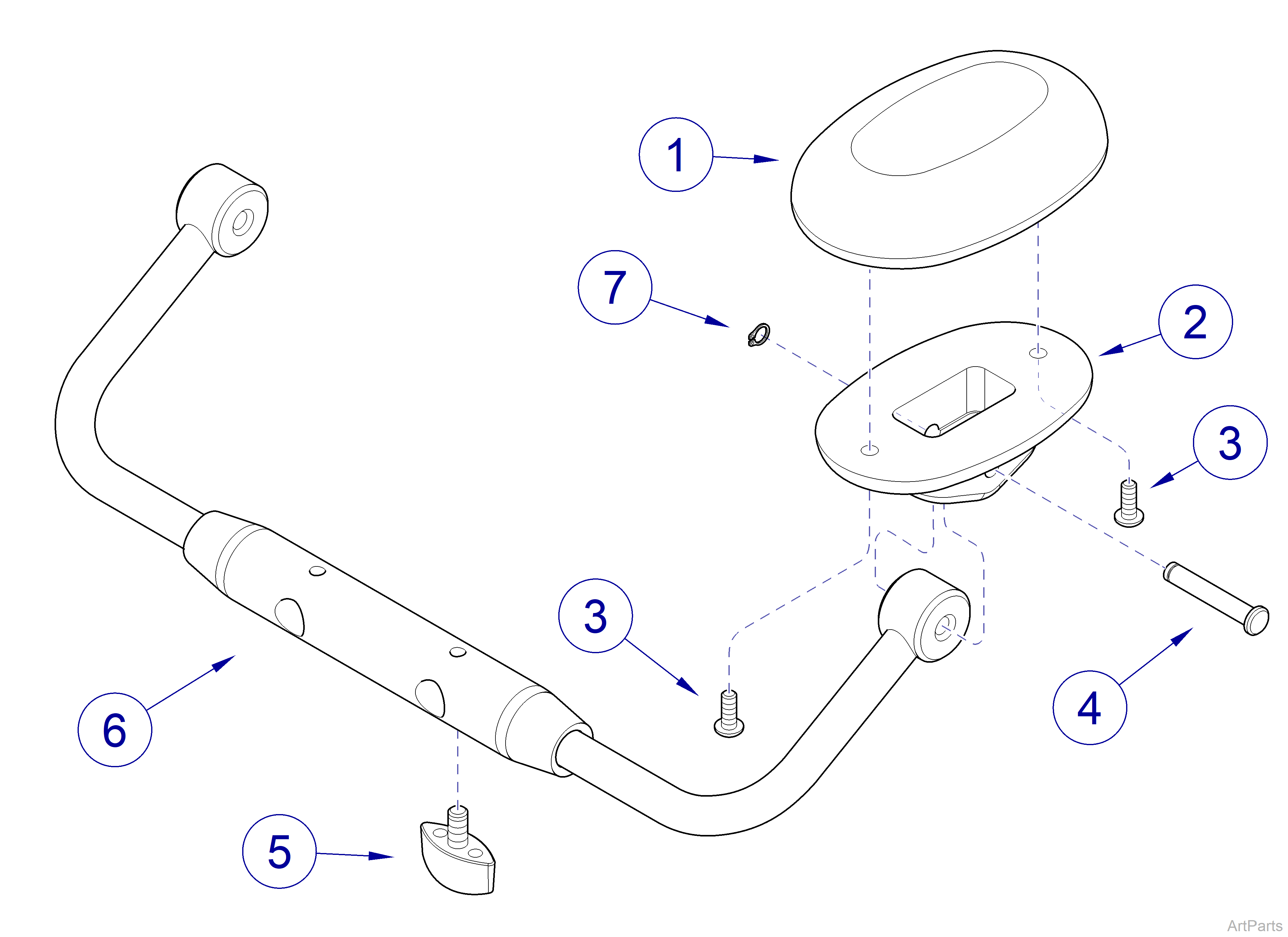

| 9A405001 Wrist Rest | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
028-0672-00-312 | Upholstered Pad - Black only | 2 |
|
2 |
053-1677-00-312 | Pad Support | 2 |
|
3 |
040-0010-129 | Screw #10-24 x 1/2” | 4 |
|
4 |
042-0606-01 | Clevis Pin | 2 |
|
5 |
016-1128-00 | T-Knob | 2 |
|
6 |
030-1640-00 | Wrist Rest Weldment | 1 |
|
7 |
042-0056-05 | Retaining Ring | 2 |
| 8 | 9A405001 | Wrist Rest Accessory Kit - Includes items 1 thru 7 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
