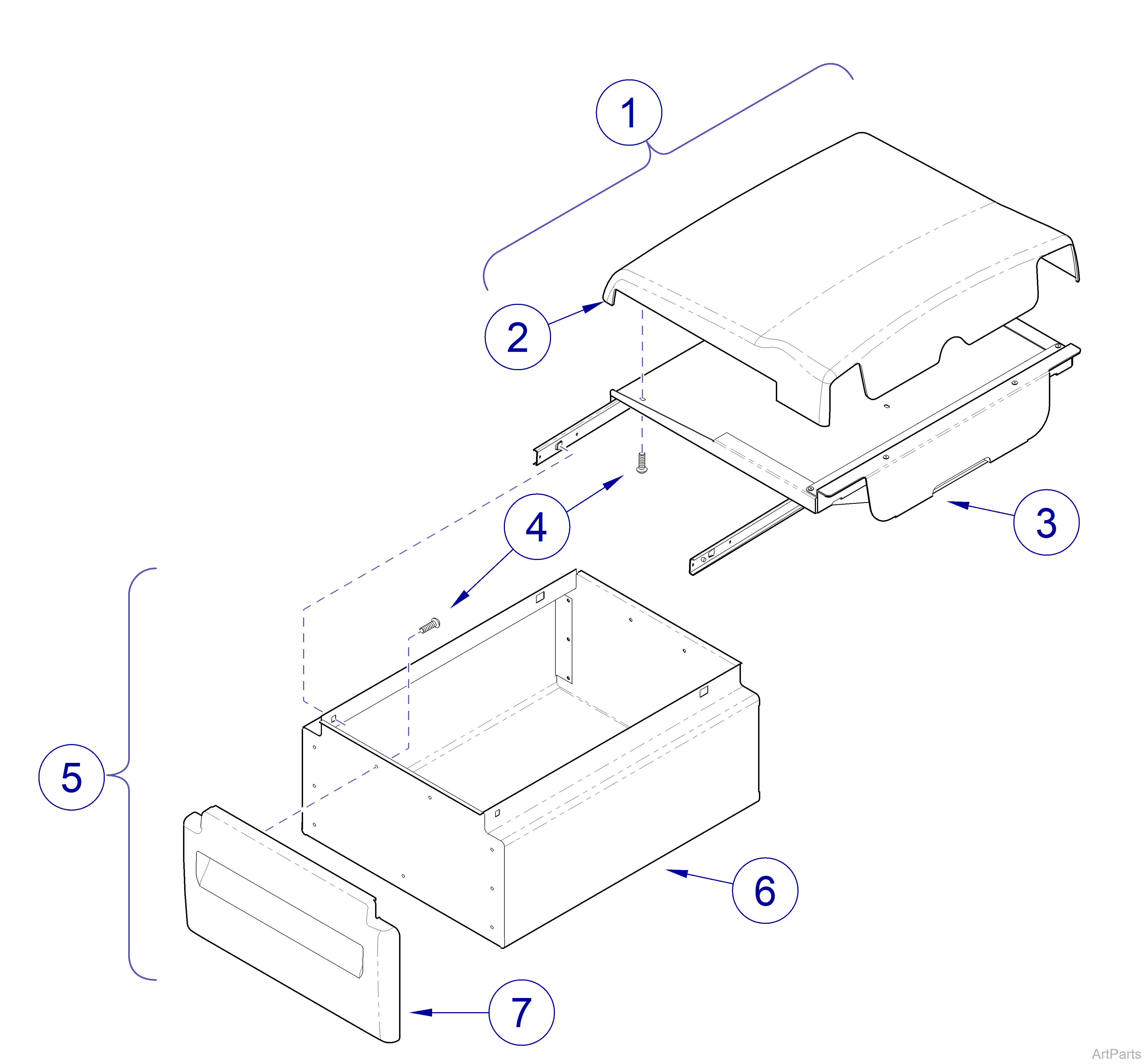

9A417 Storage Drawer Assembly Accessory
|
Accessory Number |
9A417001 |
| Serial Number | All |
| Used with Models | 222-015 thru -017, 223-015 thru -016 and 623-009 thru -011 |
| 9A417 Storage Drawer Assembly Accessory | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4263-00 | Support Assembly - Includes items 2 thru 4 | 1 |
|
2 |
053-1910-00 | Top Cover | 1 |
|
3 |
Drawer Support Slide Assembly - must order item 1 | NSS | |
|
4 |
042-0184-01 | Screw M4 x 12mm | 17 |
|
5 |
029-4278-00 | Drawer Assembly - Includes items 4, 6, & 7 | 1 |
|
6 |
Drawer Shell - must order item 5 | NSS | |
|
7 |
053-1909-00 | Drawer Front | 2 |
| 8 |
9A417001 |
Storage Drawer Assembly Accessory - Includes items 1 thru 7 | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
