9A568 Seat Rail Assembly
|
Accessory Number |
9A568 |
| Serial Number | All |
| Used with Models | 630 and 631 |

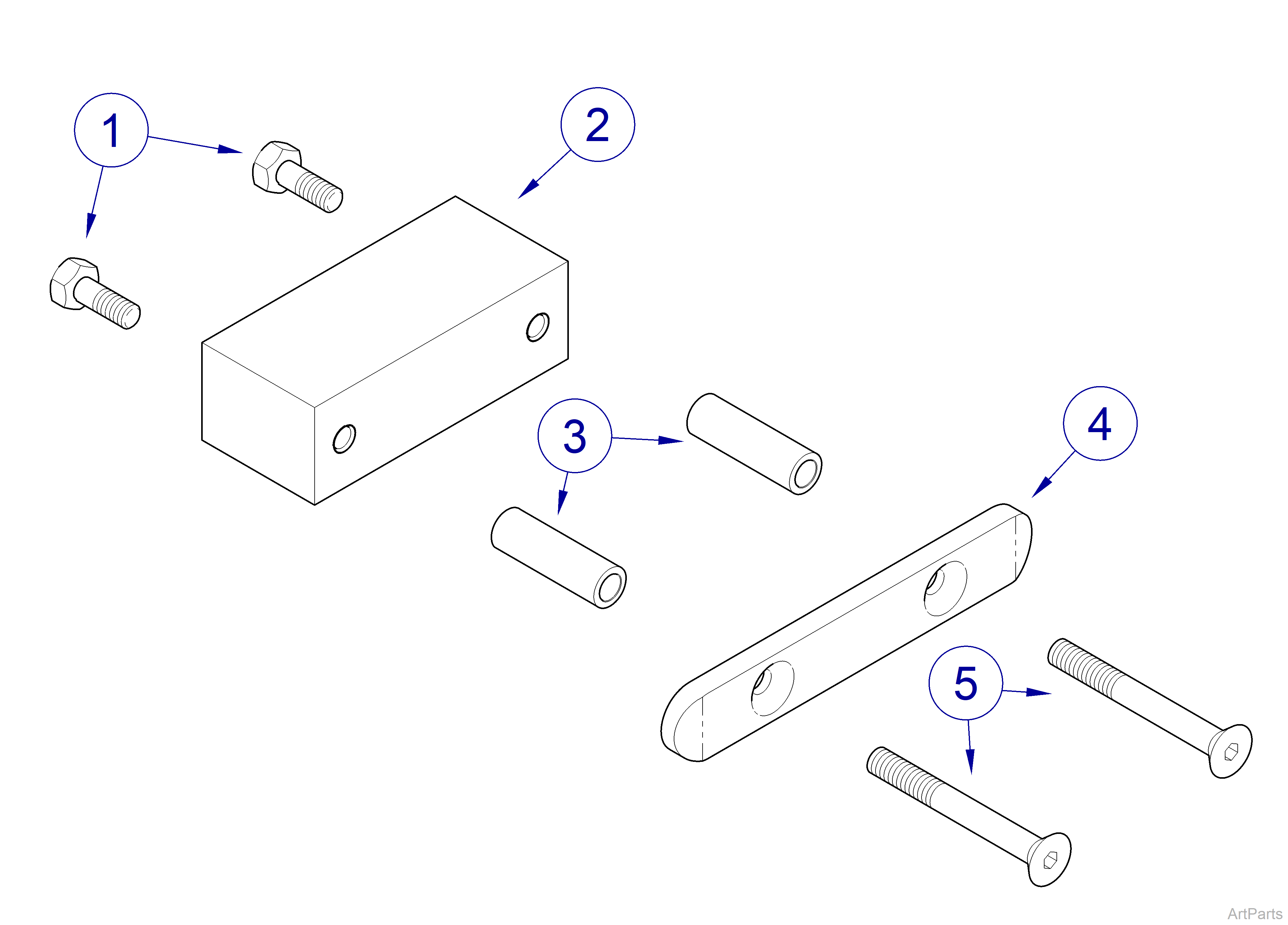

Install seat rails on both sides - one side is shown.
| 9A568 Seat Rail Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0375-00 | Screw 3/8-16 x 3/4” Flange Head | 4 |
|
2 |
057-1343-00-xxx | Block | 2 |
|
3 |
051-8980-00 | Spacer | 4 |
|
4 |
050-8980-00 | Seat Rail | 2 |
|
5 |
040-0375-35 | Screw 3/8-16 x 3” | 4 |
|
6 |
077-0105-00 | Torque Specs - not shown | 1 |
|
7 |
9A568001 | Seat Rail Assembly - Includes items 1 thru 7 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
