153650 Ultra Chair LR Light Mount Adapter Kit
|
Accessory Number |
153650 |
| Serial Number | All |
| Used with Models | Ultra Chair, Dental LED and Halogen Lights |

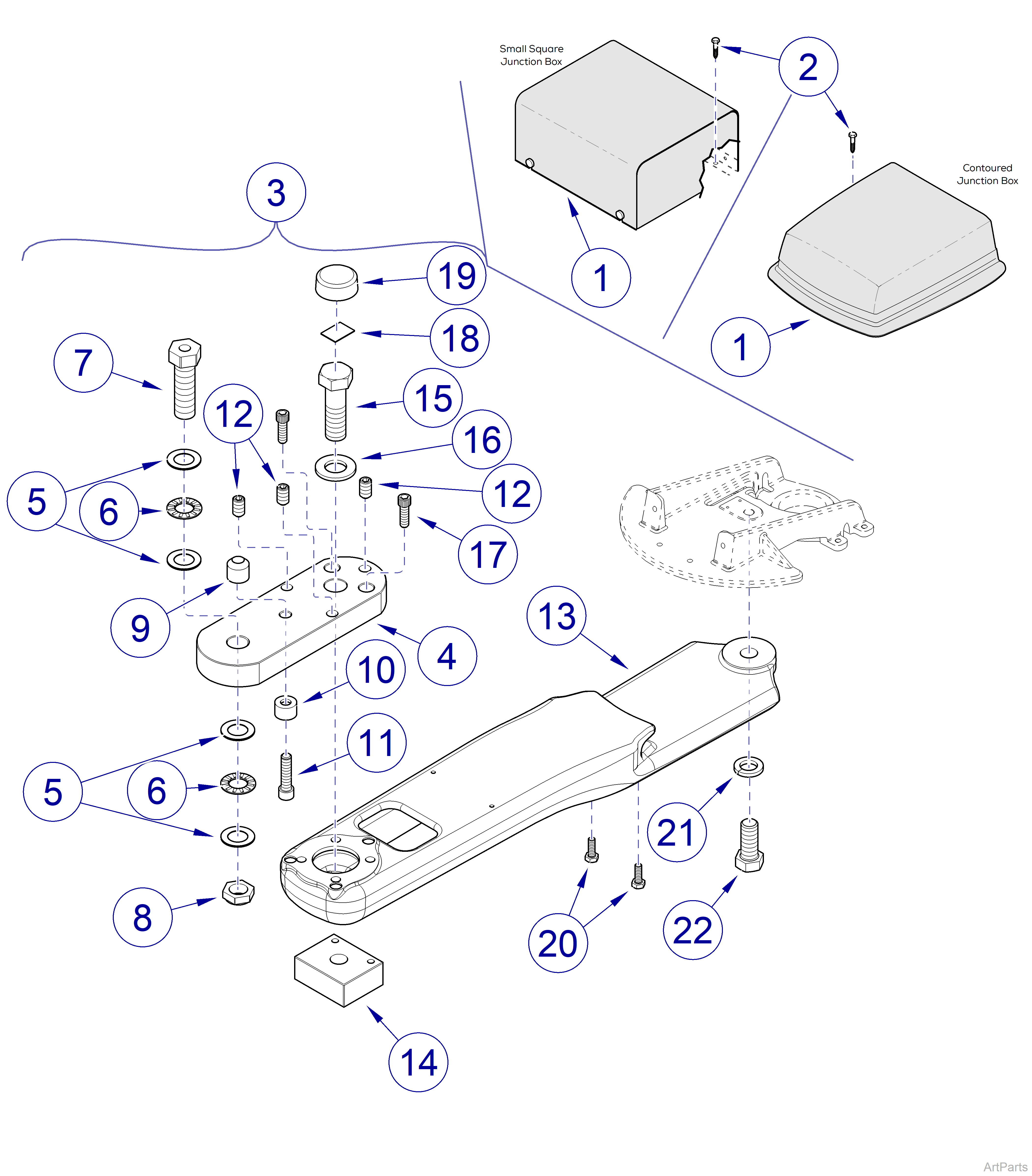

| 153650 Ultra Chair LR Light Mount Adapter Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Junction Box Options | ||
| 029-2695-00 | Small Square Junction Box | 1 | |
| 153605-002 | Contoured Junction Box | 1 | |
|
2 |
106009 | Screw | 4 |
|
3 |
029-2696-00 | LR Ultra Chair Mount Assembly - Includes Items 4 thru 22 | 1 |
|
4 |
050-5100-50 | LR Extension Plate | 1 |
|
5 |
119034 | Thrust Race | 2 |
|
6 |
119033 | Thrust Bearing | 1 |
|
7 |
042-0206-00 | Screw | 1 |
|
8 |
122553 | Stop Nut | 1 |
|
9 |
122550 | Light Arm Stop Bumper | 1 |
|
10 |
122549 | Unit Arm Stop Bumper | 1 |
|
11 |
107995 | Screw | 1 |
|
12 |
122547 | Set Screw | 3 |
|
13 |
020-0202-51 | Console / LR Mount Arm | 1 |
|
14 |
050-4920-50 | LR Nut Plate | 1 |
|
15 |
040-0750-02 | Screw | 1 |
|
16 |
122554 | Flat Washer | 2 |
|
17 |
040-0312-41 | Screw - Apply Item 24 | 2 |
|
18 |
275184 | 3/4” Double Sided Tape | AR |
|
19 |
122596-01 | Unit Bolt Cover | 2 |
|
20 |
040-0250-186 | Bolt- Apply Item 24 | 1 |
|
21 |
045-0001-91 | Lockwasher | 1 |
|
22 |
040-0625-04 | Screw | 1 |
|
23 |
015-2329-00 | Power / LIN Light Harness - Not Shown | 1 |
|
24 |
042-0024-03 | Medium Strength Screw Adhesive | AR |
|
25 |
153650 | Ultra Chair LR Light Mount Adapter Kit - Includes Items 1 thru 23 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
