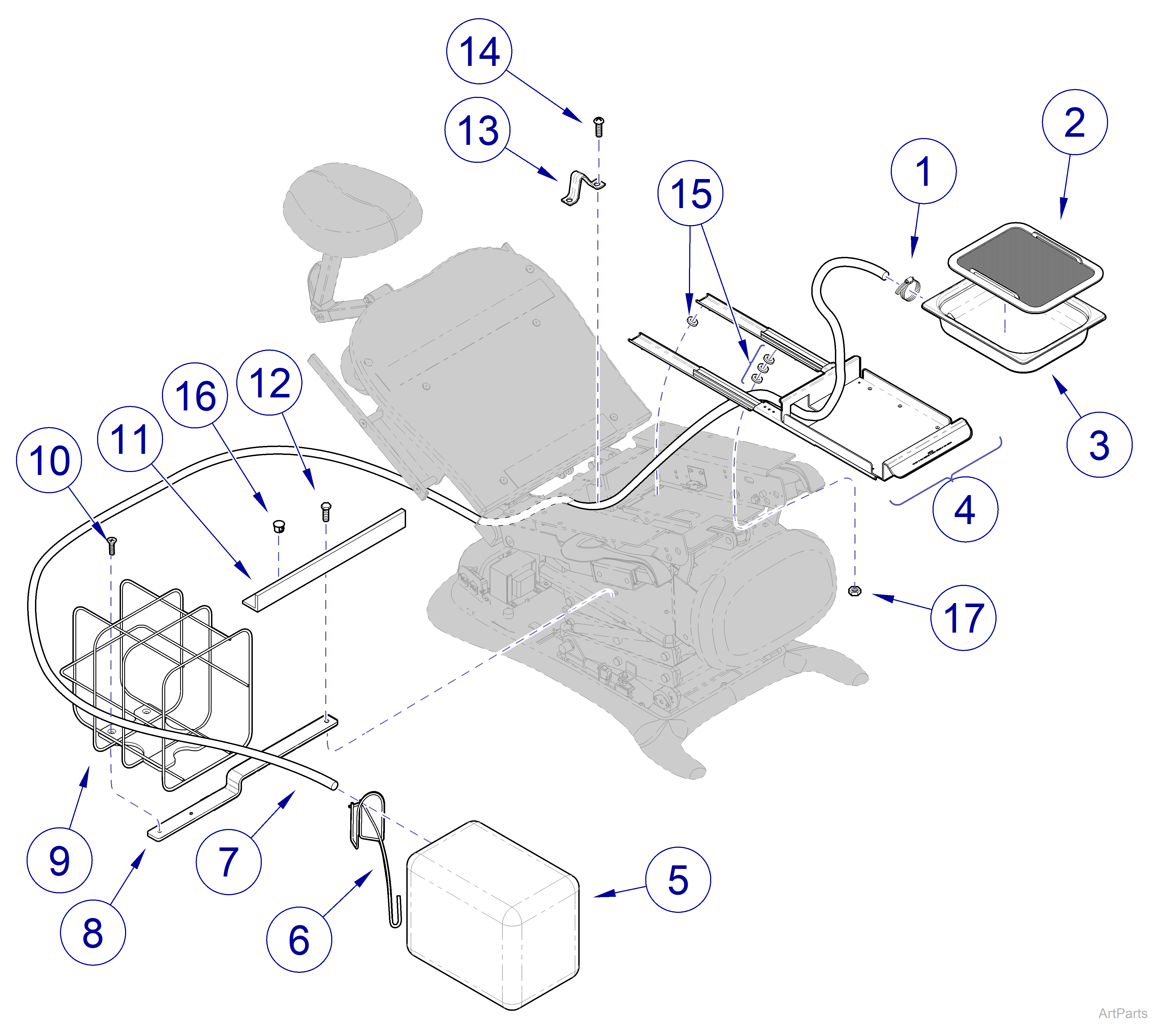

9A32900x Urology Drain System
|
Accessory Number |
9A329004 |
| Serial Number | All |
| Used with Models | 230 |
| 9A32900x Urology Drain System | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
016-0885-01 | Hose Clamp | 1 |
|
2 |
030-0647-00 | Screen | 1 |
|
3 |
030-1513-00 | Drain Pan | 1 |
|
4 |
029-3296-00 | Pan Holder Assembly | 1 |
|
5 |
053-0788-00 | Container | 1 |
|
6 |
016-0972-00 | Hose Clip | 1 |
|
7 |
053-1453-01 | Drain Hose | 1 |
|
8 |
Cage Bracket | ||
| 050-6066-00 | 9A32904 | 1 | |
|
9 |
030-1524-01 | Cage Weldment | 1 |
|
10 |
040-0250-17 | Screw 1/4-20 x 1/2” | 2 |
|
11 |
Spacer Cover Options | ||
| 050-5966-03 | 9A32904 | 1 | |
|
12 |
040-0312-41 | Hex Screw 5/16-18 x 1" | 3 |
|
13 |
050-5983-00 | Hose Guide | 1 |
|
14 |
Screw #10-24 x 3/8” |
2 | |
|
15 |
053-0382-00 | Nylon Washer | 7 |
|
16 |
053-0050-12 | Hole Plug | 2 |
|
17 |
041-0008-02 | Nut 8-32 - Not Included | 2 |
|
18 |
Urology Drain System Accessory Kit Options | ||
| 9A329004 | Urology Drain System Field install Kit - Includes items 1 thru 15 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
