002-1590-0x Multi-Compressor control Kit
|
Accessory Number |
002-1590-0x |
| Serial Number | All |
| Used with Models | PowerAir Compressor |

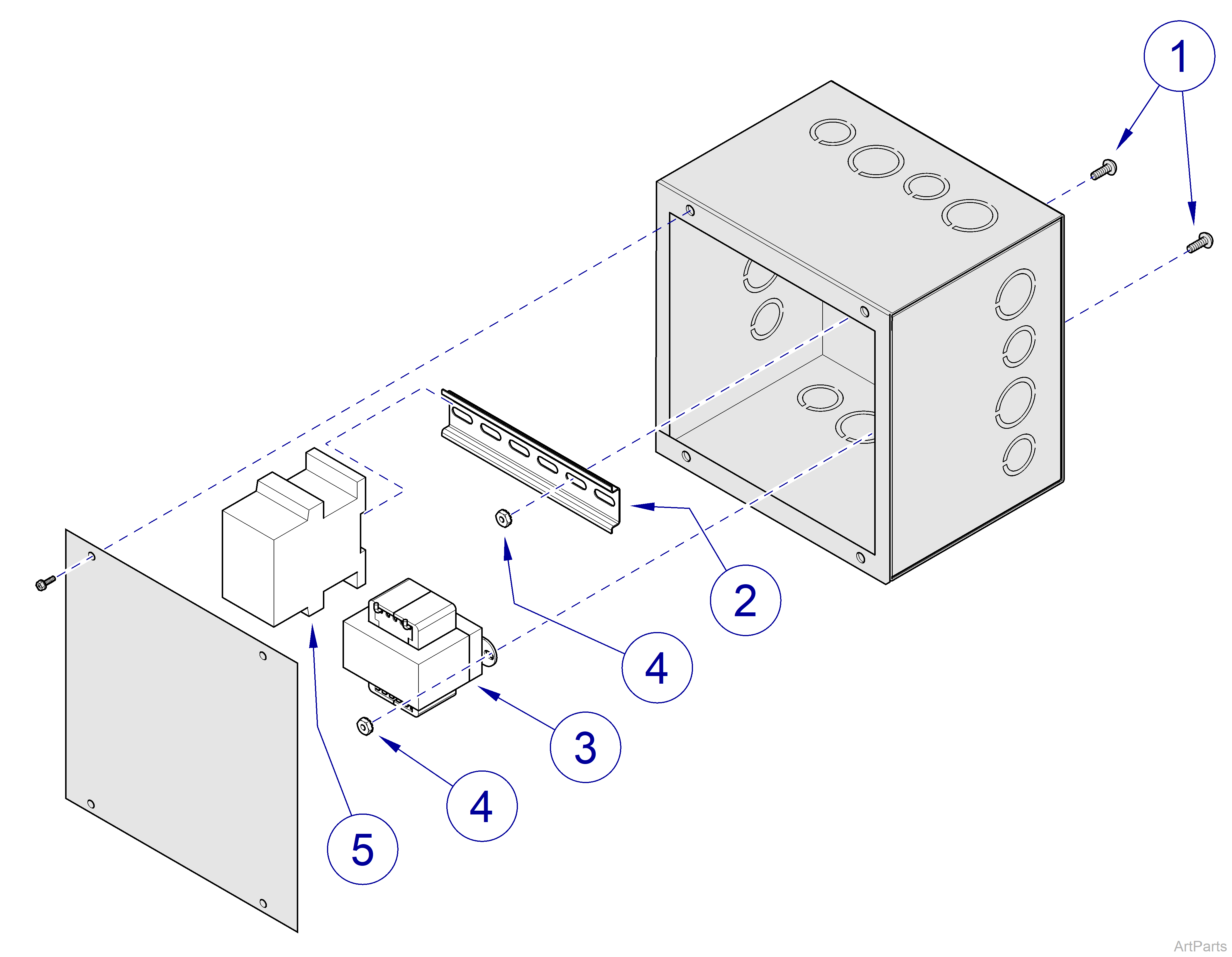

| 002-1590-0x Multi-Compressor Control Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0010-145 | Panhead Screw 0.190-24 x 0.500" | 4 |
|
2 |
62964303 | Perforated DIN Rail | 1 |
|
3 |
015-1986-00 | Transformer 240V / 115V 50/60/HZ | 1 |
|
4 |
041-0010-04 | Keps Nut with Tooth Lock Washer 0.190-21 | 4 |
|
5 |
015-3122-00 | 6-Pin Contactor | 1 |
|
6 |
Multi-Compressor Control Kit Options | ||
| 002-1590-00 | 115 VAC - Includes items 1 thru 5 | 1 | |
| 002-1590-01 | 230 VAC - Includes items 1 thru 5 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
