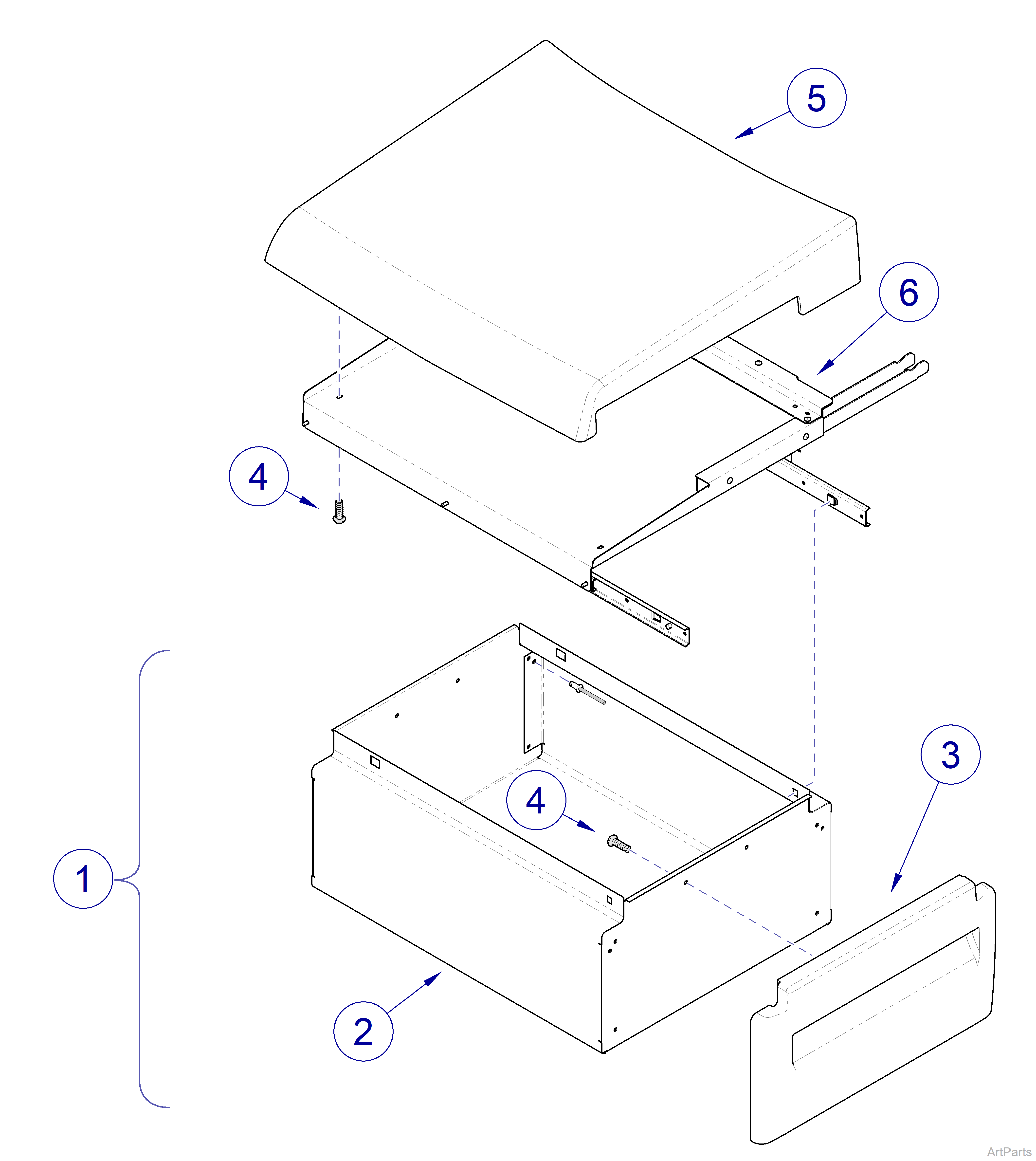

9A431001 Rear Storage Unit
|
Accessory Number |
9A431001 |
| Serial Number | All |
| Used with Models | 625 |
| 9A431001 Rear Storage Unit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4278-00 | Storage Drawer Assembly - Includes items 2 thru 4 | 1 |
|
2 |
050-7274-00-216 | Drawer | 1 |
|
3 |
053-1909-00 | Drawer Front | 2 |
|
4 |
042-0184-01 | Screw | 1 |
|
5 |
053-2004-00-271 | Top Cover | 1 |
|
6 |
029-4564-00 | Support Frame Assembly | 1 |
|
7 |
9A431001 |
Rear Storage Unit - Includes items 1 thru 6 |
NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
