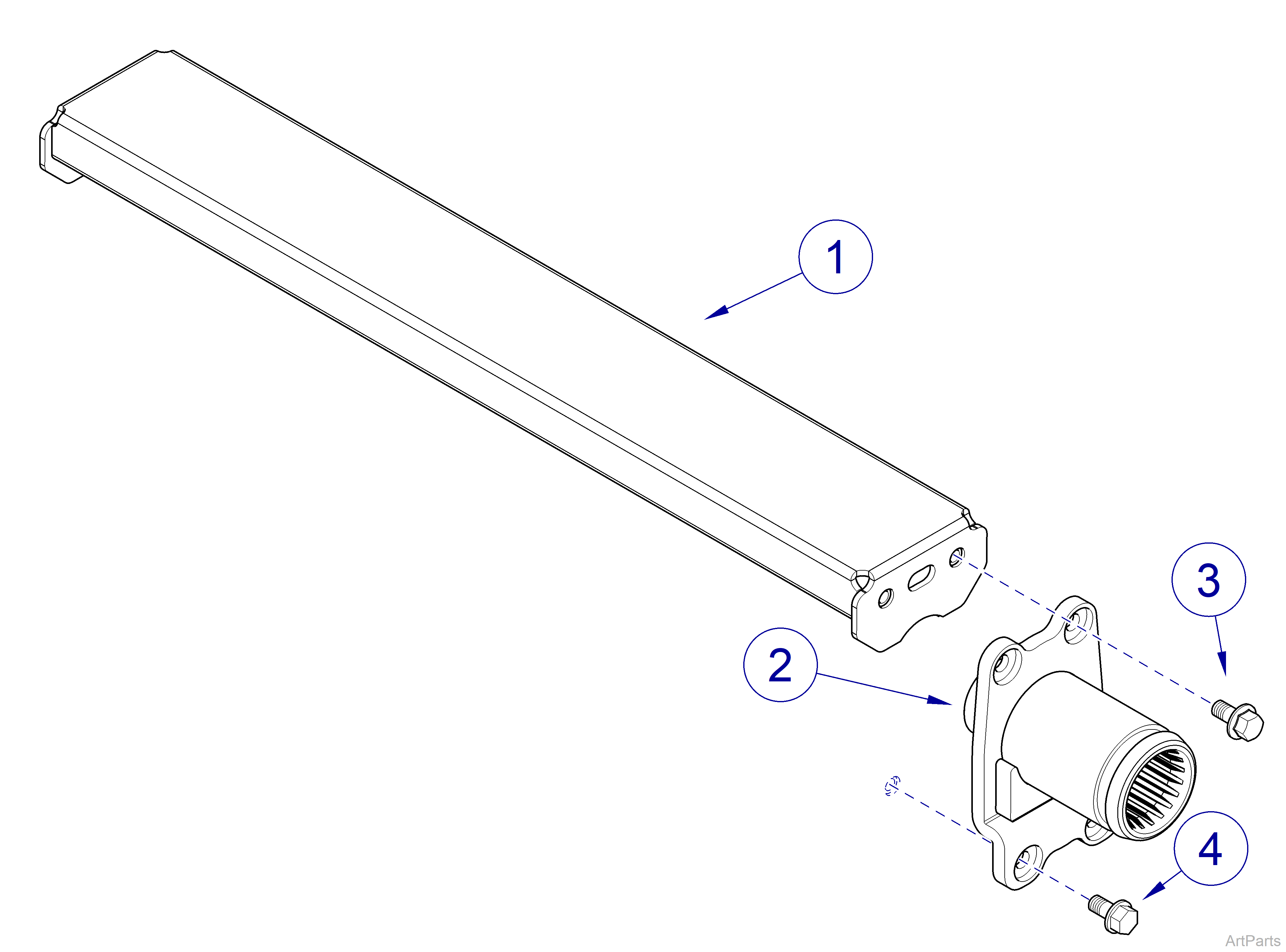

9A585 Patient Support Spline Receiver Assembly
|
Accessory Number |
9A585 |
| Serial Number | All |
| Used with Models | 625, 222 and 223 |
| 9A585 Spline Receiver Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
030-1451-50 | Weldment | 1 |
|
2 |
029-6036-00 | Spline Receiver Assembly | 2 |
|
3 |
040-0250-88 | Screw Locking | 4 |
|
4 |
040-0250-157 | Screw Thread-Forming | 4 |
|
5 |
9A585 | Spline Receiver Assembly - Includes items 1 - 4 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
