002-1369-00 Elevance / Procenter Interface PCB Kit
|
Accessory Number |
002-1369-00 |
| Serial Number | All |
| Used with Models | Elevance Chair and Wall/Cabinet Mtd Procenter |

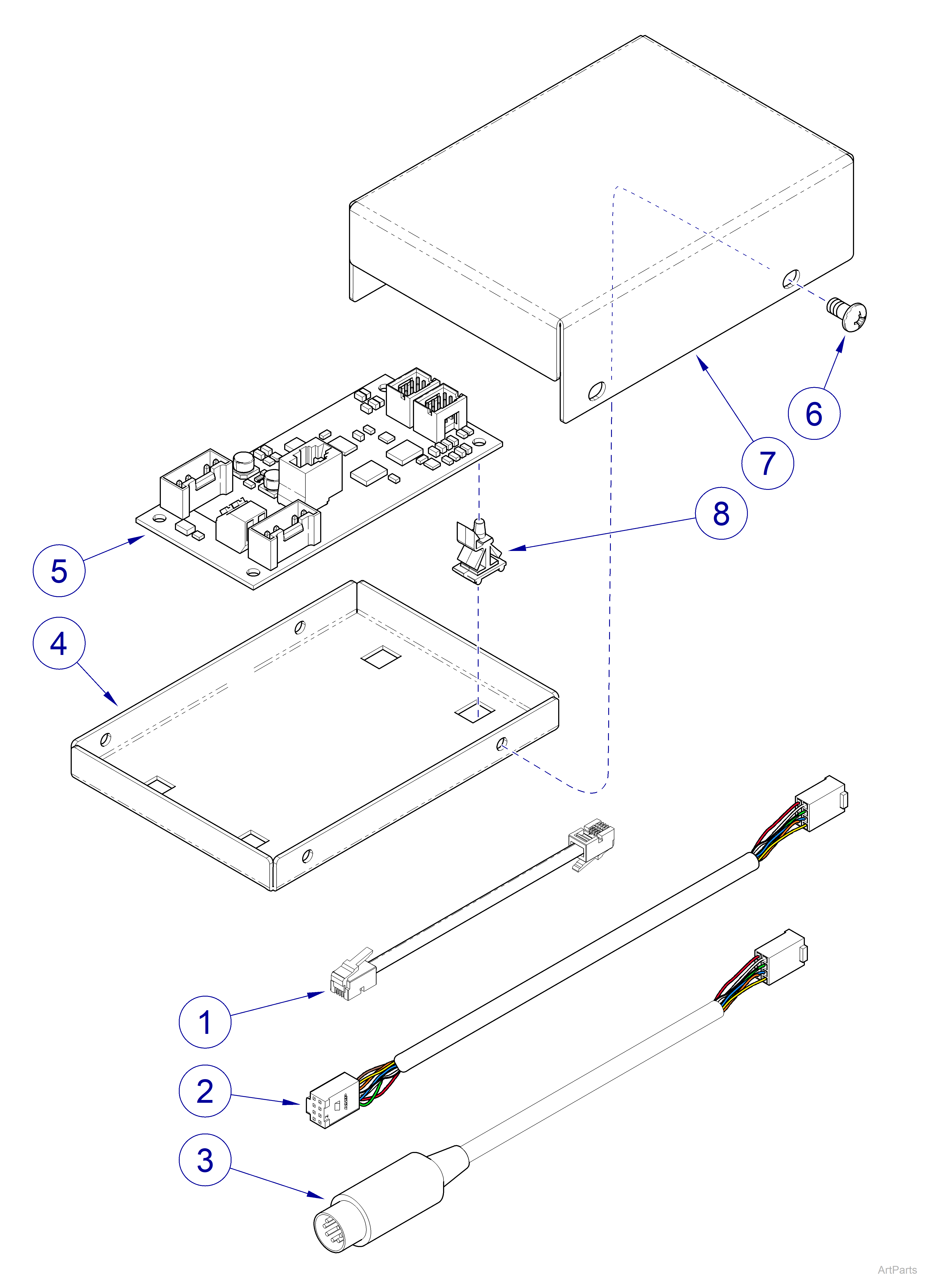

| 002-1369-00 Elevance / Procenter Interface PCB Kit | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
015-2149-04 | Straight Modular Harness | 1 |
|
2 |
015-2789-00 | Procenter Interface Delivery Control Harness | 1 |
|
3 |
015-2786-00 | Adapter Harness | 1 |
|
4 |
050-7933-00-216 | Junction Box Enclosure | 1 |
|
5 |
015-2490-00 | PCB Assembly, Procenter Interface | 1 |
|
6 |
040-0010-109 | #10-24 x 3/8” Pan Head Phillips Screws | 1 |
|
7 |
050-8110-00-216 | Interfaced PCB Box | 4 |
|
8 |
053-1664-00-000 | PC Board Standoffs | 1 |
|
9 |
003-2225-00 |
Installation Instructions - not shown | NSS |
|
10 |
24-inch Kem-Pac | 1 | |
|
11 |
5x7x7 inch Carton - not shown | 1 | |
|
12 |
002-1369-00 | Elevance / Procenter Interface PCB Kit - Includes items 1-11 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
