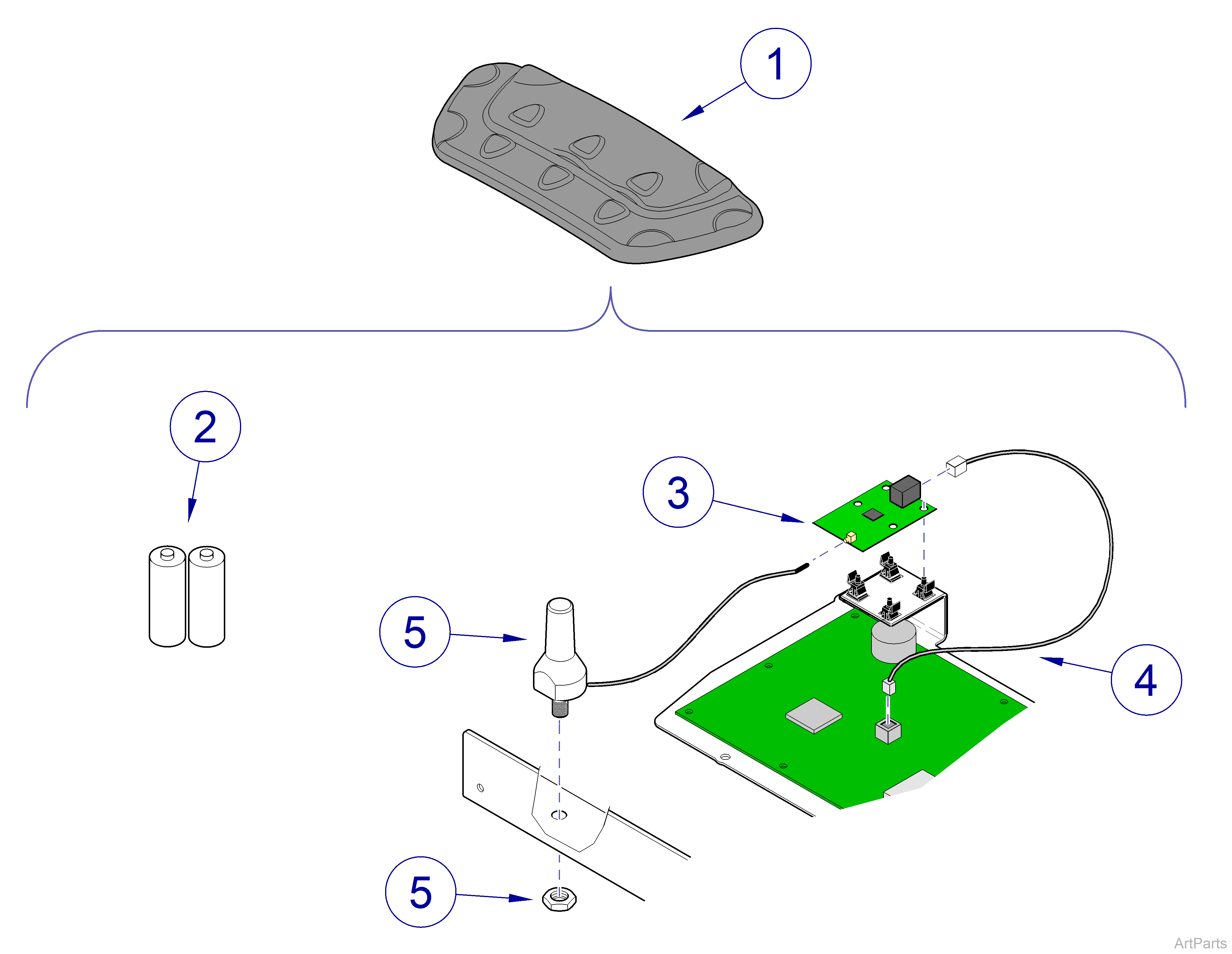

9A41800 Wireless Foot Control Accessory
Model Range 9A41800
|
Accessory Number |
9A41800 |
| Serial Number | All |
| Used with Models | 647 |
| 9A41800 Wireless Foot Control Accessory | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Wireless Foot Control Assembly Options - includes items 2 thru 6 | ||
| 9A418002 | Non-Programmable | 1 | |
| 9A418004 | Programable | 1 | |
|
2 |
015-2177-00 | Batteries size: AA | 2 |
|
3 |
Base Station PC Board | 1 | |
|
4 |
015-2149-00 | Modular Harness | 1 |
|
5 |
015-2131-00 | Antenna - Includes wiring and nut | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 002-1290-0x
|
Accessory Number |
002-1290-0x |
| Serial Number | All |
| Used with Models | 647 |
| Wireless Foot Control Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | Foot Control Assembly Options - includes items 2 thru 12 | ||
| 002-1290-06 | Non-Programmable | 1 | |
| 002-1290-05 | Programmable | 1 | |
| 2 | Keypad Options | ||
| 053-1902-01-312 | Non-Programmable | 1 | |
| 053-1902-00-312 | Programmable | 1 | |
| 3 | 015-2283-00 | Switch Membrane | 1 |
| 4 | 053-1905-00-312 | Retainer | 1 |
| 5 | 053-1904-00-312 | Base | 1 |
| 6 | 042-0075-01 | Tape | 2" |
| 7 | 015-2084-01 | PC Board / Battery Holder Assembly | 1 |
| 8 | 045-0001-93 | Nylon Washer #6 | 2 |
| 9 | 029-5046-00 | Battery Access Cover | 1 |
| 10 | 042-0168-00 | Screw | 12 |
| 11 | 050-7256-01-312 | Baseplate | 1 |
| 12 | 053-1439-00 | Stem Bumper | 7 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
