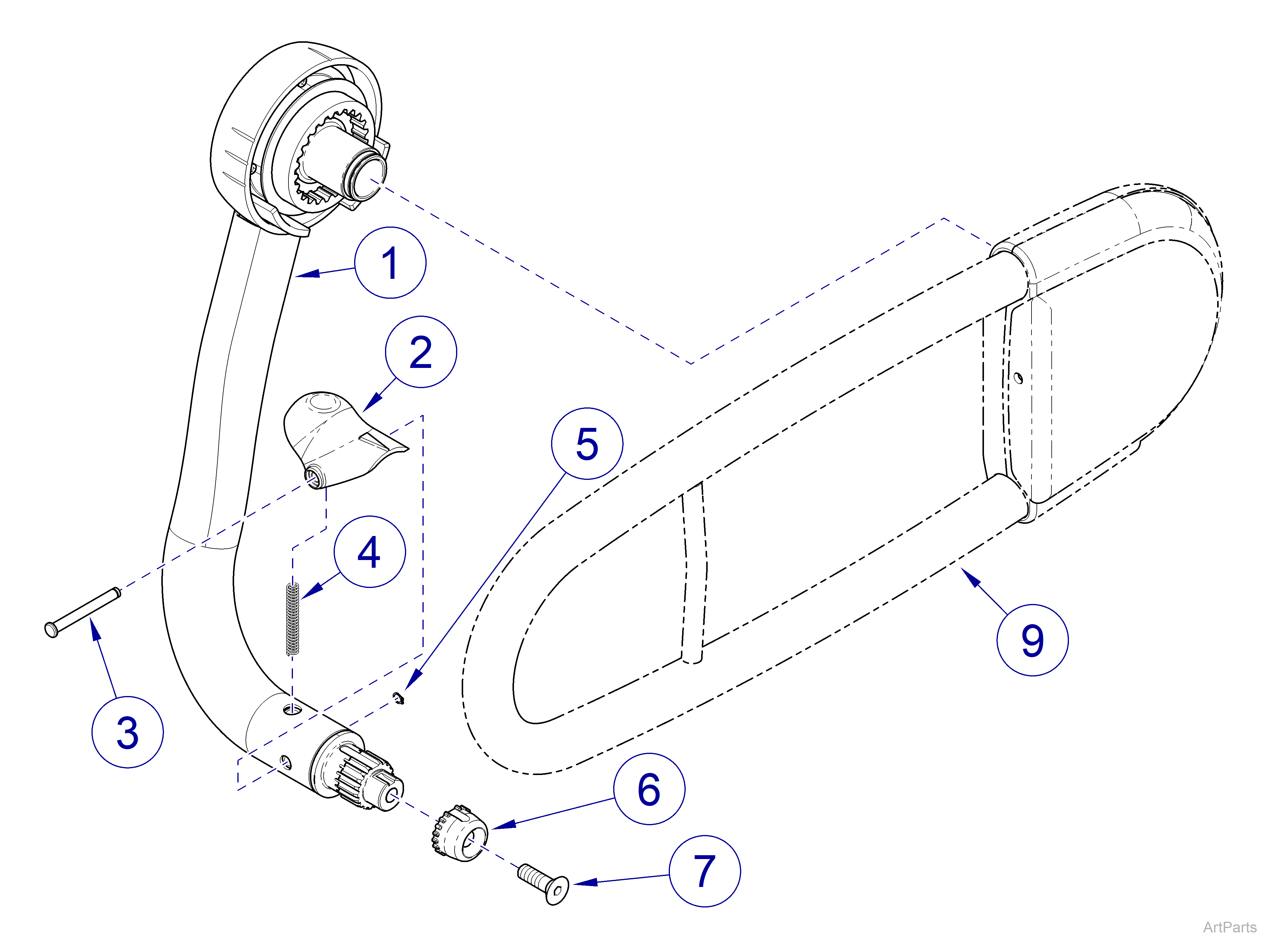

9A600001 Support Rail Assembly
Vertical Tube
|
Accessory Number |
9A600001 |
| Serial Number | All |
| Used with Models | 224, 225, 626, 627 and 631 |
| 9A600001 Support Rail Assembly Vertical Tube | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Vertical Tube Options | ||
| Patient RH - shown | NSS | ||
| LH - not shown | NSS | ||
|
2 |
053-2494-00-814 | Clip | 1 |
|
3 |
042-0606-08 | Clevis Pin | 1 |
|
4 |
025-0042-22 | Compression Spring | 1 |
|
5 |
042-0056-05 | Retaining Ring 1/4” | 1 |
|
6 |
020-0411-00 | Spud | 1 |
|
7 |
040-0375-45 | Screw 3/8” | 1 |
|
8 |
064-0015-00 | Lubricant - not shown | AR |
|
9 |
Refer to: | Back Covers | - |
|
10 |
9A600001 | Support Rail Assembly (LH/RH) Vertical Tube - Includes items 1 - 9 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

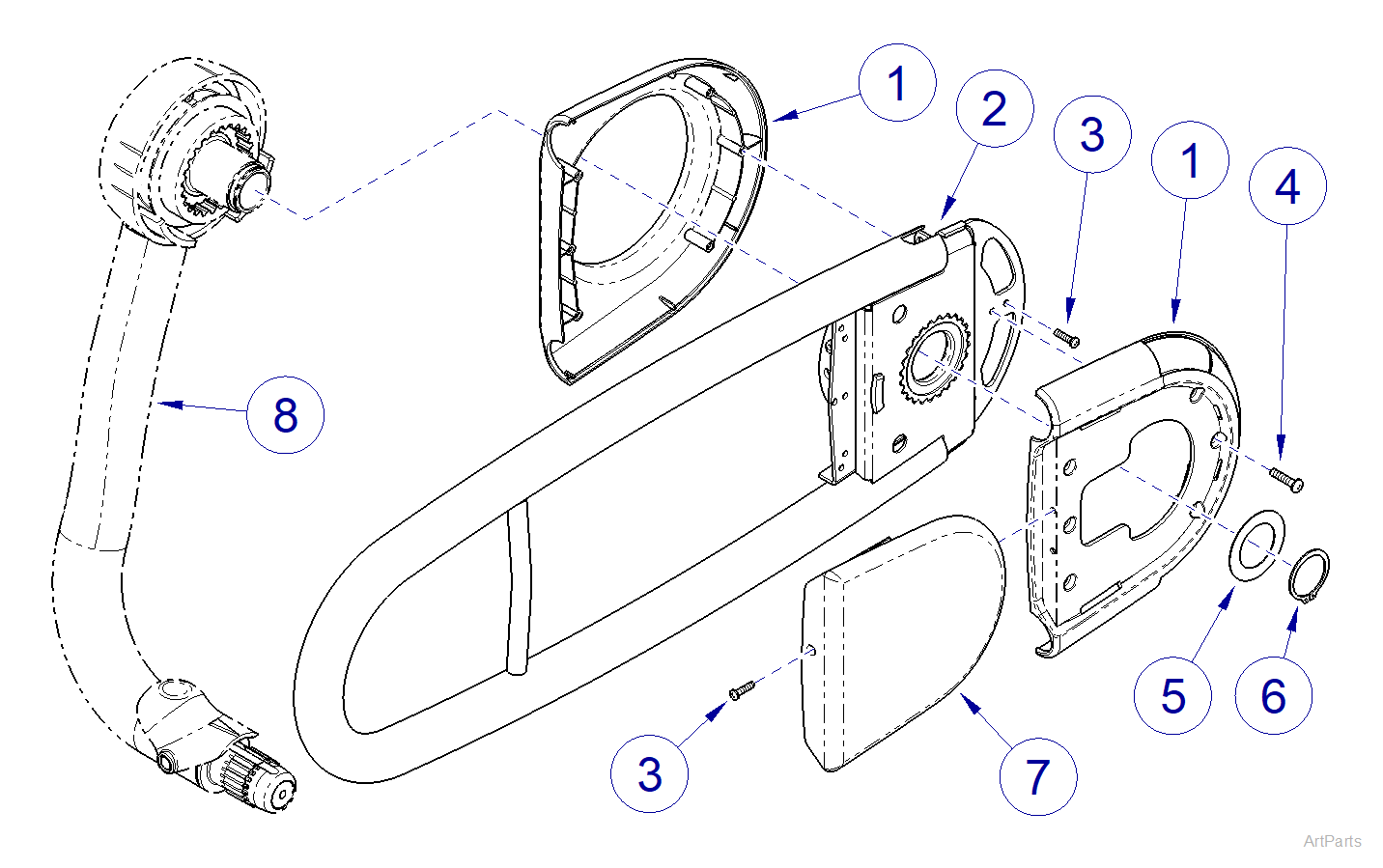

Back Covers
|
Accessory Number |
9A600001 |
| Serial Number | All |
| Used with Models | 224, 225, 626, 627 and 631 |
| 9A600001 Support Rail Assembly Back Covers | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-6572-00-813 | Cover Assembly | 1 |
|
2 |
Siderail | NSS | |
|
3 |
042-0184-00 | Screw #24 x 7/8” | 6 |
|
4 |
040-0010-164 | Screw M4 x 1.79” x 16M | 7 |
|
5 |
016-0195-04 | Thrust Washer | 1 |
|
6 |
042-0056-11 | Retaining Ring 1-1/4” | 1 |
|
7 |
028-0849-00 | Side Arm Pad | 7 |
|
8 |
Refer to: | Vertical Tube | - |
|
9 |
9A600001 | Support Rail Assembly Back Covers - Includes items 1 - 9 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
