VistaCool™ Thermal Reduction System 9A586

Accessory Number

 9A586001
Serial Number Prefixes RN, RP, RR, RS, RT, RV, RW, RX, RY, RZ, and V
Used with Models M3, M9, And M11

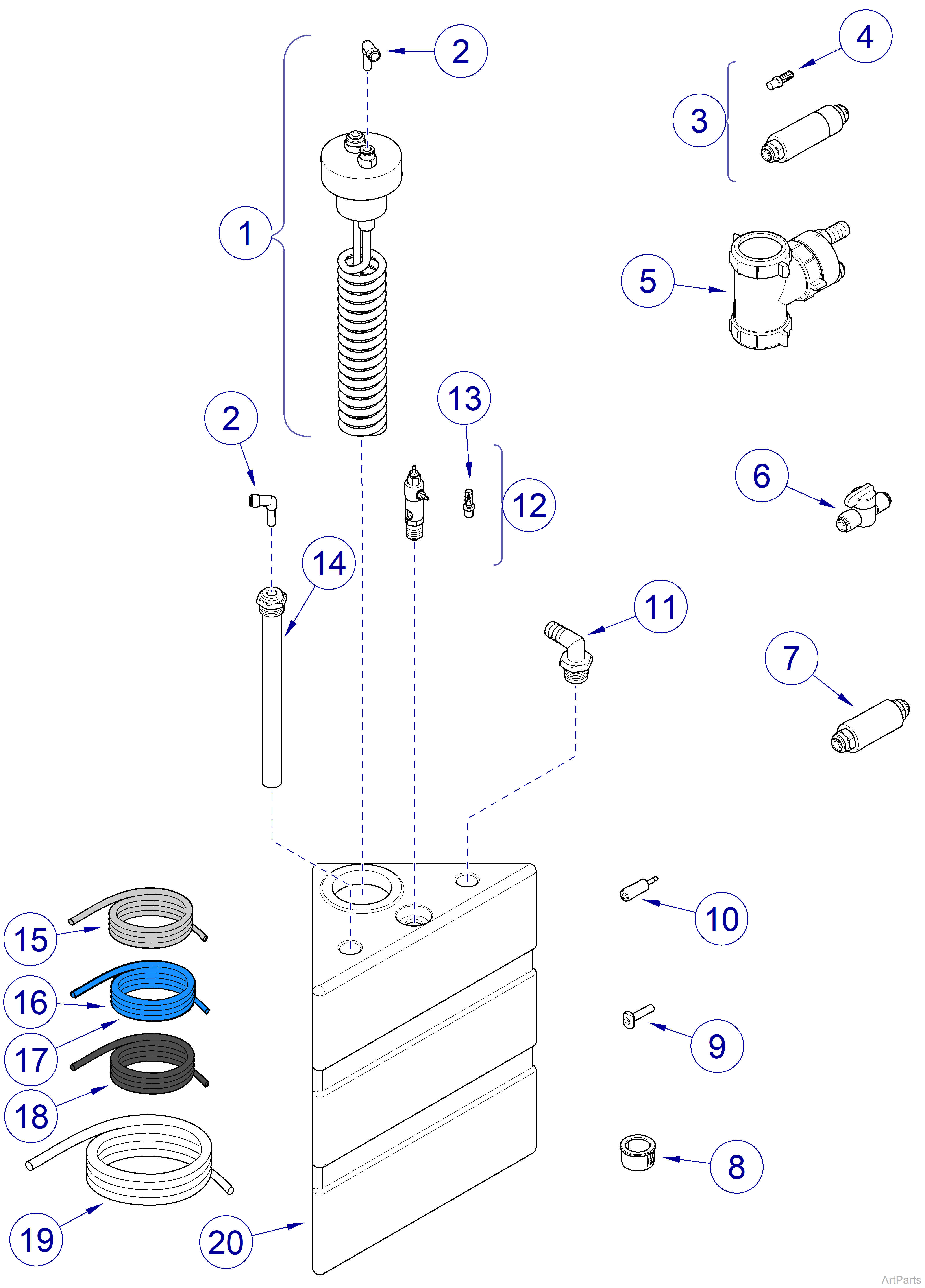

9A586001 Tank Direct - to - Drain Thermal Reduction System Single

9A586001 Single Tank Direct-to-Drain Thermal Reduction System
Item Part Number Description Qty

1

 014-0753-00 Manifold / Coil Assembly [VR# CVS7504] - includes item 2 1

2

 014-0754-00 Swivel Elbow [VR# CVS6112] 2

3

 014-0758-00 Inline Thermal Sensor [VR# S7508] - includes item 4 1

4

 014-0760-02 Thermal Reg. Wax Motor, 140° F [VR# CVS7515] - located inside the Inline Thermal Sensor 1

5

 014-0756-00 Drain Line Assembly [VR# CVS7506] 1

6

 014-0759-00 Water Supply Valve [VR# CVS6155] 1

7

 014-0752-00 Dual Check Backflow Preventer [VR# CVVC250-A] 1

8

 053-0068-11 Cabinet Grommet [VR# S7539] 4

9

 014-0757-00 Plug - 1/4” Stem [VR# CVS6130] 1

10

 015-3438-00 Mono Plug [VR# CVS7570] 1

11

 014-0762-00 Hose Barb Elbow [VR# CVS7532] 1

12

 014-0755-00 Thermal Reg. Valve[VR# CVS7501] - includes item 13 1

13

 014-0760-01 Thermal Reg. Wax Motor, 80° F [VR# CVS7514] - located inside the Thermal Regulator Valve 1

14

 014-0761-00 Male Adapter [VR# S7531] 1

15

 053-2608-01 High Temp Tubing - Natural 1/4” OD x 9 ft [VR# CVTU748] 1

16

 053-2609-01 Coolant Water Tubing - Blue 1/4” OD x 6 ft [VR# TU751] 1

17

 053-2609-02 Coolant Water Tubing - Blue 1/4” OD x 7 in [VR# TU962] 1

18

 053-2610-00 Condensate Tubing - Black 1/4” OD x 6 ft [VR# TU753] 1

19

 053-2611-00 Drain Tubing - Clear 1/2” ID x 6 ft [VR# CVTU755] 1

20

053-2605-00

 Tank Single [VR# S7511] NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 9A586002
Serial Number Prefixes RN, RP, RR, RS, RT, RV, RW, RX, RY, RZ, and V
Used with Models M3, M9, And M11

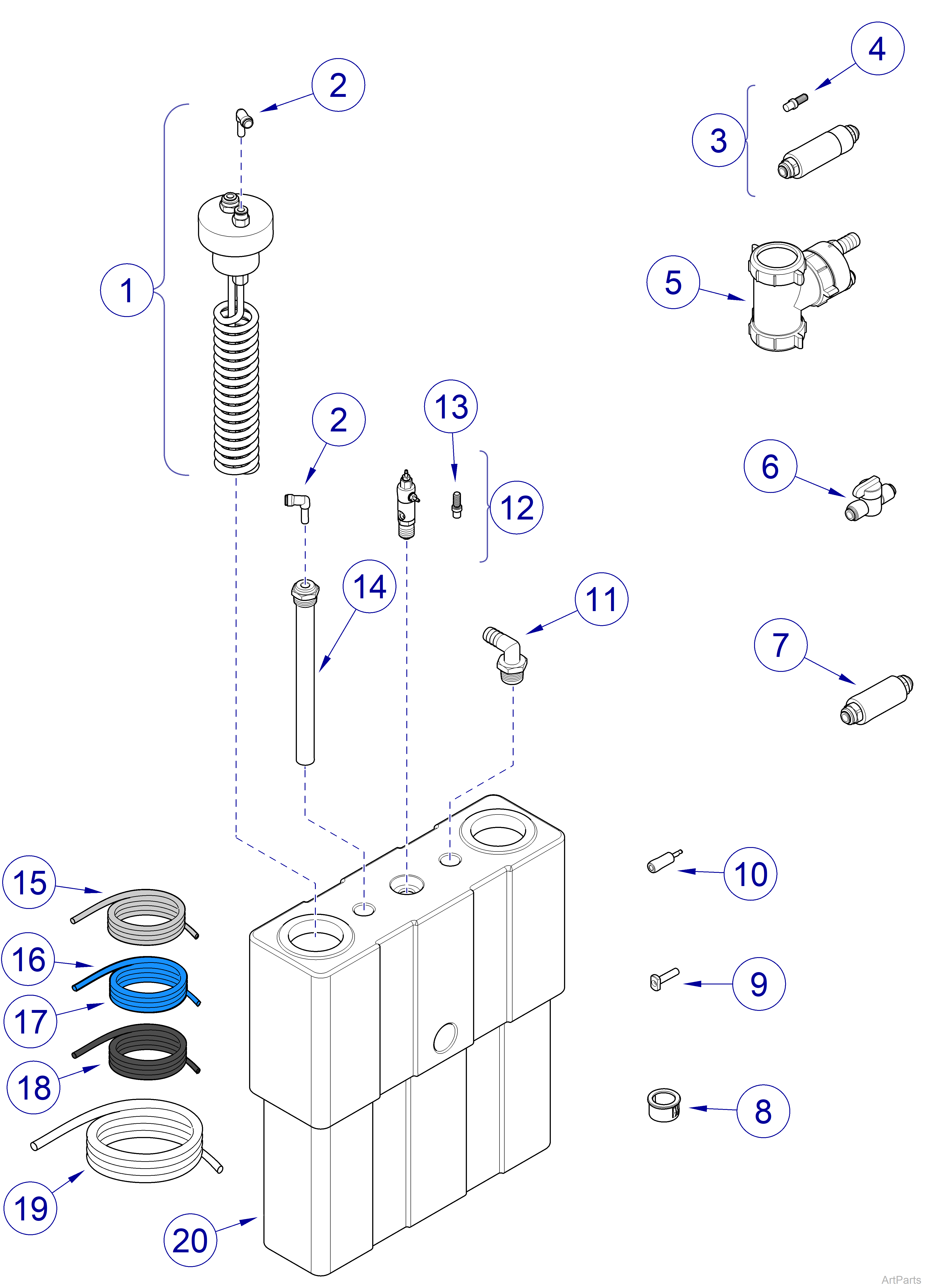

9A586002 Tank Direct - to - Drain Thermal Reduction System Dual

9A586002 Dual Tank Direct-to-Drain Thermal Reduction System
Item Part Number Description Qty

1

 014-0753-00 Manifold / Coil Assembly [VR# CVS7504] - includes item 2 2

2

 014-0754-00

Swivel Elbow

[VR# CVS6112]

 3

3

 014-0758-00 Inline Thermal Sensor [VR# S7508] - includes item 4 2

4

 014-0760-02 Thermal Reg. Wax Motor, 140° F [VR# CVS7515] - located inside the Inline Thermal Sensor 2

5

 014-0756-00 Drain Line Assembly [VR# CVS7506] 1

6

 014-0759-00 Water Supply Valve [VR# CVS6155] 1

7

 014-0752-00 Dual Check Backflow Preventer [VR# CVVC250-A] 1

8

 053-0068-11 Cabinet Grommet [VR# S7539] 8

9

 014-0757-00 Plug - 1/4” Stem [VR# CVS6130] 1

10

 015-3438-00 Mono Plug [VR# CVS7550] 2

11

 014-0762-00 Hose Barb Elbow [VR# CVS7532] 1

12

 014-0755-00 Thermal Reg. Valve[VR# CVS7501] - includes item 13 1

13

 014-0760-01 Thermal Reg. Wax Motor, 80° F [VR# CVS7514] - located inside the Thermal Regulator Valve 1

14

 014-0761-00 Male Adapter [VR# S7531] 1

15

 053-2608-02 High Temp Tubing - Natural 1/4” OD x 9 ft [VR# CVTU749] 1

16

 053-2609-01 Coolant Water Tubing - Blue 1/4” OD x 6 ft [VR# TU751] 1

17

 053-2609-02 Coolant Water Tubing - Blue 1/4” OD x 7 in [VR# TU962] 1

18

 053-2610-00 Condensate Tubing - Black 1/4” OD x 6 ft [VR# TU753] 1

19

 053-2611-00 Drain Tubing - Clear 1/2” ID x 6 ft [VR# CVTU755] 2

20

053-2606-00

 Tank Single [VR# S7511] NSS

21

 9A586003 M9/M11 Adapter Kit - Not Shown [VR# S7560] 2

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 9A586005
Serial Number Prefixes RN, RP, RR, RS, RT, RV, RW, RX, RY, RZ, and V
Used with Models M3, M9, And M11

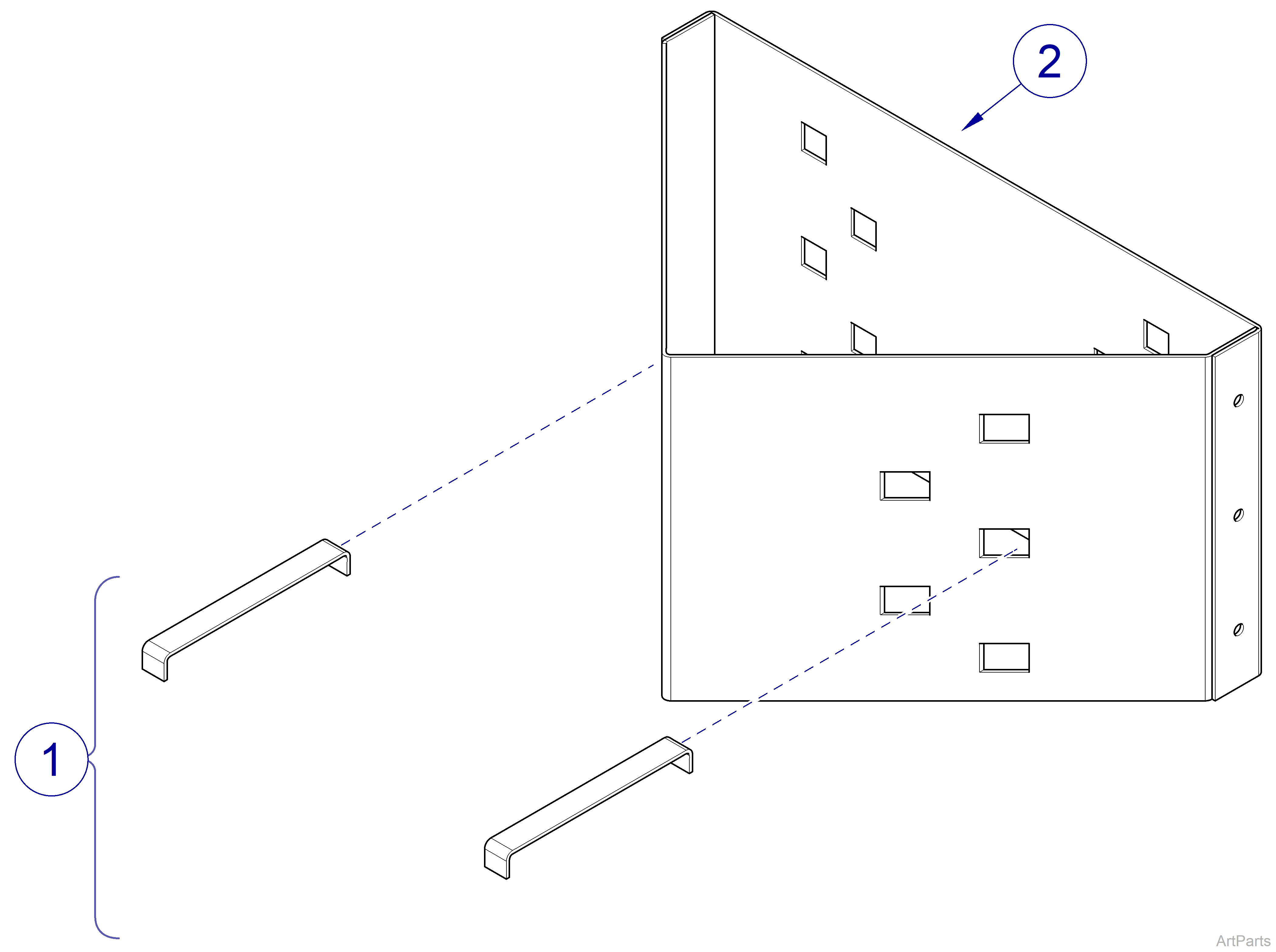

9A586005 Adjustable Tank Stand Single

9A586005 Single Adjustable Tank Stand Kit
Item Part Number Description Qty

1

 002-1969-00 Adjustable Straps - includes 2 straps [VR# S7548] 1

2

   Tank Stand NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 9A586006
Serial Number Prefixes RN, RP, RR, RS, RT, RV, RW, RX, RY, RZ, and V
Used with Models M3, M9, And M11

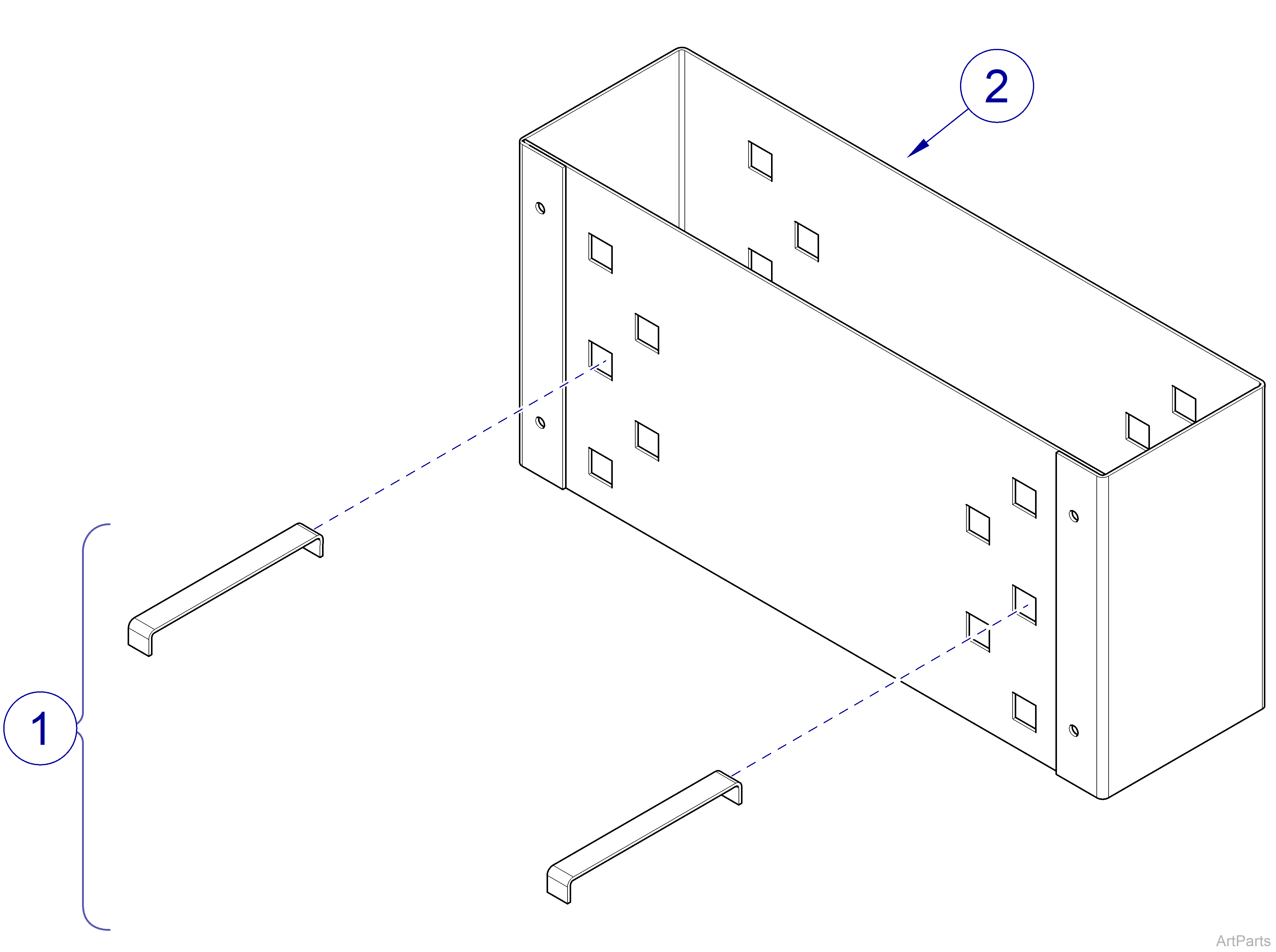

9A586006 Adjustable Tank Stand Dual

9A586006 Dual Adjustable Tank Stand Kit
Item Part Number Description Qty

1

 002-1969-00 Adjustable Straps - includes 2 straps [VR# S7548] 1

2

   Tank Stand

NSS

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Accessory Number

 9A586004
Serial Number Prefixes RN, RP, RR, RS, RT, RV, RW, RX, RY, RZ, and V
Used with Models

M3, M9-02x thru M9-04x, M11-02x thru M11-04x

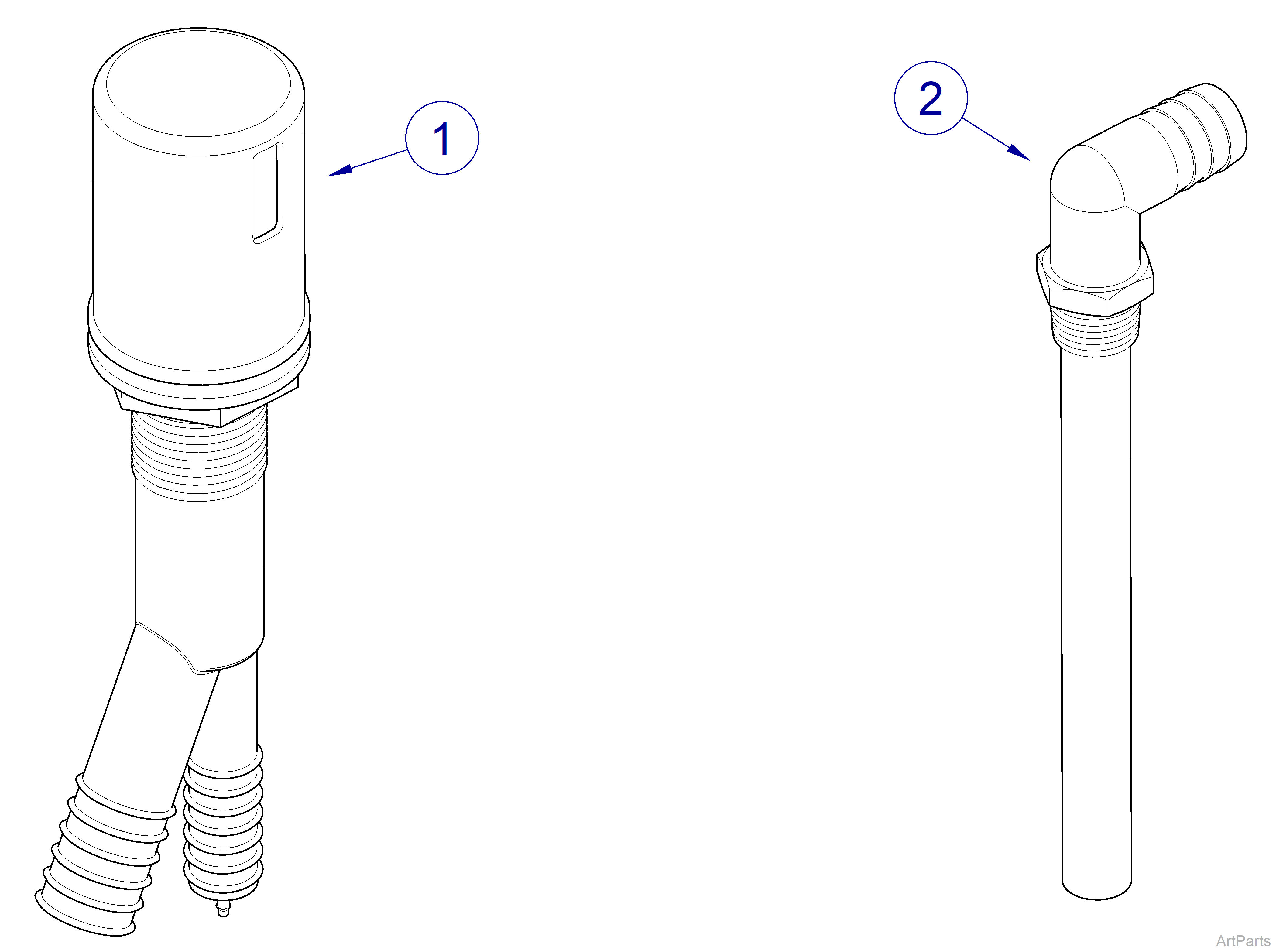

9A586004 Air Gap Kit

9A586004 Air Gap Kit
Item Part Number Description Qty

1

 014-0763-00 Air Gap Assembly [VR# S7552] 1

2

 014-0764-00 Water Inlet Assembly [VR# S7554] 1

3

 053-2609-00 Coolant Water Tubing - Blue 1/4” OD x 3 ft - Not Shown [VR# TU750] 1

4

 053-2612-00 Overflow Tubing - Clear 3/4” ID x 3 ft - Not Shown [VR# TU757] 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
