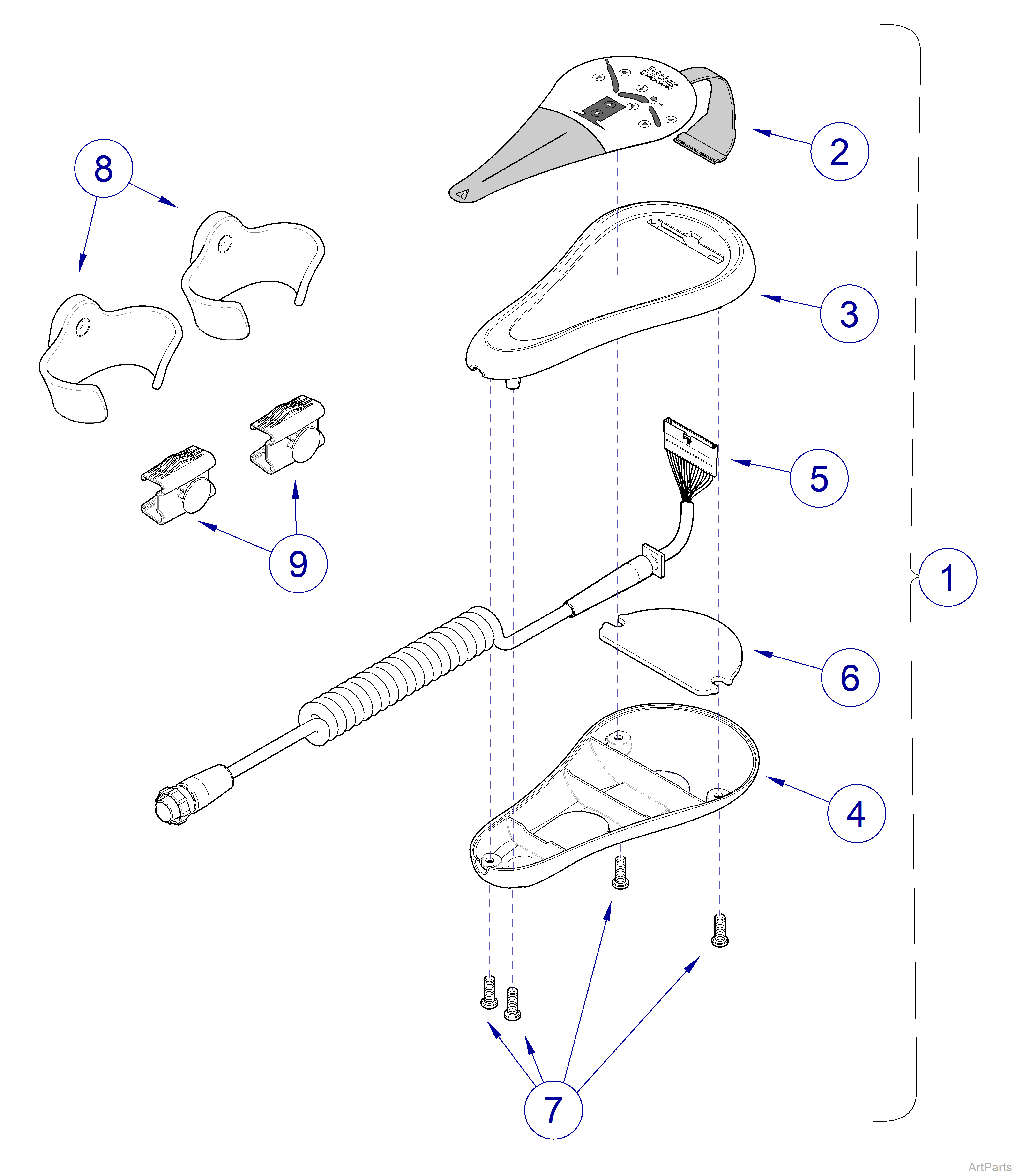

9A348001 Ritter 4 Function Hand Control
|
Accessory Number |
9A348001 |
| Serial Number | All |
| Used with Models | Ritter Modular Cabinetry |
| Ritter 4 Function Hand Control | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A348001 | Hand Control Assembly - Includes items 2 thru 8 | 1 |
|
2 |
015-1866-00 |
Touch Pad - New Logo Touch Pad - Old Logo |
1 NLA |
|
3 |
053-1381-00 | Top Housing | 1 |
|
4 |
053-1382-00 | Bottom Housing | 1 |
|
5 |
015-1675-00 | Retractable Cord Assembly | 1 |
|
6 |
050-5868-00 | Hand Control Weight | 1 |
|
7 |
042-0168-00 | Screw 3.5 x 10 | 4 |
|
8 |
002-1474-00 | Hand Control Holsters Kit - Includes Item 9 | 1 |
|
9 |
053-2268-00-312 | Side Rail Hand Control Bracket | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
