153657 Assistant’s Tray
|
Accessory Number |
153657 |
| Serial Number | All |
| Used with Models | Procenter Assistants Unit |

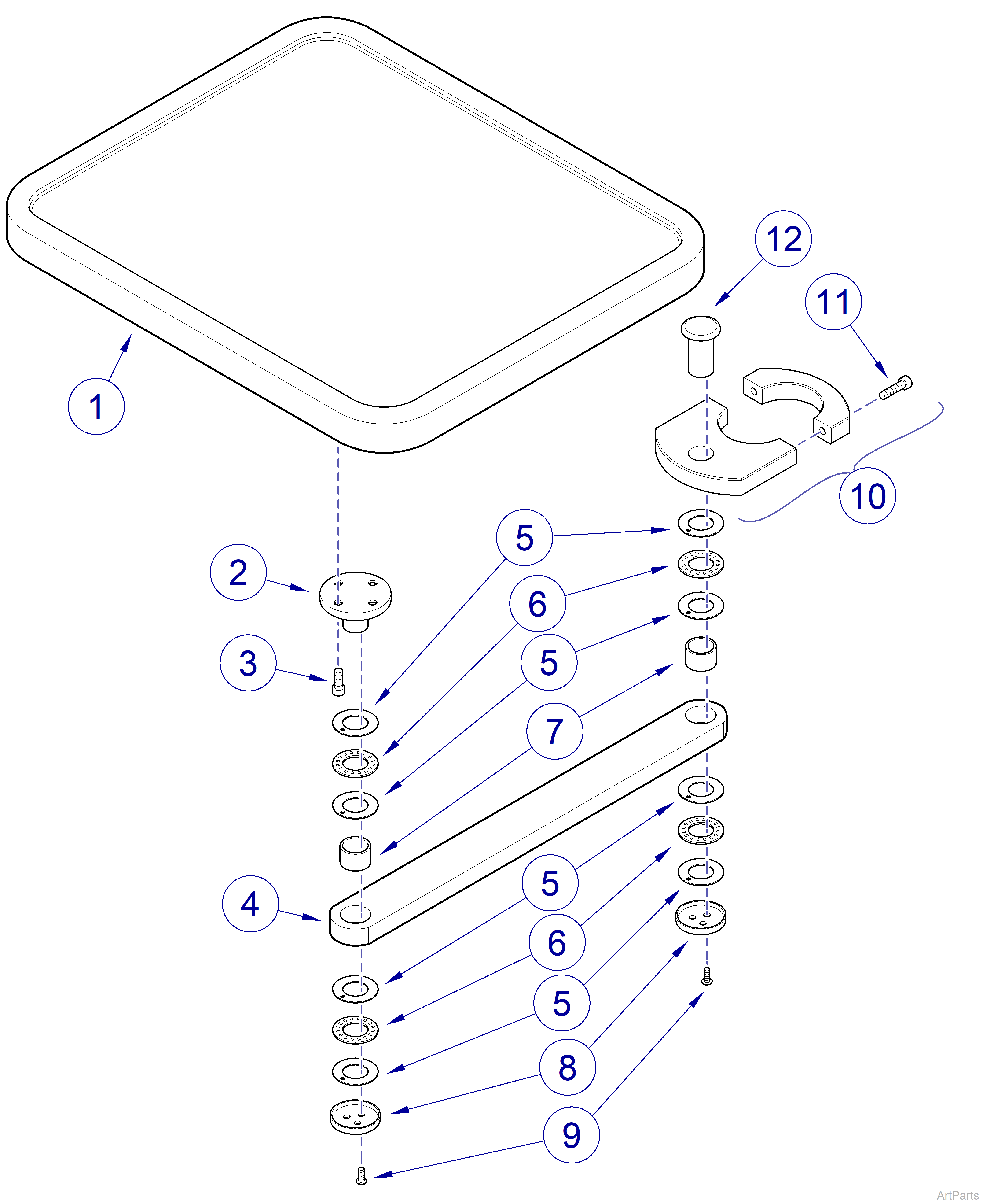

| 153657 Assistant’s Tray | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
063-9958-00 | Assistant’s Tray Top | 1 |
|
2 |
057-0666-00 | Tray Arm Pin | 1 |
|
3 |
122445 | Screw | 4 |
|
4 |
121079-50 | Instrument Tray Arm | 1 |
|
5 |
119458 | Thrust Washer | 8 |
|
6 |
119462 | Needle Bearing | 4 |
|
7 |
120579 | Tray Arm Bearing | 2 |
|
8 |
120580-50 | Tray Arm Bearing Cap | 2 |
|
9 |
121698-5 | Screw | 6 |
|
10 |
Assistant’s Tray Clamp Options | ||
| 051-0959-50 | Assistant’s Tray Clamp - 1 3/4” | 1 | |
| 051-0959-51 | Assistant’s Tray Clamp - 2” | 1 | |
| 051-1226-00-21 | Assistant’s Tray Clamp - 2 1/4” - Includes item 11 | 1 | |
|
11 |
040-0010-132 | Screw | 2 |
|
12 |
120962 | Pivot Pin | 1 |
| 13 | Assistant's Tray Kit Options - Includes Items 1 thru 12 | ||
|
153657 |
1 3/4" Clamp - Factory Installed | NSS | |
| 153657-001 | 1 3/4" Clamp - Field Installed | Ref | |
|
153657-002 |
2" Clamp - Factory Installed | NSS | |
| 153657-003 | 2" Clamp - Field Installed | Ref | |
|
153657-004 |
2 1/4" Clamp - Factory Installed | NSS | |
| 153657-005 | 2 1/4" Clamp - Field Installed | Ref | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
