Midmark® Monitor Mount Wall Mount Assembly
|
Accessory Number |
9A465008 | 9A465012 |
| Serial Number | All | All |
| Used with Models | 8013 |
8014, 8015, 8019 and 8020 |

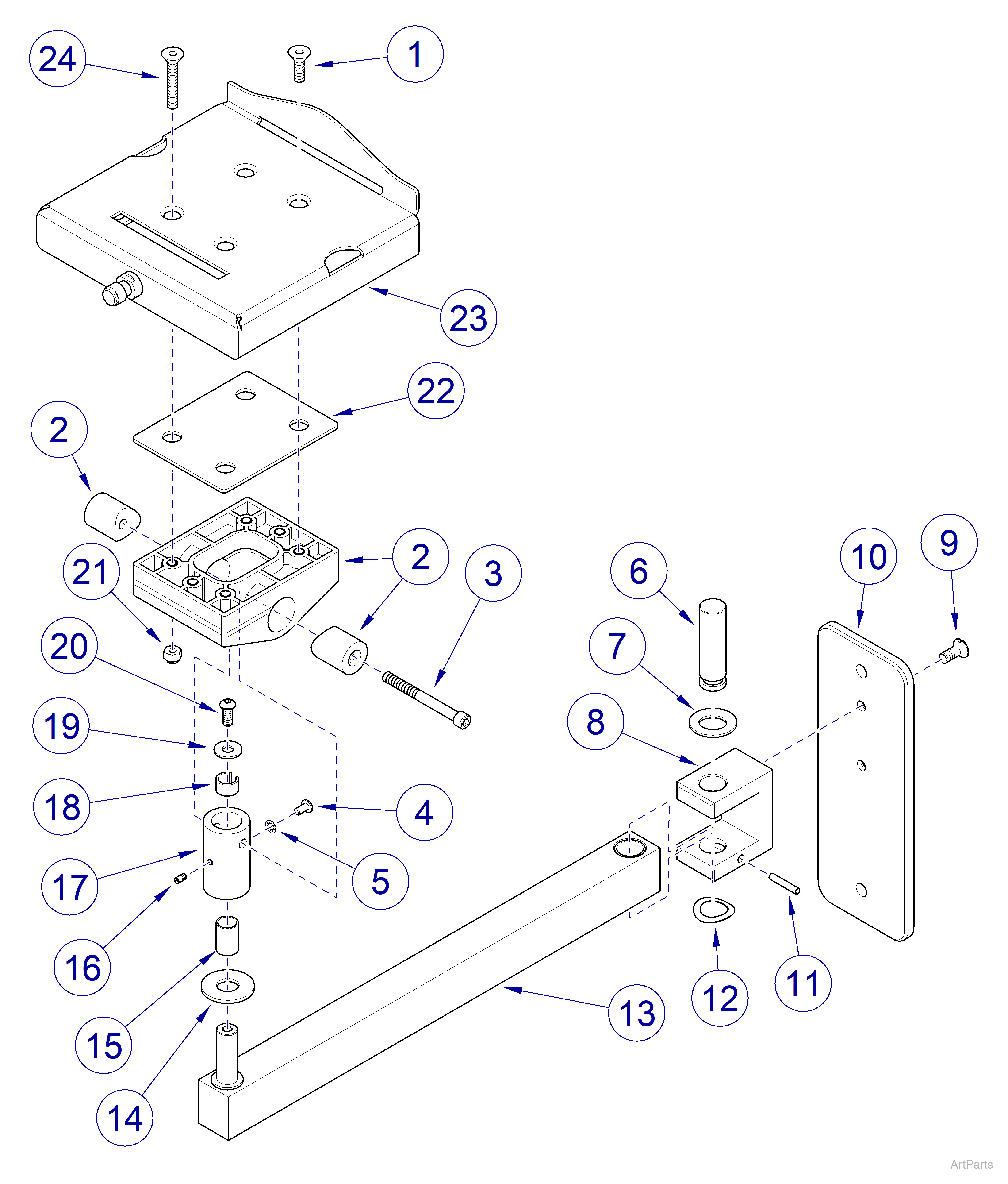

| Midmark Monitor Mount Wall Mount Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0250-17 | Screw 1/4-20 x 1 1/4 Hex Socket Flat Head | 2 |
|
2 |
002-1797-00 | Tilt Block Assembly Kit - Includes Item 3 | 1 |
| Threaded Tilt Block Pivot Pin |
NSS |
||
| Tilt Block Pivot Pin |
NSS |
||
|
3 |
002-1798-00 | Tilt Block Screw Kit: 1/4-20 x 2 1/2 | 1 |
|
4 |
040-0010-47 | Screw 0.190-24 THD x 3/8” | 1 |
|
5 |
045-0001-35 | Lock Washer 0.190 INT BO | 1 |
|
6 |
10148400 | Hinge Pin | 1 |
|
7 |
61602800 | Nylon Flat Washer | 1 |
|
8 |
20105700 | Hinge Bracket | 1 |
|
9 |
62500313 | Screw 0.250 x 0.625" | 2 |
|
10 |
30111400 | Back Plate | 1 |
|
11 |
62908404 | Roll Pin 0.156 x 0.875" | 1 |
|
12 |
62919402 | Spring Curved Washer 5/8” | 1 |
|
13 |
029-5818-00 | Swing Arm Assembly | 1 |
|
14 |
045-0001-159 | Nylon 6/6 Washer 1/2”0.530 ID x 1.25 OD x 0.09 | 1 |
|
15 |
016-0076-07 | DU Bearing 0.500 ID x 0.594 OD x 0.875" Long | 1 |
|
16 |
040-0008-47 | Set Screw 0.164-32 X 0.312 HEX | 1 |
|
17 |
052-0808-00-312 | Swivel / Tilt Coupler | 1 |
|
18 |
016-1583-00 | Slotted Bearing | 1 |
|
19 |
65952700 | Washer Flat 1/4” | 1 |
|
20 |
040-0250-79 | Screw 1/4-20 x 5/8 Hex Socket | 1 |
|
21 |
041-0250-01 | Nut NyLock Hex 1/4-20 CD, ZN | 4 |
|
22 |
050-8312-00 | Spacer Plate | 1 |
|
23 |
029-5390-01 | Receiver Plate | 1 |
|
24 |
040-0250-97 | Screw Hex Socket Flat Head 1/4-20 | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
