9A26700x Instrument Tray
|
Accessory Number |
9A26700x |
| Serial Number | All |
| Used with Models | 230, 630, 631, 641, 646 and 647 |
Chair must have base rail installed to mount this accessory.

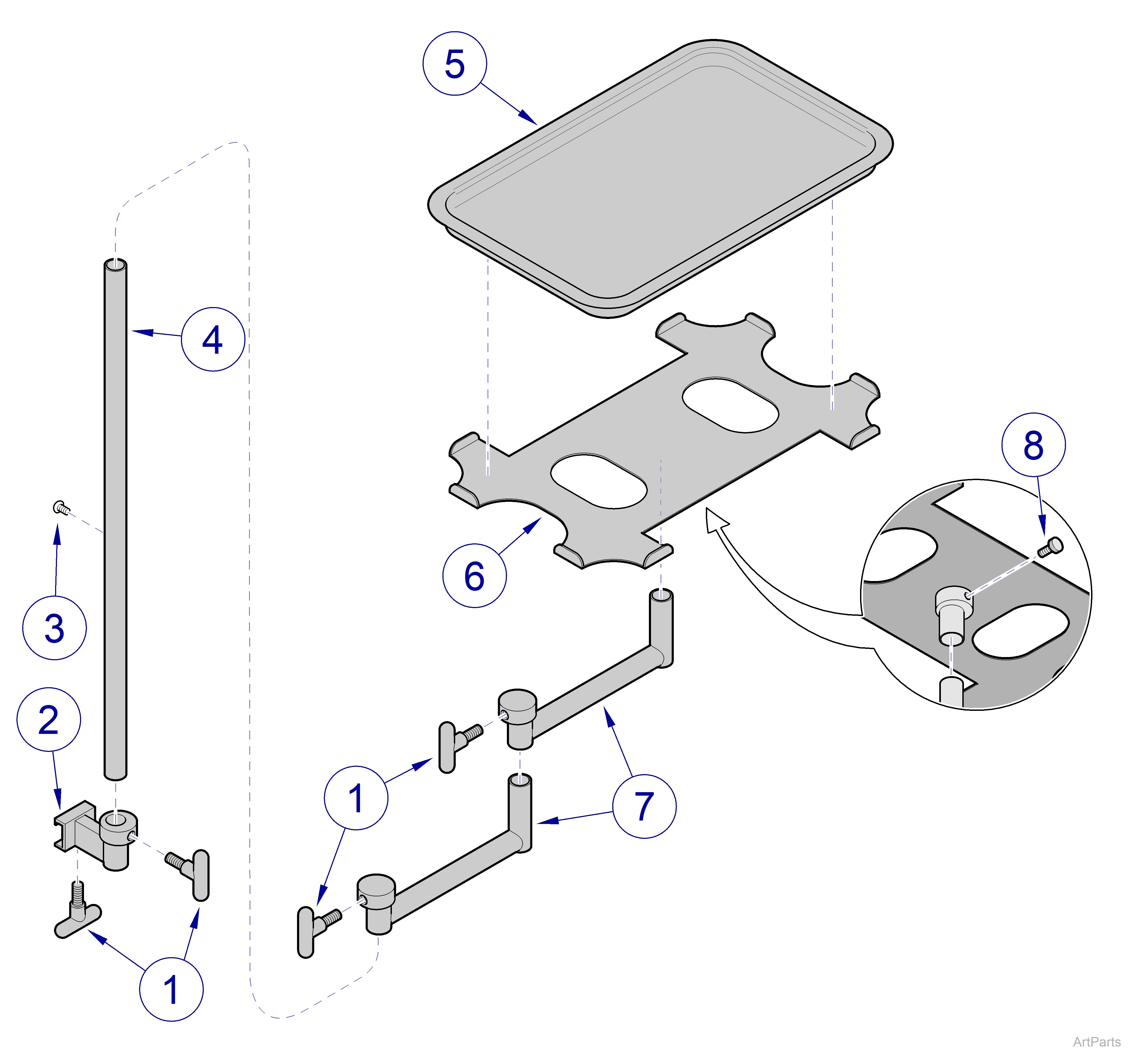

| 9A26700x Instrument Tray | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
520-0055-10 | Handle | 4 / 3 |
|
2 |
030-1214-00 | Rail Mount Weldment | 1 |
|
3 |
505-703615 | Screw | 1 |
|
4 |
Rod Options | ||
|
052-0338-00 |
for 9A267001 and 9A267002 Tray Options | NLA | |
| 052-0338-02 |
for 9A267003 and 9A267004 Tray Options |
1 | |
|
5 |
016-0289-00 | Instrument Tray | 1 |
|
6 |
030-1216-10 |
Tray Mount Weldment | NSS |
|
7 |
030-1215-00 | Arm Extension Weldment | 1 |
|
8 |
516-0258-00 | Thumbscrew | 1 |
|
9 |
Instrument Tray Options | ||
|
9A267001 |
Double Arm Instrument Tray - Includes items 1 thru 8 | NLA | |
|
9A267002 |
Single Arm Instrument Tray - Includes items 1 thru 8 | NLA | |
| 9A267003 | Double Arm Instrument Tray - Includes items 1 thru 8 | 1 | |
|
9A267004 |
Single Arm Instrument Tray - Includes items 1 thru 8 | NLA | |
|
9A268001 |
Instrument Tray - Includes item 5 | NLA | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
