9A562 thru 9A625 Spline Mount Assembly for 630 Chair and 631 Chair
|
Accessory Number |
9A562 thru 9A625 |
| Serial Number | All |
| Used with Models | 253, 630 and 631 |

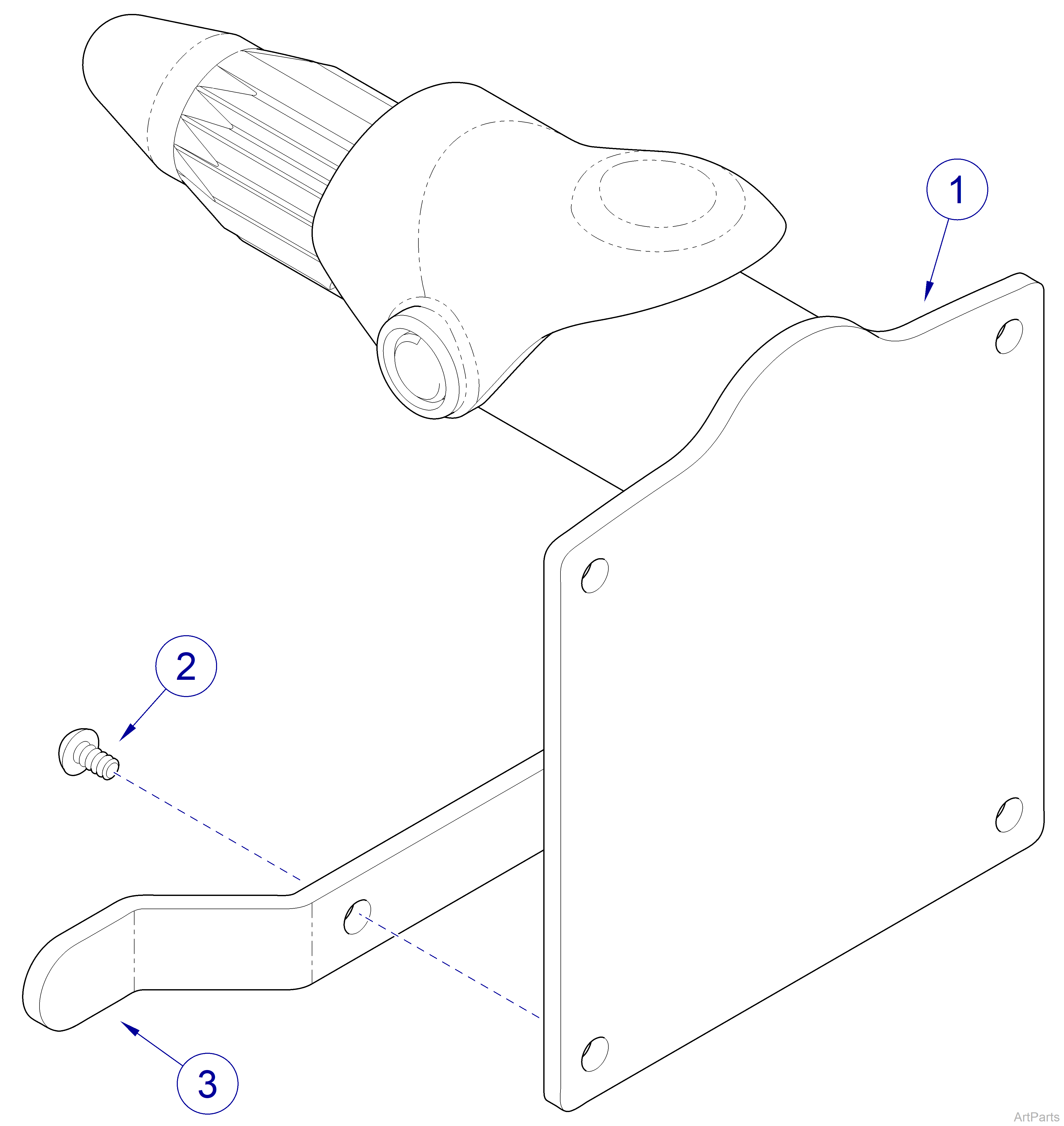

| 9A562 thru 9A625 Spline Mount Assembly for 630 Chair and 631 Chair | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Spline Assembly Kit Options - Includes Items 1 thru 3 | ||
| 029-5162-00 | 9A562 Spline Assembly | 1 | |
| 029-5162-01 | 9A563 Spline Assembly | 1 | |
| 029-5162-00-813 | 9A624 Spline Assembly | 1 | |
| 029-5162-01-813 | 9A625 Spline Assembly | 1 | |
|
2 |
042-0112-08 | Screw M4 x 12mm | 4 |
|
3 |
Cord Restraint Options | ||
| 050-7979-00-312 | 9A562 / 9A563 Cord Restraint | 1 | |
| 050-7979-00-813 | 9A624 / 9A625 Cord Restraint | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
