153698-00x Ultra Chair and Knight Chair LR Lower Monitor Mount Arm

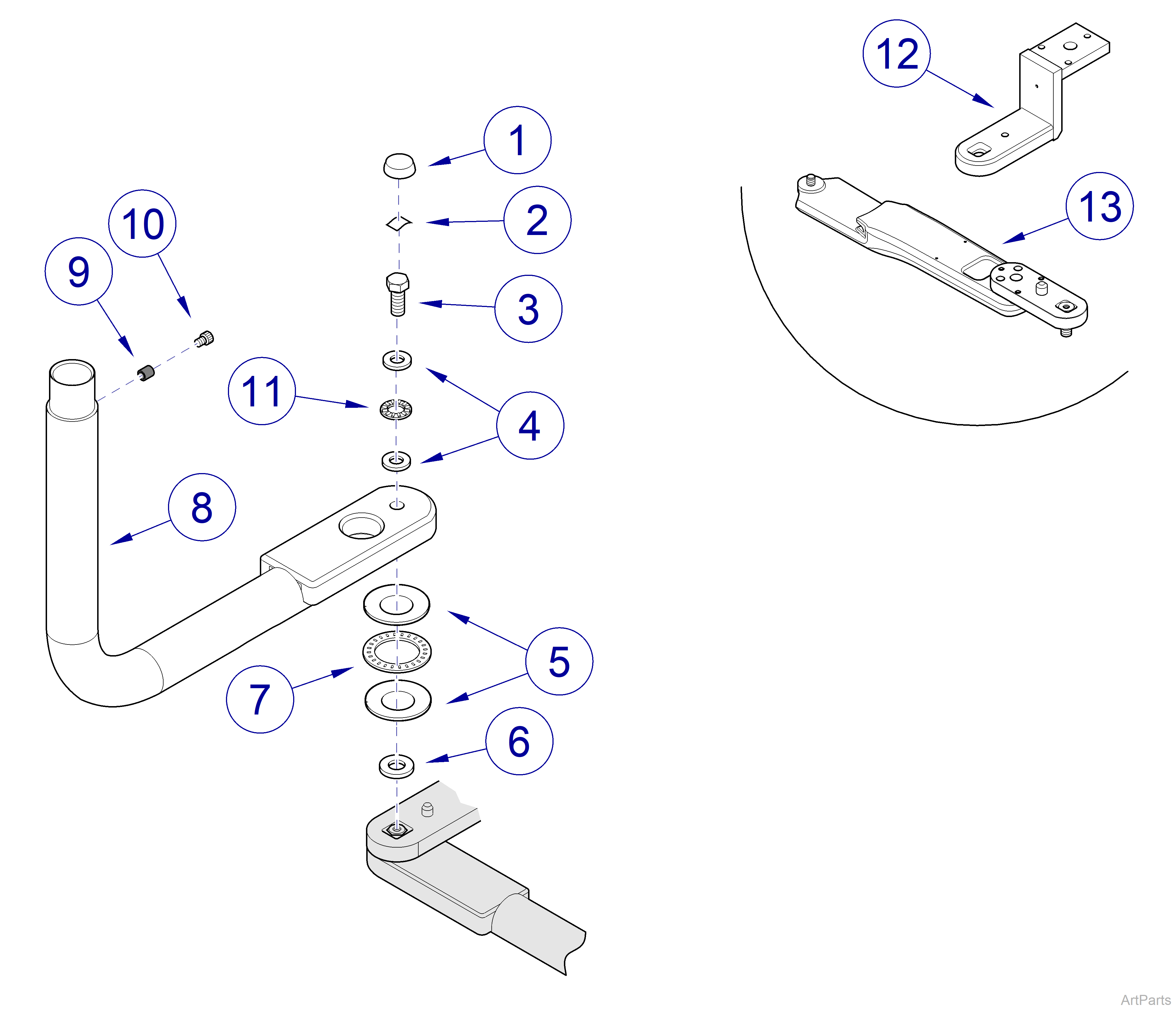

Date Range: models built before 3/22/2003
|
Accessory Number |
153698-001 |
153698-002 |
| Serial Number | All | All |
| Used with Models | Ultra LR Chairs | Knight LR Chairs |
| 153698-00x LR Lower Monitor Mount Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
122595-01 |
Bolt Cover | NLA |
|
2 |
275184 | Double-sided Tape | AR |
|
3 |
040-0500-29 | Bolt | 1 |
|
4 |
120712 | Small Thrust Washer | 2 |
|
5 |
016-0300-03 | Large Thrust Washer | 2 |
|
6 |
050-5259-01 | Bearing Spacer - for Ultra chairs only | 1 |
|
7 |
016-0196-04 | Thrust Bearing | 1 |
|
8 |
030-1467-50 | Lower Arm | 1 |
|
9 |
053-0404-07 | Screw Cover | 1 |
|
10 |
040-0010-129 | Screw #10-24 x 3/8” | 1 |
|
11 |
110207 | Thrust Bearing | 1 |
|
12 |
029-3002-00 | Knight Chair Bracket | 1 |
|
13 |
029-2696-00 | Ultra Chair Bracket | 1 |

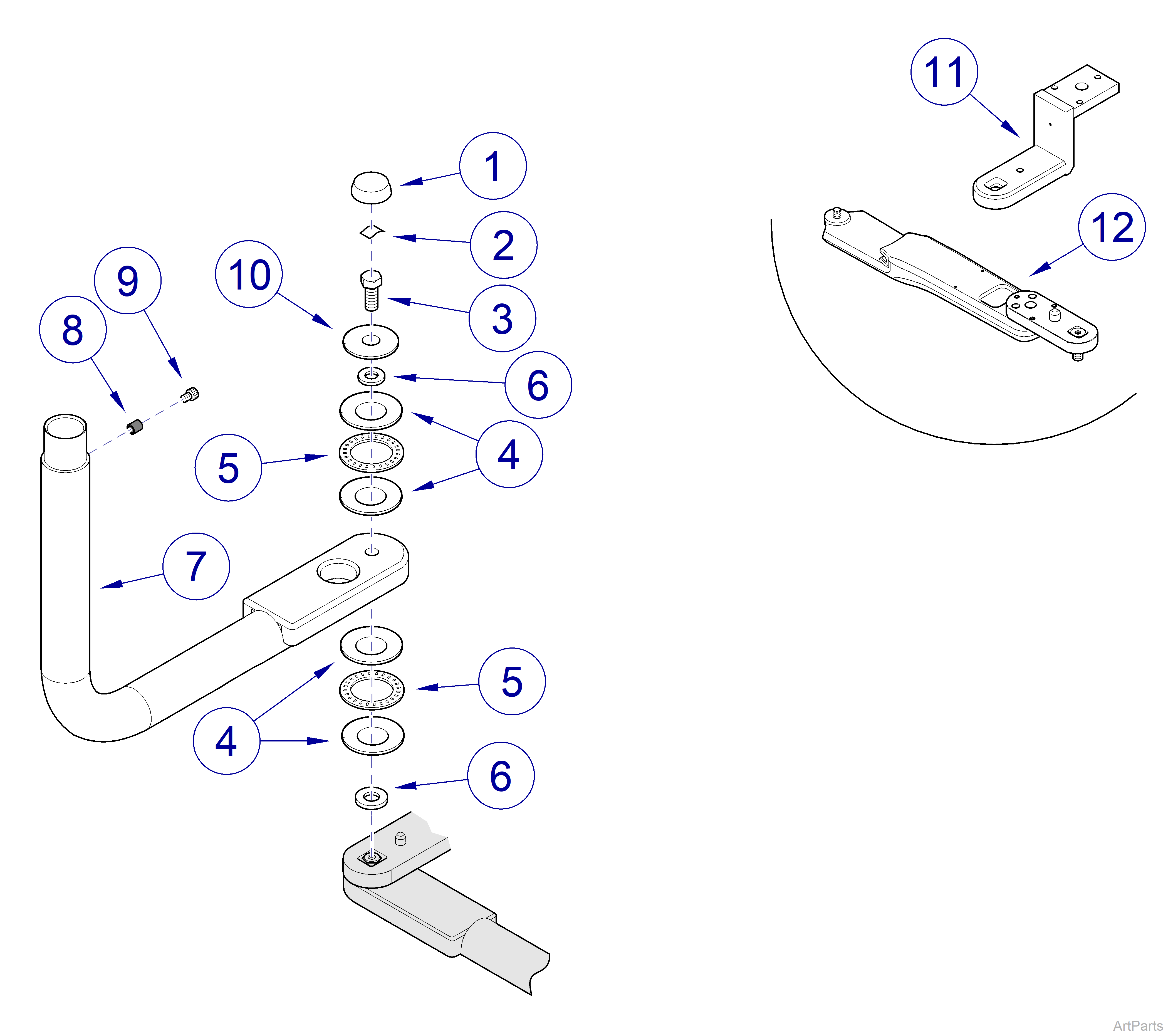

Date Range: Models built from 3/22/2003 to 11/13/2014
|
Accessory Number |
153698-001 |
153698-002 |
| Serial Number | All | All |
| Used with Models | Ultra Chairs | Knight Chairs |
| 153698-00x LR Lower Monitor Mount Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-1360-00 |
Bolt Cover | NLA |
|
2 |
275184 | Double-sided Tape | AR |
|
3 |
040-0500-29 | Bolt | 1 |
|
4 |
016-0300-03 | Thrust Washer | 4 |
|
5 |
016-0196-04 | Thrust Bearing | 2 |
|
6 |
050-5259-01 | Bearing Spacer - for Ultra chairs only | 2 |
|
7 |
030-1467-50 | Lower Arm | 1 |
|
8 |
053-1187-00 | Screw Cover | 1 |
|
9 |
040-0010-109 | Screw #10-24 x 3/8” | 1 |
|
10 |
050-5259-02 | Bearing Spacer | 1 |
|
11 |
029-3002-00 | Knight Chair Bracket | 1 |
|
12 |
029-2696-00 | Ultra Chair Bracket | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

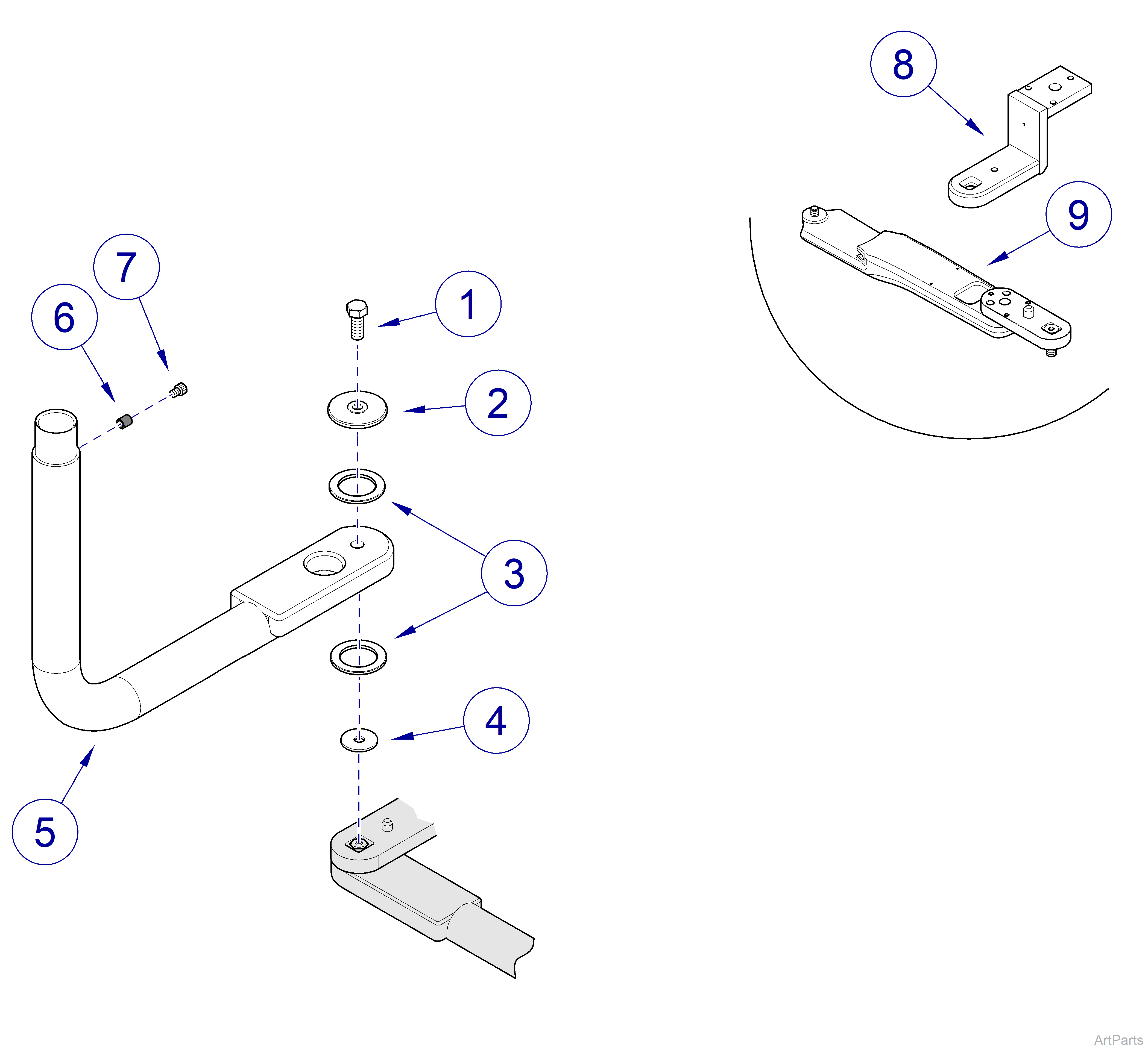

Date Range: models after 11/13/2014
|
Accessory Number |
153698-001 |
153698-002 |
| Serial Number | All | All |
| Used with Models | Ultra Chairs | Knight Chairs |
| 153698-00x LR Lower Monitor Mount Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0500-29 | Bolt | 1 |
|
2 |
057-0971-02-216 |
Cap | NSS |
|
3 |
Greased Bearing Kit | 1 | |
|
4 |
050-5259-03 | Bearing Spacer | 1 |
|
5 |
030-1467-50 | Lower Arm | 1 |
|
6 |
053-1187-00 | Screw Cover | 1 |
|
7 |
040-0010-109 | Screw #10-24 x 3/8” | 1 |
|
8 |
029-3002-00 | Knight Chair Bracket | 1 |
|
9 |
029-2696-00 | Ultra Chair Bracket | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
